5083 Aluminum Alloy

5083 aluminum alloy is a high magnesium alloy with good strength, excellent corrosion resistance and weldability, good weldability, polishability, and poor machinability.

Table of Contents
  1. 5083 Aluminum Features
  2. Haomei Aluminum 5083 Aluminum Hot Products
  3. 5083 Aluminum Product Forms
  4. 5083 Aluminum Mechanical Properties
  5. 5083 Aluminum Chemical Composition
  6. 5083 Aluminum Typical Uses
  7. 5083 Aluminum Latest Order
  8. 5083 Aluminum Related Topics
  9. Related Questions for 5083 Aluminum
  10. Popular 5083 Aluminium Blogs
  11. Aluminium Alloy Table

Note: 5083 aluminum alloy is not recommended for use at temperatures above 65 °C.

Alloy 5083 is commonly used in cryogenic applications because of its ability to cool to -195°C. At this temperature, the alloy has a 40% increase in ultimate tensile strength, a 10% increase in yield strength, and exhibits excellent fracture toughness at this temperature.

5083 Aluminum Features

  • Excellent resistance to seawater and industrial chemicals
  • High resistance to stress corrosion cracking
  • 5083 aluminum is not heat treatable
  • Excellent performance at low temperatures

Haomei Aluminum 5083 Aluminum Hot Products

  • High plasticity and corrosion resistance
  • Cannot be strengthened by heat treatment
  • Good plasticity during semi-cold work hardening
  • Low plasticity during cold work hardening

5083 Aluminum Product Forms

5083 aluminum is available in a variety of forms, such as sheet, plate and profile.

Product Form Common Applications
5083 Aluminum Plates Marine construction, aerospace components, structural uses
5083 Aluminum Sheets Automotive panels, roofing, general fabrication

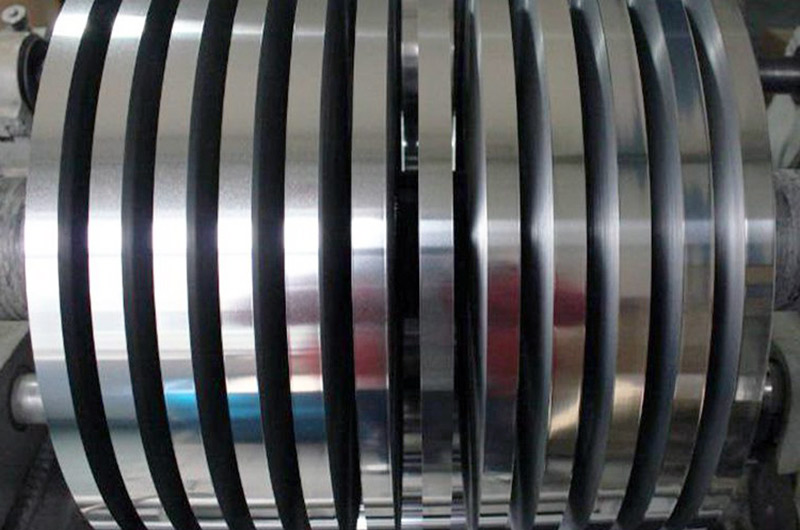

5083 Aluminum Strips Trim, edging, narrow structural components
5083 Aluminum Coils Roofing, cladding, industrial applications
5083 Aluminum Pattern Plates Flooring, decorative panels, aesthetic applications
5083 Aluminum Extrusions Structural components, architectural applications
5083 Aluminum Forgings Critical components in aerospace, marine, and heavy industries
5083 Aluminum Bars and Rods Structural support, fasteners, general components
5083 Aluminum Welded Assemblies Shipbuilding, construction, other welded structures
5083 Aluminum Die-Cast Parts Complex shapes for various applications
5083 Aluminum Castings Diverse applications depending on the casting process
5083 Aluminum Powder Complex components and alloys

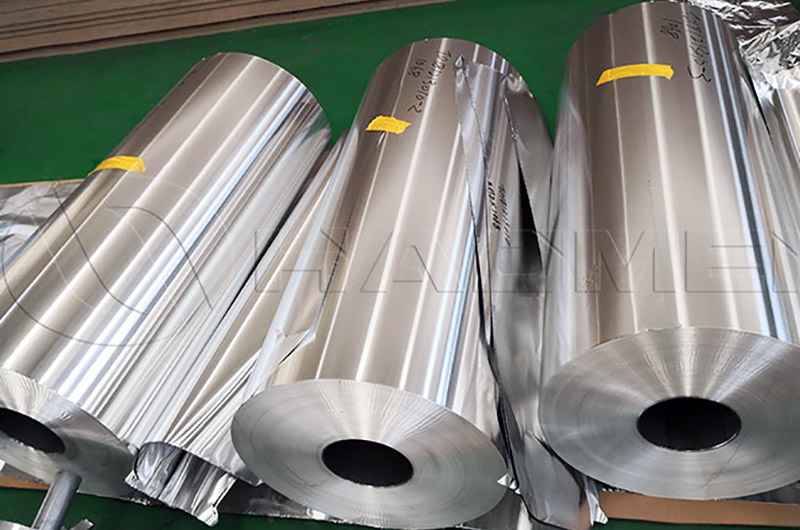

5083 Aluminum Foils Packaging, insulation, reflective surfaces
5083 Aluminum Composite Panels Cladding, architectural applications
5083 Aluminum Tubes and Pipes Heat exchangers, fluid transport, structural components
5083 Aluminum Checked Plate Flooring, stairs, industrial platforms
5083 Aluminum Tread Plate Truck beds, walkways, ramps
5083 Aluminum Diamond Plate Industrial flooring, decorative panels, stairs

5083 Aluminum Mechanical Properties

  • Tensile Strength: 275 MPa or more
  • Yield Strength: 125 MPa or more
  • Elongation: 12% or more (in 50mm or 2 inches)

5083 Aluminium Alloy

5083 Aluminum Chemical Composition

  • Aluminum (Al): Balance (majority)
  • Magnesium (Mg): 4.0% to 4.9%
  • Manganese (Mn): 0.40% to 1.0%
  • Chromium (Cr): 0.05% to 0.25%
  • Iron (Fe): 0.0% to 0.4%
  • Copper (Cu): 0.1% max
  • Zinc (Zn): 0.25% max
  • Titanium (Ti): 0.15% max
  • Other Elements: Each 0.05%, Total 0.15%

5083 Aluminum Typical Uses

  • Marine applications (shipbuilding)
  • Transportation (body)
  • pressure vessel
  • offshore structures
  • General engineering

5083 aluminum is commonly used in ships, ships, vehicle materials, automobile and aircraft plate welding parts, pressure vessels that require strict fire protection, refrigeration devices, television towers, drilling equipment, transportation equipment, missile components, armor, etc.

5083 Aluminum Latest Order

  • 5083 O/H111/H32 Aluminum Sheet for Auto Body
  • Mexico 5083 O H111 H116 H321 Marine Grade Aluminum Plate
  • Malaysia 5083 O H321 Oil Tanker Aluminum Plate
  • 5083 O/H32/H111 Aerospace Aluminum Sheet Plate
  • 5083 H131 H136 H116 H321 Aluminum Armor Plate
  • 5083 O/H111/H112/H32 Aerospace Grade Aluminum Tube
  • 5083 Aluminum Alloy Armor
  • 5083 Marine Grade Aluminum Hexagon Bar
  • 5083 O H112 Marine Grade Aluminum Round Bars
  • 5083 O/H111/H32 Aerospace Grade Aluminum Bar
  • 5083 Forged Aluminum Alloy Armor Sheet
  • 5083 Aluminum Pipe
  • 5083 O H112 Marine Aluminum Square Bar
  • 5083 aluminium alloy
  • 5083 aluminium
  • 5083 aluminium data sheet
  • 5083 aluminium nz
  • 5083 aluminium bending
  • 5083 aluminium welding
  • 5083 aluminium machining
  • 5083 aluminium plate price
  • 5083 aluminium folding
  • 5083 aluminium grade
  • What is Aluminium grade 5083?
  • What is the difference between Aluminium 6061 and 5083?
  • What is equivalent to Aluminium 5083?
  • What is the difference between 5086 and 5083 aluminum?

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176
