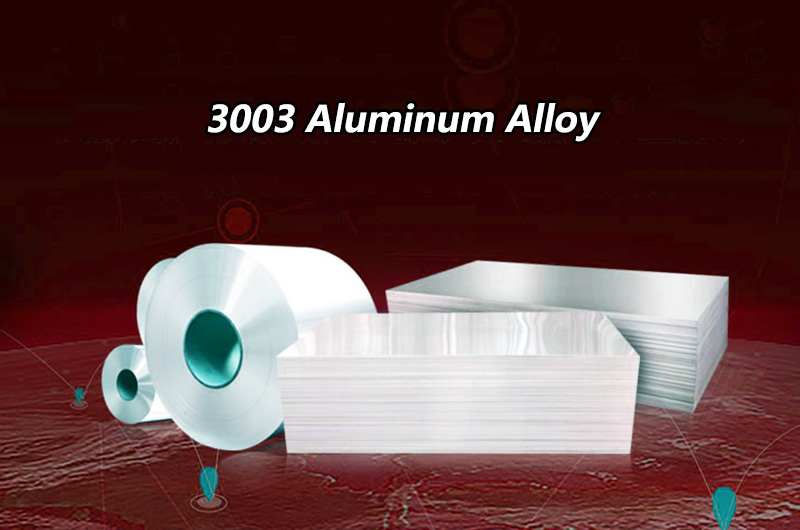

3003 Aluminum Alloy

3003 is an AL-Mn alloy, which is the most widely used anti-rust aluminum. The strength of this alloy is not high (slightly higher than industrial pure aluminum).

Table of Contents
  1. 3003 Aluminum Alloy Features
  2. 3003 Aluminum Alloy Processing Precautions
  3. Haomei Aluminum 3003 Aluminum Hot Products
  4. 3003 Aluminum Product Forms
  5. 3003 Aluminum Alloy uses
  6. Eq to 3003 Aluminum
  7. 3003 Aluminum Alloy Corresponding Brand Standards
  8. 3003 Aluminum Alloy Mechanical Properties
  9. 3003 Aluminum Chemical Composition
  10. 3003 Aluminum Processing Temperature
  11. 3003 Aluminum Chemical Properties
  12. Related Questions for 3003 Aluminum
  13. 3003 Aluminum Related Searches
  14. Recent Customer Hot Inquiries for 3003 Aluminum
  15. Popular 3003 Aluminium Blogs
  16. Aluminium Alloy Table

3003 Aluminum Alloy Features

  • High plasticity in the annealed state
  • Good plasticity during semi-cold work hardening
  • The plasticity is low during cold work hardening.
  • Good corrosion resistance, good weldability, medium strength, poor machinability

3003 Aluminum Alloy Processing Precautions

3003 Aluminum Alloy cannot be strengthened by heat treatment, so cold working methods are used to improve its mechanical properties.

3003 Aluminum is usually rolled and extruded, but not usually forged. As a wrought alloy it is not used in casting.

Haomei Aluminum 3003 Aluminum Hot Products

3003 Aluminum Product Forms

Aluminum alloy 3003 is a popular material known for its excellent corrosion resistance and good workability. Here are some common product forms of 3003 aluminum:

1. 3003 Aluminum Sheet and Plate

Aluminum 3003 is widely available in sheet and plate forms. These can be used for a variety of applications, including roofing, cladding, and general sheet metal work.

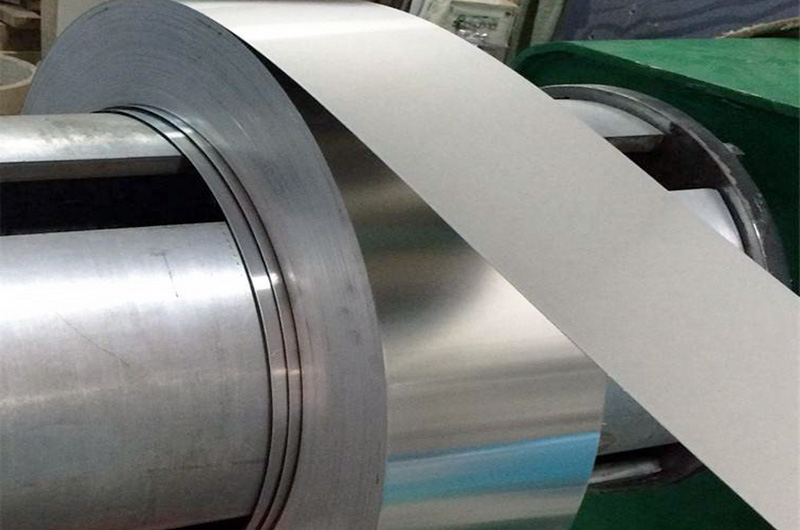

2. 3003 Aluminum Coil

Aluminum 3003 is also produced in coil form, which is convenient for various manufacturing processes such as roll forming, stamping, and bending. Coils are commonly used in the production of gutters, downspouts, and other building components.

3. 3003 Aluminum Tread Plate

Tread plate, also known as diamond plate, is a textured sheet with raised diamond or linear patterns. It provides slip resistance and is often used for flooring, stairs, and other applications where traction is important.

4. 3003 Aluminum Extrusions

Aluminum 3003 can be extruded into various shapes and profiles, making it suitable for applications such as window frames, door frames, and other structural components.

3003 Aluminum Product Forms

5. 3003 Aluminum Foils

Thin aluminum foils made from alloy 3003 are used in packaging, insulation, and other applications where a lightweight, flexible material with good barrier properties is required.

6. 3003 Aluminum Wire

Aluminum wire made from 3003 alloy is used in various applications, including electrical wiring and conductors.

7. 3003 Aluminum Tube and Pipe

Aluminum 3003 is available in tube and pipe forms, suitable for applications where lightweight corrosion-resistant tubing is required.

8. 3003 Aluminum Forgings

While less common, aluminum 3003 can also be used in forging applications for specialized components.

3003 Aluminum Alloy uses

  • kitchen utensils
  • gutter
  • Downspouts
  • roof
  • siding
  • heat sink
  • Fuel tank, gasoline or lubricant lines
  • Various liquid containers and other small load parts made by deep drawing
  • Food and chemical product handling and storage equipment
  • Tanks and tanks for transporting liquid products, various pressure vessels and pipes made of thin plates
  • General utensils, cosmetic boards
  • Photocopier roller
  • Ship materials

Eq to 3003 Aluminum

Alternative names include 3.0517 and A93003.

3003 aluminum and its various states comply with ISO standard 6361 and ASTM standards B209, B210, B211, B221, B483, B491, and B547.

3003 Aluminum Alloy Corresponding Brand Standards

  • National standard: 3003 GB/T 3190-1996
  • ISO: AlMn1Cu ISO 209.1-1989
  • Japanese standard: A3003 JIS H4000-1999 JIS H4100-1999
  • Non-standard: 31000 IS 736-2001
  • Russian standard: AMu/1400 FOCT4785-1974
  • EN:EN AW-3003/AlMn1Cu EN 573-3-1994
  • German standard: AlMnCu/3.0517 DIM1725-1-1986
  • French standard: 3003 (A-M1) NFA50-411 NFA50-451
  • British Standard: 3103 (N3) BS 1470-1988
  • American Standard: 3003/A93003 AA/UNS

3003 Aluminum Alloy Mechanical Properties

  • Tensile strength σb (MPa) 142-178
  • Conditional yield strength σ0.2 (MPa) ≥ 115

3003 Aluminum Chemical Composition

The alloy composition of 3003 aluminum is:

  • Aluminum: 96.8 to 99%
  • Copper: 0.05 to 0.20%
  • Iron: 0.7% max
  • Manganese: 1.0 to 1.5%
  • Silicon: 0.6% max
  • Zinc: 0.1% max
  • Residuals: 0.15% max

3003 Aluminum Processing Temperature

The homogenizing annealing temperature is 590~620℃, the hot rolling temperature is 480~520℃, the extrusion temperature is 320~480℃, the typical annealing temperature is 413℃, air cooling.

3003 Aluminum Chemical Properties

Corrosion resistance: The corrosion resistance of 3003 aluminum alloy is very good, close to the corrosion resistance of industrial pure aluminum, and has good corrosion resistance to the atmosphere, fresh water, sea water, food, organic acids, gasoline, neutral inorganic salt water solutions, etc. , the corrosion resistance in dilute acid is also very good.

In the cold deformation state, 3003 aluminum alloy has a tendency of spalling corrosion. The greater the deformation, the more serious the spalling. Because the color is uneven after anodizing, anodizing is generally not performed.

  • What is 3003 Aluminum alloy used for?
  • What is the difference between 3003 and 6061 aluminum?
  • Is 3003 aluminum food safe?
  • What is the primary alloying element of 3003?
  • 3003 aluminum alloy properties
  • 3003 aluminum vs 6061
  • 3003 aluminum melting point
  • what is 3003 aluminum used for
  • 3003 aluminum tube
  • aluminum 3003-h14 data sheet
  • 3003 aluminum cookware
  • aluminum 3003 mechanical properties
  • 3003 aluminum sheets
  • 3003 aluminum thermal conductivity

Recent Customer Hot Inquiries for 3003 Aluminum

  • 3003 H18 Aluminum Corrugated Preprinted Sheet
  • 3003 Conductive Aluminum Tubular Buspipe
  • 3003 Aluminum Foil for Pet Food Container
  • 3003 Aluminum Rivets Wire
  • 3003 Cold Drawn Aluminum Tubing
  • 3003 O H14 H16 H18 Aircraft Aluminum Tube
  • 3003 Cold Finished Aluminum Bar
  • 3003 Cold Drawn (Rolled) Seamless Tubes
  • 3003 PCB Aluminum Entry Sheet
  • 3003 Aluminum Foil for Container
  • 3003 4343 H14/H16 Auto Brazing Clad Foil
  • EN-AW 3003 Aluminum Sheet Plate
  • 3003 Oil Tanker Aluminum Tread Checkered Plate
  • 3003 H112 Automotive Aluminum Tube Coil
  • 3003 T O H14 Aerospace Grade Aluminum Sheet Plate
  • 3003 Power Battery Liquid Cold Board
  • 3003 Aerospace Aluminum Bar Rod
  • 3003 Aluminum Coil for Power Battery Shell

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176
