1050 Aluminum Alloy

1050 Aluminum has higher thermal conductivity and lower mechanical strength than other alloys.

Table of Contents
  1. Haomei Aluminum 1050 Aluminum Hot Products
  2. 1050 Aluminum Processing Precautions
  3. 1050 Aluminium Typical Applications
  4. 1050 Aluminum Product Forms
  5. Eq to 1050 Aluminum
  6. 1050 Aluminum Heat Treatment
  7. 1050 Aluminum Chemical Composition
  8. Customer Recent Orders Regarding 1050 Aluminum
  9. Related Questions for 1050 Aluminum
  10. 1050 Aluminum Related Searches
  11. Popular 1050 Aluminium Blogs
  12. Aluminium Alloy Table

Aluminum alloy 1050 is industrial pure aluminum with high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, but low strength and is easy to withstand various pressure processing, stretching and bending.

1050 Aluminum has higher thermal conductivity and lower mechanical strength than other alloys.

Haomei Aluminum 1050 Aluminum Hot Products

1050 Aluminum Processing Precautions

  • Heat treatment of 1050 aluminum cannot enhance the machinability.
  • 1050 aluminum can be gas welded, hydrogen atomic welded and contact welded, but is not easy to braze.
  • 1050 aluminum alloy is not used for castings.
  • 1050 aluminum is typically formed by extrusion or rolling.
  • 1050 aluminum can be strengthened by cold working but not by heat treatment.

1050 Aluminium Typical Applications

  • 1050 aluminum alloy for manufacturing radiator
  • 1050 Aluminum for electrical
  • 1050 Aluminum for chemical industry

1050 Aluminium Alloy

1050 Aluminum Product Forms

Aluminum alloy 1050 is a popular grade that belongs to the commercially pure aluminum family. It is known for its excellent corrosion resistance, high thermal conductivity, and good electrical conductivity. Here are some common product forms of 1050 aluminum:

1. 1050 Aluminum Sheet and Plate

1050 aluminum sheets and plates are widely used in various applications, including construction, automotive components, and household appliances. They are available in different thicknesses and sizes.

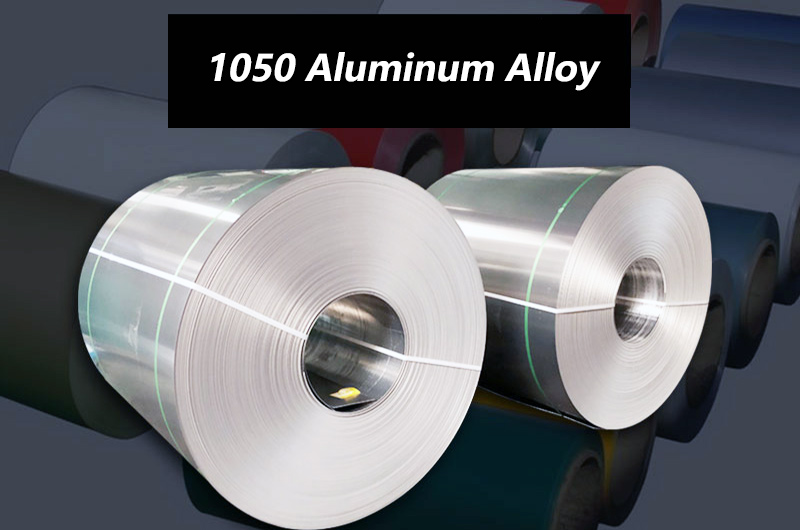

2. 1050 Aluminum Coil

Aluminum coils made from alloy 1050 are used in various industries, such as roofing, cladding, and automotive manufacturing. Coils offer flexibility in shaping and can be easily processed into different forms.

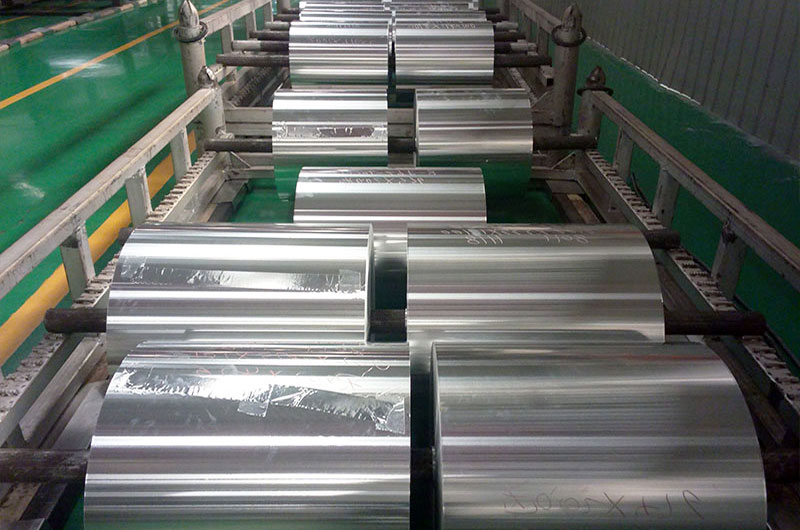

3. 1050 Aluminum Foils

Thin aluminum foils are produced from alloy 1050 and find applications in packaging, insulation, and electrical conductors. They are known for their lightweight and malleability.

4. 1050 Aluminum Strip

Aluminum strips made from 1050 alloy are used in applications where a narrow and elongated shape is required, such as in transformers, decorative trim, and various industrial uses.

5. 1050 Aluminum Extrusions

Extruded aluminum profiles are produced by shaping the alloy through a die. These profiles can be customized for specific applications and are commonly used in construction, transportation, and electronics.

6. 1050 Aluminum Wire

1050 aluminum alloy is also used to produce aluminum wire, which is employed in various electrical applications due to its good electrical conductivity.

7. 1050 Aluminum Forgings

While not as common as other forms, aluminum alloy 1050 can be used for forging applications where specific shapes and properties are required.

8. 1050 Aluminum Tube and Pipe

Aluminum tubes and pipes made from 1050 alloy are used in applications such as heat exchangers, air conditioning systems, and plumbing.

Eq to 1050 Aluminum

Alternative names and designations include: Al99.5, 3.0255 and A91050.

The following standards:

  • ASTM B 491: Standard Specification for Aluminum and Aluminum Alloy Extruded Round Tube for General Applications
  • ISO 6361: Wrought aluminum and aluminum alloy plates, strips and plates

1050 Aluminum Heat Treatment

  • (1) Complete annealing: heating to 390~430℃; depending on the effective thickness of the material, the holding time is 30~120min; cooling in the furnace to 300℃ at a speed of 30~50℃/h, and then air cooling.
  • (2) Rapid annealing: Heating at 350~370℃; depending on the effective thickness of the material, the holding time is 30~120min; air or water cooling.
  • (3) Quenching and aging: quenching at 500~510℃, air cooling; artificial aging at 95~105℃, 3h, air cooling; natural aging at room temperature for 120h

1050 Aluminum Chemical Composition

The alloy composition of 1050 aluminium is:

  • Aluminium: 99.5% min
  • Copper: 0.05% max
  • Iron: 0.4% max
  • Magnesium: 0.05% max
  • Manganese: 0.05% max
  • Silicon: 0.25% max
  • Titanium: 0.03% max
  • Vanadium: 0.05% max
  • Zinc: 0.05% max

Customer Recent Orders Regarding 1050 Aluminum

  • 1050 H18 Aluminum Corrugated Preprinted Sheet
  • 1050A Aerospace Aluminum Sheet Plate
  • 1050 CTP Sheet Aluminum Substrate for Printing
  • 1050 3C Digital Aluminum Sheet Strip
  • 1050 Aerospace Aluminum Wire
  • 1050/1050A O Automotive Aluminium Embossed Heat Shield Sheet
  • 1050 Aluminum Rod for Fasteners
  • 1050 Aluminum Coil for Power Battery Shell
  • 1050 H18 Aluminum Foil for Lithium-Ion Battery
  • 1050 Aluminum Wire Rod for Electrical Applications
  • 1050 Aluminum Sheet Plate
  • 1050 Pre-Sensitized Plate Substrat
  • 1050 Aluminum Foil for Lacquered EOE POE Lid
  • What is Aluminium alloy grade 1050?
  • What is the difference between 1050 and 3003 aluminum?
  • What is the difference between aluminum 1050 and 1350?
  • What is the difference between aluminum 1100 and 1050?
  • 1050 aluminum coil
  • 1050 aluminum sheet
  • 1050 aluminum
  • 1050 aluminum plate
  • 1050 aluminum foil
  • 1050 aluminum suppliers
  • 1050 aluminum scrap price
  • 1050 aluminum machinability
  • 1050 aluminum material properties

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176
