5454 Aluminum Alloy

5454 aluminum alloy is a deformed aluminum alloy belonging to the 5xxx series, which is characterized by its magnesium content. Like other alloys in this family, 5454 combines strength, formability and corrosion resistance.

Table of Contents
  1. 5454 Aluminum Properties
  2. Haomei Aluminum 5454 Aluminum Hot Products
  3. 5454 Aluminum Alloy Product Forms
  4. 5454 Aluminum Chemical Composition
  5. 5454 Aluminum Physical Properties
  6. 5454 Aluminum Mechanical Properties
  7. Newest Order for 5454 Aluminium
  8. Related Questions for 5454 Aluminum
  9. Aluminium Alloy Table

The strength of 5454 anti-rust aluminum is about 20% higher than that of 5052. Its characteristics are roughly the same as 5154, but its corrosion resistance in harsh environments is better than 5154.

5454 Aluminum Properties

  • 5454 aluminum can be formed by rolling, extruding and forging
  • Forging is not common
  • but cannot be cast
  • 5454 aluminum can be cold worked to produce a stronger but less ductile state
  • Usually uncoated

Haomei Aluminum 5454 Aluminum Hot Products

5454 Aluminum Alloy Product Forms

Product Form Use
5454 Aluminum Sheet Construction, automotive, marine applications.
5454 Aluminum Plate Structural applications requiring higher strength.

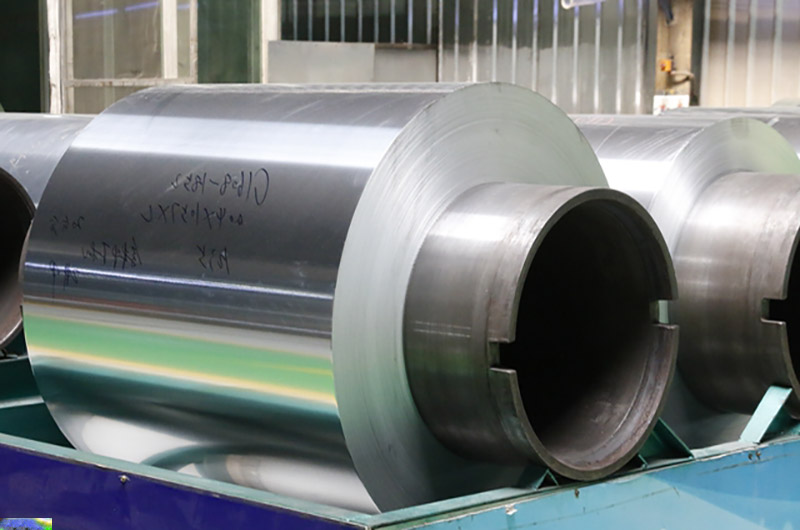

5454 Aluminum Coil Roofing, automotive parts, general manufacturing.
5454 Aluminum Extrusions Structural and architectural applications.
5454 Aluminum Tube Heat exchangers, air conditioning, structural components.
5454 Aluminum Bar/Rod Construction, machinery, transportation industries.
5454 Aluminum Forgings Aerospace, high-stress applications.
5454 Aluminum Wire Electrical wiring, fencing, welding base material.

5454 Aluminum Chemical Composition

  • Magnesium (Mg): 2.4-3.0%
  • Manganese (Mn): 0.50%
  • Chromium (Cr): 0.05-0.20%
  • Iron (Fe): 0.40%
  • Silicon (Si): 0.25%
  • Copper (Cu): 0.10%
  • Zinc (Zn): 0.25%
  • Titanium (Ti): 0.20%
  • Others (each): 0.05%
  • Others (total): 0.15%
  • Aluminum (Al): Balance

5454 Aluminium Alloy

5454 Aluminum Physical Properties

  • Density: 2.66 g/cm³ (at 20°C)
  • Melting Range: 635-645°C

5454 Aluminum Mechanical Properties

  • Tensile Strength (at room temperature): 245 MPa
  • Yield Strength (at room temperature): 140 MPa
  • Elongation: 20%

Newest Order for 5454 Aluminium

  • 5454 H34 H112 O Aerospace Grade Aluminum Sheet plate
  • 5454 Marine Grade Aluminum Round Bar
  • 5454 Marine Grade Aluminum Sheet Plate
  • 5454 O H111 Oil Tanker Aluminum Sheet Plate
  • 5454 H112 Automotive Aluminum Extrusion Profile
  • Marine Grade 5454 Aluminum Hexagonal Bar
  • 5454 Marine Grade Aluminum Square Bars
  • 5454 Aluminum Alloy Round Wire for Cable Shielding
  • 5454 Aluminum Related Searches
  • 5454 grade aluminium
  • 5454 aluminium
  • 5454 aluminium density
  • 5454 aluminium yield strength
  • 5454 aluminium uses
  • aluminium 5454 properties
  • aluminium 5454 h32
  • aluminium 5454 h111
  • aluminium alloy 5454
  • aluminium alloy grade 5454
  • What is 5454 grade aluminum?
  • What is the composition of 5454 aluminum alloy?
  • What is 5454 metal material?
  • What is the toughest Aluminium alloy?

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176
