3003 Aluminum Tread Plate

Excellent anti-skid performance Strictly control the pattern depth and pattern spacing

Production and testing are carried out in strict accordance with the standards to ensure that the quality and performance of aluminum products meet the requirements.

Table of Contents
  1. 3003 Aluminum Tread Plate Specifications
  2. 3003 Aluminum Tread Plate Mechanical Properties
  3. 3003 Aluminum Tread Plate Product Quality
  4. Typical 3003 Aluminum Diamond Plate
    1. 3003-H22 Aluminum Diamond Tread Plate
    2. Aluminum Diamond Tread Plate 3003-H24
    3. 2 Bar 3003 Aluminum Tread Plate
    4. 5 Bar 3003 Aluminum Tread Plate
  5. 3003 Aluminum Tread Plate Application
    1. 3003 Aluminum Floor Plate/3003 Aluminum Stair Treads Sheet
    2. 3003 Aluminum Treads Sheet Truck/Trailer Beds
    3. 3003 Aluminum Checker Plate for Decorative
    4. Other Uses
  6. 3003 Aluminum Chemical Composition

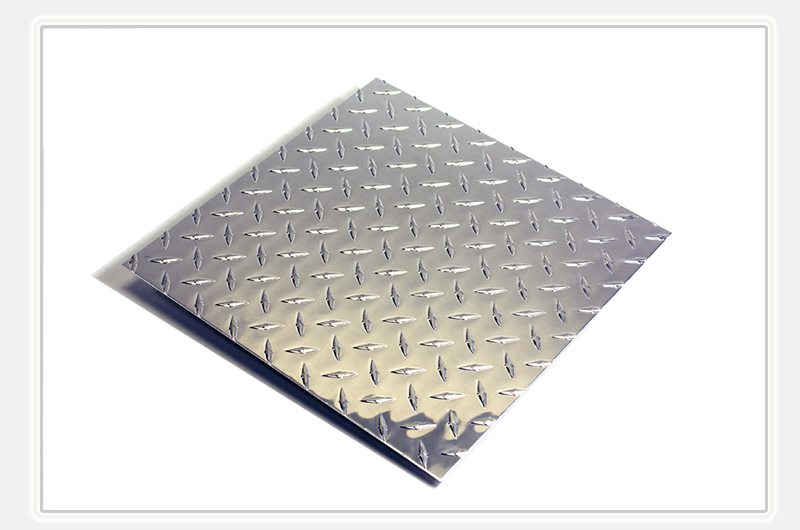

3003 Aluminum Tread Plate is Aluminum checker plate or aluminum diamond plate, made of aluminum alloy 3003. It features a raised diamond pattern on one side for slip resistance and enhanced traction.

3003 Aluminum Tread Plate

3003 aluminum alloy pedal is an aluminum alloy that is widely used for its anti-slip properties. It is commonly used in applications requiring high grip, such as stairs, industrial floors and truck floors

3003 Aluminum Tread Plate Specifications

3003 aluminum plate is usually used to make Aluminum Tread Plate or aluminum diamond plate, which has excellent corrosion resistance, good formability and moderate strength.

3003 Aluminum Tread Plate Common Thicknesses

Product Thickness (mm)
3003 Aluminum Tread Plate 1.2
3003 Aluminum Tread Plate 1.5
3003 Aluminum Tread Plate 2
3003 Aluminum Tread Plate 2.5
3003 Aluminum Tread Plate 3
3003 Aluminum Tread Plate 4
3003 Aluminum Tread Plate 5
3003 Aluminum Tread Plate 6

3003 Aluminum Tread Plate Common Widths

Product Width (mm)
3003 Aluminum Tread Plate 1000
3003 Aluminum Tread Plate 1200
3003 Aluminum Tread Plate 1220
3003 Aluminum Tread Plate 1250

3003 Aluminum Tread Plate Common Lengths

Product Length (mm)
3003 Aluminum Tread Plate 2000
3003 Aluminum Tread Plate 2440
3003 Aluminum Tread Plate 2500
3003 Aluminum Tread Plate 3000
3003 Aluminum Tread Plate 6000

These specifications can be customized according to different application requirements.

  • Thicker aluminum checker plates are suitable for applications requiring greater strength and load carrying capacity.
  • Smaller thicknesses are suitable for applications requiring light weight, easy processing and installation.

At the same time, different widths and lengths can be selected and cut according to specific needs.

3003 Aluminum Tread Plate Mechanical Properties

Property Value Units
Tensile Strength 130-180 MPa (19, 000-26, 000 psi)
Yield Strength 115 MPa (17, 000 psi)
Elongation at Break 10-15 %
Hardness (Brinell) 40

3003 Aluminum Tread Plate Product Quality

  • Corrosion resistance : ensure the corrosion resistance of 3003 patterned aluminum, especially for many chemicals and sea water.
  • Anti-slip performance : The anti-slip performance of 3003 patterned aluminum plate is strong enough to ensure the safety of its application. The product has been tested without issue for applications requiring anti-slip features such as treads, stairs, walkways, etc.
  • Strength and hardness : The strength and hardness of the 3003 patterned aluminum plate have reached the standard.
  • Surface quality : The flatness of the surface of the patterned aluminum plate meets the user's standard, and there is no scratch on the surface.

3003 Aluminum Tread Plate Product Quality

Typical 3003 Aluminum Diamond Plate

The chemical composition of 3003 H22 patterned aluminum plate and 3003 H24 patterned aluminum plate is the same, but the state after work hardening is different. The H22 condition is a semi-hard condition, while the H24 condition is a full-hard condition.

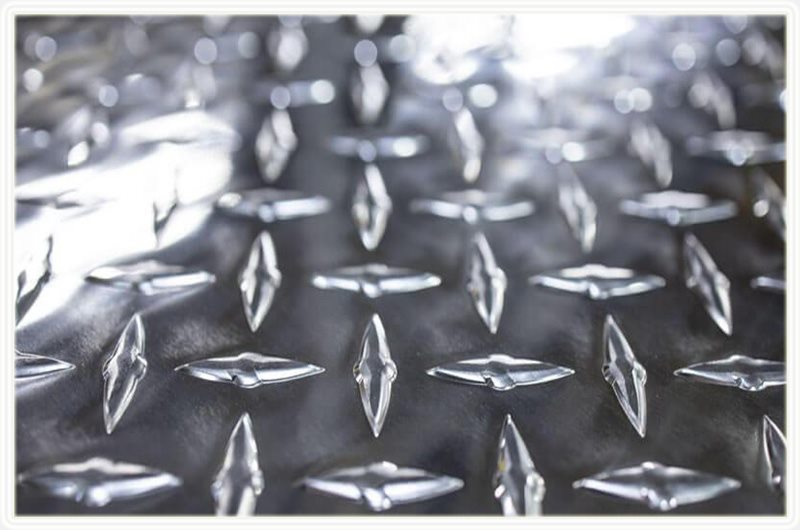

3003-H22 Aluminum Diamond Tread Plate

  • 3003 H22 patterned aluminum sheet has better formability and can be bent, formed and deep drawn more easily.
  • It is commonly used in applications where strength and formability are required, such as ship decks, vehicle bed panels, luggage racks, pedals, etc.

3003-H22 Aluminum Diamond Tread Plate

Aluminum Diamond Tread Plate 3003-H24

  • The 3003 H24 patterned aluminum plate has higher strength and hardness. Due to its higher hardness, the aluminum plate in the H24 state is more difficult to process than the aluminum plate in the H22 state.
  • Suitable for applications requiring higher strength and abrasion resistance, such as truck bed decks, industrial floors, etc.

Aluminum Diamond Tread Plate 3003-H24

Properties 3003-H22 aluminum tread plate 3003-H24 aluminum tread plate
Tensile Strength 120-160 MPa 145-195 MPa
Yield Strength 85-120 MPa 145-195 MPa
Eelongation 10-16% 2-8%
Brinell Hardness 40-60 HB 50-70 HB

The choice of 3003 H22 patterned aluminum plate or 3003 H24 patterned aluminum plate should be determined according to specific application requirements.

  • If you need better formability, you can choose H22 state;
  • If higher strength and wear resistance are required, the H24 temper can be selected.

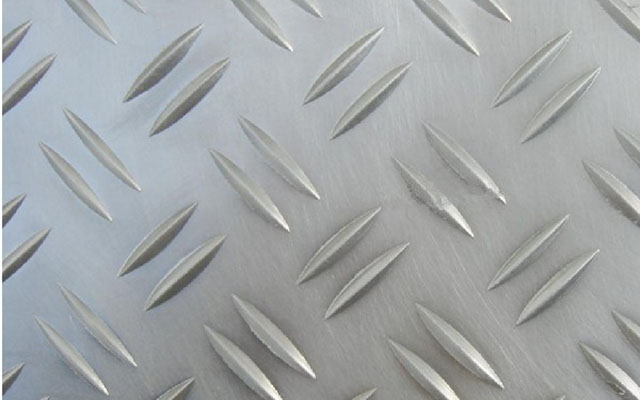

2 Bar 3003 Aluminum Tread Plate

2 Bar features two raised bars arranged in a parallel pattern on the surface of the plate.

  • Status : H14, H16, H18, H22, H24, H26
  • Advantages : 2-bars provide good slip resistance while also providing a more subtle look than 5-bars. It's also easier to clean and maintain than some other pedal patterns.
  • Applications : It is often used for decorative purposes, applications where slip resistance is important but finer patterns are required. Some common applications include truck beds, trim and flooring in residential and commercial environments.

2 Bar 3003 Aluminum Tread Plate

5 Bar 3003 Aluminum Tread Plate

This pattern features five raised bars arranged in a diagonal pattern across the surface of the board.

  • Temper : Usually produced in H22 and H24 tempers, which offer good strength and durability while also being easy to work and form. The strength and hardness of the H24 temper is slightly higher than that of the H22 temper, making it ideal for applications requiring higher strength.
  • Advantages : 5 Bar provides excellent slip resistance and durability, making it ideal for applications where safety and durability are important. It also has a unique appearance that can enhance the visual appeal of a product or structure.
  • Applications : It is commonly used on floors, stairs and other applications where slip resistance is a concern.

3003 Aluminum Tread Plate Application

3003 checkered aluminum plate is a very versatile aluminum plate material, widely used in the following fields :

3003 Aluminum Floor Plate/3003 Aluminum Stair Treads Sheet

  • Pattern type : 2 bar, 5 bar, Diamond
  • Advantages : Excellent skid resistance and wear resistance
  • Application : It can be used to manufacture industrial floors, such as ship decks, workshop floors, steps, walkways, etc.

3003 Aluminum Stair Treads Sheet

3003 Aluminum Treads Sheet Truck/Trailer Beds

  • Thickness : 0.8mm- 10mm
  • Aluminum Treads Sheet pattern type : can be customized to meet specific size and shape
  • Application : 3003 aluminum pattern plate can be used to manufacture truck bed panels, trailer bed panels, luggage racks, vehicle pedals, foot pedals, etc., because of its anti-skid performance, it can ensure the safety of passengers and goods.

3003 Aluminum Treads Sheet Truck/Trailer Beds

3003 Aluminum Checker Plate for Decorative

  • 3003 Aluminum Checker Plate Type : 2 Bar 4017 Aluminum Checker Plate, 5 Bar 3003 Aluminum Checker Plate, 3003 Aluminum Diamond Plate and other decorative patterns.
  • Application : Due to its unique texture and surface effect, 3003 aluminum pattern plate can also be used for decoration, such as interior walls, ceilings, cabinet surfaces, etc.

Other Uses

3003 aluminum pattern plate can also be used to manufacture kitchen utensils, electronic products, furniture, building materials, etc.

In conclusion, 3003 aluminum checkered plate has good strength, corrosion resistance and skid resistance, and is suitable for a wide range of applications.

3003 Aluminum Chemical Composition

Element Minimum Maximum
Silicon (Si) 0.60% -
Iron (Fe) 0.70% -
Copper (Cu) 0.05% 0.20%
Manganese (Mn) 1.00% 1.50%
Zinc (Zn) 0.10% -
Other elements - 0.15% max
Aluminum (Al) - Balance
