5052 Aluminum Tread Plate

Uniform thickness Smooth, no scratches

The pattern size and shape on the Aluminum Tread Plate are consistent and uniform. Ensure the anti-slip and durability of the aluminum tread plate.

Table of Contents
  1. 5052 Aluminum Tread Plate Specification
  2. The Pattern Height of 5052 Aluminum Tread Plate
    1. 1.5mm Pattern Height 5052 Aluminum Tread Plate
    2. 2.0mm Pattern Height 5052 Aluminum Tread Plate
    3. 3.0mm Pattern Height 5052 Aluminum Tread Plate
  3. Surface Type 5052 Aluminum Tread Plate
    1. Anodized 5052 Aluminum Tread Plate
    2. Coating 5052 Aluminum Tread Plate
    3. Mirror 5052 Aluminum Tread Plate
  4. Aluminum Tread Plate Quality
  5. Typical 5052 Aluminum Tread Plate
    1. 5052 H22 Aluminum Tread Plate
    2. 5052 H32 Aluminum Tread Plate
    3. 5052 H34 Aluminum Tread Plate
    4. 5052 H114 Aluminum Tread Plate
  6. 5052 Aluminum Tread Plate Application
    1. 5052 Aluminum Tread Plate for Truck Beds and Trailers
    2. 5052 Aluminum Floor and Stairs Plate
    3. Tool Boxes and Storage Tanks
    4. 5052 Marine Grade Aluminum Tread Plate Sheet
    5. Industrial and Architectural Applications

5052 aluminum tread plate is a diamond-shaped aluminum plate made of 5052 aluminum alloy. This alloy is a non-heat treatable alloy known for its high strength, excellent corrosion resistance and good formability.

5052 aluminum tread plate

Characteristic

  • High strength
  • Good corrosion resistance
  • Good formability
  • Not heat treatable
  • Weldable

Feature

  • Raised diamond pattern for slip resistance
  • Polished or surface treatment options available
  • Can be anodized, painted or powder coated for extra protection or decorative purposes.

5052 Aluminum Tread Plate is usually produced in the H22 temper which provides a good balance of strength and formability. The raised diamond pattern on the surface of the sheet provides excellent slip resistance, making it a popular choice for floors, stairs and other safety-conscious applications.

5052 Aluminum Tread Plate Specification

  • Pattern : Diamond, 5 bar
  • Thickness : 1.0-7.0mm
  • Width : 100-1650mm
  • Length : 500-16000mm
  • Status : H22, H24, H32, H34, H112
  • Surface treatment : grinding, anodizing, polishing, color coating
  • Applications : floors, stairs, tool boxes, car bodies, boat building, decorative uses

The Pattern Height of 5052 Aluminum Tread Plate

The pattern height of the 5052 aluminum tread plate refers to the height of the raised pattern on the surface of the plate. The pattern height of aluminum tread plate can vary according to the application, the most common pattern heights of 5052 aluminum tread plate are as follows :

1.5mm Pattern Height 5052 Aluminum Tread Plate

1.5mm is the most common pattern height for 5052 aluminum pattern plate. It provides good slip resistance and is suitable for general purpose applications.

Applications : Flooring, tool boxes and decorative uses.

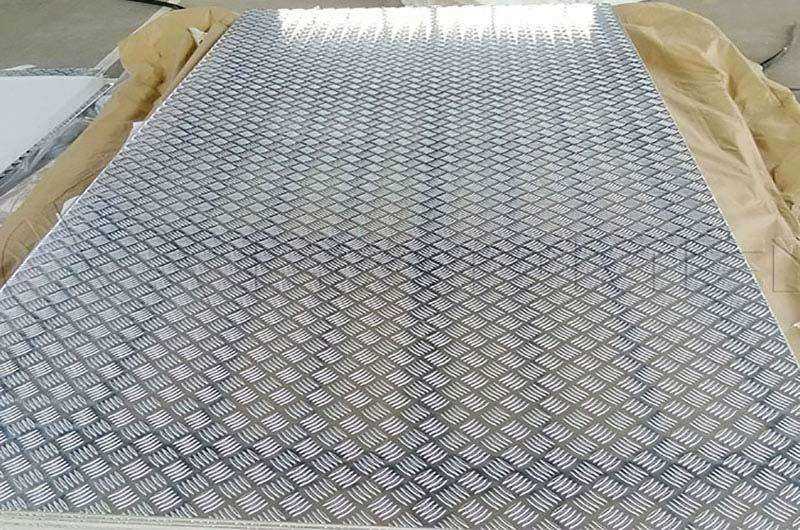

1.5mm Pattern Height 5052 Aluminum Tread Plate

2.0mm Pattern Height 5052 Aluminum Tread Plate

The 2.0mm height provides better slip resistance and is ideal for use in areas that require a high degree of slip resistance.

Applications : ramps, stairs and walkways.

3.0mm Pattern Height 5052 Aluminum Tread Plate

The 3.0mm height provides the highest level of slip resistance for heavy-duty applications where maximum slip resistance is required for safety.

Applications : Industrial floors and ship decks.

Surface Type 5052 Aluminum Tread Plate

5052 aluminum checkered plate can be anodized, coated, mirrored and other surface treatments to improve its appearance, durability and corrosion resistance.

Anodized 5052 Aluminum Tread Plate

Anodizing forms a protective oxide layer on the aluminum surface.

Anodized aluminum treads have a durable, scratch-resistant finish and are available in a variety of colors.

  • Alloy : 5052 H32 , H34
  • Thickness : 0.4mm - 3.0mm
  • Application : Anodized aluminum is commonly used in architectural and decorative applications such as wall panels, window frames and furniture.

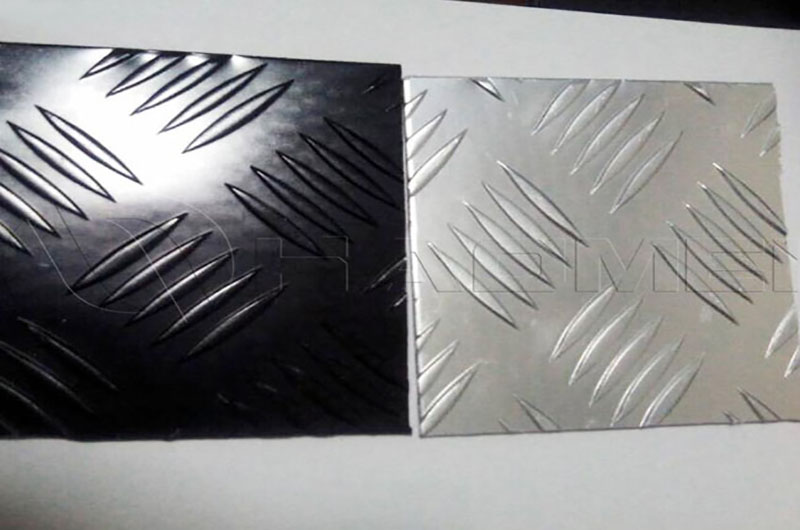

Anodized 5052 Aluminum Tread Plate

Coating 5052 Aluminum Tread Plate

Coating is a surface treatment that involves applying a layer of paint or other material to the surface of aluminum.

Coated aluminum treads have a durable, weather-resistant finish and are available in a variety of colors and finishes.

  • Alloy : 3003, 5052
  • Thickness : 0.8mm - 3.0mm
  • Application : Coated aluminum is commonly used for roofing, wall cladding and signage.

Mirror 5052 Aluminum Tread Plate

Mirror finishing is a surface treatment that involves polishing the surface of aluminum to a mirror-like finish.

  • Application : Mirrored aluminum treads have a highly reflective surface and are commonly used in decorative and architectural applications such as building facades, signage and furniture.
  • Alloy : 5052 H32, H34
  • Thickness : 0.8mm - 3.0mm

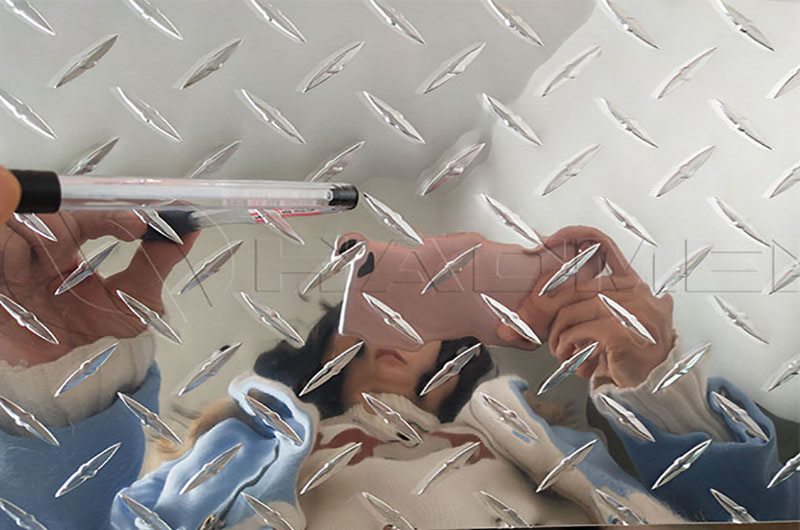

Mirror 5052 Aluminum Tread Plate

The difference between anodized, coated and mirrored 5052 checkered aluminum plates is their surface treatment and application.

Surface Treatment Applications Alloy Used Alloy State
Anodized, Mirror Finish Decorative and architectural 5052, 3003 H32 , H34
Coated Roof and wall cladding

Aluminum Tread Plate Quality

  • Thickness : The surface thickness of Aluminum Tread Sheet is uniform. Any variation in thickness can affect its mechanical properties and render it unstable for its intended use.
  • Surface Finish : Aluminum Tread Sheet has a smooth surface free from scratches, cracks and other defects that may affect its appearance or performance. The smooth surface finish ensures the board is non-slip and durable.
  • Pattern : The pattern size and shape on the Aluminum Tread Plate are consistent and uniform. The pattern of premium treads provides maximum slip resistance and enhances the visual appeal of the treads.
  • Mechanical properties : The mechanical properties of the pedal, such as strength, hardness and formability, are within the specified range for its intended use. This ensures that the plate can withstand the required loads and stresses without deforming or failing.
  • Corrosion Resistance : 5052 Aluminum has good corrosion resistance, especially when used outdoors or in marine environments. A protective coating or anodizing can enhance the corrosion resistance of the sheet and prolong its life.
  • Certifications : Premium 5052 aluminum plate is certified to industry standards such as ASTM, EN or JIS. Certification ensures that the board meets the quality and safety standards required for its intended use.

Typical 5052 Aluminum Tread Plate

5052 H22 Aluminum Tread Plate

5052 H22 aluminum is a strain hardened and partially annealed temper that provides moderate strength and hardness.

Applications : Typically used in applications requiring moderate strength and durability, such as floors and stairs, tool boxes and storage boxes, and architectural applications.

Property Value
Tensile strength 160-215 MPa
Yield strength 85-155 MPa
Elongation 7-10%
Hardness 46-59 HB

5052 H32 Aluminum Tread Plate

5052 H32 aluminum is a strain hardened and stable state that provides good formability and high corrosion resistance.

Applications : It is typically used in applications requiring good formability and corrosion resistance, such as marine applications, chemical processing equipment, and storage tanks.

Property Value
Tensile strength 210-260 MPa
Yield strength 130-180 MPa
Elongation 6-8%
Hardness 60-70 HB

5052 H34 Aluminum Tread Plate

5052 H34 aluminum is a strain hardened and stable state that provides higher strength and hardness than H32.

Applications : It is commonly used in applications requiring higher strength and corrosion resistance, such as pressure vessels and structural components.

Property Value
Tensile strength 230-280 MPa
Yield strength 165-215 MPa
Elongation 5-7%
Hardness 70-80 HB

5052 H114 Aluminum Tread Plate

5052 H114 aluminum is a strain hardened and partially annealed temper that provides higher strength and hardness than H12 or H22.

Applications : It is typically used in heavy-duty applications requiring high strength and durability such as truck chassis and trailers, marine applications, and industrial and construction applications.

Property Value
Tensile strength 215-275 MPa
Yield strength 155-205 MPa
Elongation 4-6%
Hardness 63-73 HB

5052 Aluminum Tread Plate Application

5052 Aluminum Tread Plate for Truck Beds and Trailers

5052 Aluminum Tread Plate provides excellent slip resistance in wet and oily conditions, durable enough to withstand heavy loads and constant wear.

  • Pattern : 5 bar
  • Alloy used : 5052
  • Alloy state : H22
  • Common Sizes : 1/8" Thick, 4' x 8' Dimensions

Aluminum Tread Plate for Truck beds and trailers

5052 Aluminum Floor and Stairs Plate

5052 Aluminum Floor and Stairs Plate provides good slip resistance in all directions, an attractive decorative appearance, even when wet or greasy.

  • Pattern : 2 bar, 3 bar
  • Alloy : 5052
  • Alloy state : H22
  • Common Sizes : 1/16" Thick, 4' x 8' Dimensions

Aluminum Floor and Stairs Plate

Tool Boxes and Storage Tanks

5052 Aluminum checker plate provides good slip resistance in all directions, even when wet or greasy, durable enough to withstand constant use and heavy loads, hides small scratches and scuffs well.

  • Pattern : Diamond, 2 bar
  • Alloy used : 5052
  • Alloy state : H32 or H34
  • Common Sizes : 1/8" Thick, 4' x 8' Dimensions

Tool Boxes and Storage Tanks

5052 Marine Grade Aluminum Tread Plate Sheet

5052 aluminum plate provides excellent slip resistance in wet and oily conditions, durable enough to withstand salt water and constant exposure to the elements.

  • Pattern : Diamond
  • Alloy used : 5052
  • Alloy state : H32 or H34
  • Common Sizes : 3/16" Thick, 4' x 8' Dimensions

Industrial and Architectural Applications

5052 Aluminum Tread Plate provides excellent slip resistance in wet and oily conditions, is durable enough to withstand heavy loads and constant wear, and has a decorative appearance making it suitable for architectural applications as well.

  • Pattern : 5 bar
  • Alloy used : 5052
  • Alloy state : H22 or H32
  • Common Sizes : 1/16" to 1/4" thick, available in a variety of sizes and shapes
