5052 Aluminum Plate Sheet

Common state: H32/H34/O Stable performance

The surface of the 5052 aluminum plate is smooth and smooth, without burrs and bubbles. The mechanical properties have been strictly tested and the product specifications are complete. Customers can rest assured to buy.

Table of Contents
  1. What is 5052 Aluminum?
  2. Common 5052 Aluminum Plate Thickness
    1. 1/4" 5052 Aluminum Plate Sheet
    2. 3/16" Aluminum Sheet Plate 5052
  3. 5052 Aluminum Plate Mechanical Properties
  4. Hot Selling 5052 Aluminum Plate
    1. Aluminum Plate 5052 h32
    2. 5052 h34 Aluminum Plate
    3. Marine Aluminum Plate 5052
    4. 5052 Aluminum Tread Plate
  5. Chemical Composition of 5052 Aluminum Plate
  6. What is 5052 Aluminum Plate Used for?
  7. Aluminum Plate 6061 vs 5052
  8. 5052 Aluminum Plate Supplier

What is 5052 Aluminum?

The main components of 5052 aluminum are aluminum and magnesium. It is a commonly used aluminum alloy material with excellent corrosion resistance, good formability, weldability and mechanical properties.

  • 5052 aluminum plate has very good corrosion resistance, especially in the marine atmosphere. It also has low density and excellent thermal conductivity.
  • 5052 aluminum sheet has excellent finishing qualities and can be easily welded using a variety of techniques.

5052 Aluminum Plate

Among non-heat treatable alloys, 5052 is considered one of the strongest options.

5052 aluminum plate is a non-heat treatable product and is a lightweight material with a semi-smooth surface and a matte polished surface.

Although not heat treatable, aluminum 50502 can be strengthened through the work hardening process (5052-H32). 5052 does not contain copper, which makes it less susceptible to salt water corrosion than copper alloys.

Common 5052 Aluminum Plate Thickness

5052 aluminum plate thickness can be different according to the needs of specific applications, 5052 aluminum sheet thickness range 0.2mm-300mm.

Common 5052 aluminum sheet thicknesses include 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. Recently, customers have frequently consulted about 1/4" 5052 aluminum plate and 3/16 aluminum plate 5052.

Alloy Temper Thickness/Width/Length mm
5052 H32 Aluminum Plate 2.85*1200*2700
5052 H32 Aluminum Plate 0.78*1250*2500
5052 H32 Aluminum Plate 1.2*1220*2440
5052 H32 Aluminum Plate 1.4*1250*2500
5052 H32 Aluminum Plate 1.95*1140*996
5052 H32 Aluminum Plate 2*1220*2440
5052 H32 Aluminum Plate 2.48*1250*2500
5052 H32 Aluminum Plate 2.5*1100*2380
5052 H34 Aluminum Plate 3*1500*1900
5052 H32 Aluminum Plate 3*930*3680
5052 H32 Aluminum Plate 3.94*1000*1777
5052 O Aluminum Plate 1.91*1250*2500
5052 O Aluminum Plate 2.5*900*2600
5052 H114 Aluminum Plate 2.5*1250*2500

1/4" 5052 Aluminum Plate Sheet

1/4" 5052 Aluminum Sheet refers to 1/4" (6.35 mm) thick aluminum sheet, the 1/4" thickness of the sheet makes it suitable for applications requiring a strong and durable material.

Application of 1/4" 5052 Aluminum Sheet :

  • Marine Industry : Hulls, decks and other structures requiring strong and durable materials.
  • Transportation industry : applications such as truck and trailer bodies and other transportation-related structures.
  • Structural and architectural applications : building facades, roofs and siding.
  • Industrial Applications : Machinery components, storage tanks and other equipment requiring strong and durable materials.

3/16" Aluminum Sheet Plate 5052

3/16" Aluminum Plate is a 3/16" (4.76 mm) thick sheet of aluminum made from 5052 aluminum alloy, 3/16" Aluminum Sheet is suitable for applications requiring a lightweight yet strong and durable material. The application of 3/16" 5052 aluminum plate is similar to that of 1/4" 5052 aluminum plate, also in ship hull, truck, construction and industry.

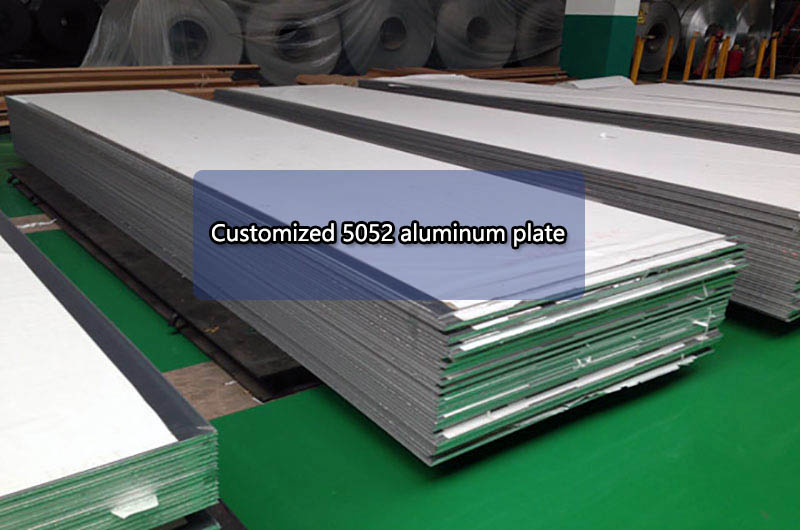

Customized 5052 aluminum plate

The choice between 1/4" 5052 aluminum sheet and 3/16" 5052 aluminum sheet will depend on specific application requirements.

  • 1/4" 5052 aluminum plate is better suited for applications requiring greater strength and durability
  • 3/16" aluminum plate 5052 is better suited for applications requiring lighter weight.

The choice of the appropriate 5052 aluminum sheet thickness should be determined according to specific application scenarios, required strength and cost.

  • For structures that require strength and rigidity, thicker aluminum plate 5052 is usually required.
  • For occasions that require a lightweight design, you can choose a thinner aluminum sheet 5052.

When purchasing 5052 aluminum sheet, the appropriate thickness and size should be selected according to actual needs.

5052 Aluminum Plate Mechanical Properties

The mechanical properties of 5052 aluminum sheet vary depending on the specific temper or condition of the material. The following are some typical mechanical properties of 5052 aluminum plate in different tempering states :

Type Tensile strength
5052 O aluminum plate 68 MPa (10, 000 psi)
5052 H32 aluminum plate 228 MPa (33, 000 psi)
5052 H34 aluminum plate 262 MPa (38, 000 psi)
Type Yield strength
5052 O aluminum plate 28 MPa (4, 000 psi)
5052 H32 aluminum plate 193 MPa (28, 000 psi)
5052 H34 aluminum plate 214 MPa (31, 000 psi)
Type Elongation
5052 O aluminum plate 20%
5052 H32 aluminum plate 12%
5052 H34 aluminum plate 10%

Hot Selling 5052 Aluminum Plate

Aluminum Plate 5052 h32

5052 H32 aluminum plate is a light work-hardened aluminum plate. Compared with 5052 H34 aluminum plate, its plasticity and toughness are better, and it is suitable for applications that require higher shape and bending properties. For example, 5052 H32 aluminum plate is usually selected when it is necessary to manufacture complex structural parts or when bending processing is required.

In addition, when processing and using 5052 H32 aluminum plate, it is also necessary to pay attention to the hardness and plasticity of the material to ensure the performance and service life of the material.

5052 h34 Aluminum Plate

5052 H34 aluminum plate is a work-hardened aluminum plate. Compared with 5052 H32 aluminum plate, its hardness is higher, and it is suitable for applications that require higher strength and corrosion resistance. For example, 5052 H34 aluminum plate is usually selected when it needs to withstand greater pressure or be used in harsh environments.

It should be noted that when using 5052 H34 aluminum sheet, different thicknesses and sizes need to be selected according to specific application conditions to ensure the performance and service life of the material.

5052 h34 Aluminum Plate

5052 H34 aluminum plate and 5052 H32 aluminum plate are common 5052 aluminum alloy materials, which are often used in the manufacture of structural components and shells in the fields of ships, automobiles, aircraft and construction. The main difference between them is hardness level and application scenarios.

5052 H34 aluminum plate and 5052 H32 aluminum plate are different in hardness, plasticity and application scenarios. When choosing, it is necessary to comprehensively consider according to the specific needs and application conditions.

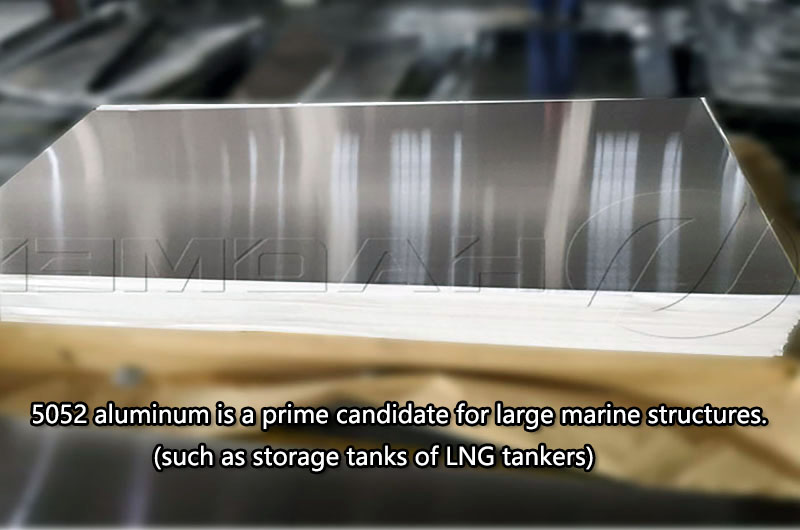

Marine Aluminum Plate 5052

5052 marine aluminum plate has good corrosion resistance, weldability and formability, and is one of the ideal materials for manufacturing ship shells, bulkheads, decks and other components.

The 5052 marine aluminum plate is much lighter than the traditional steel material, which can reduce the weight of the ship and improve the sailing speed and fuel efficiency. At the same time, the 5052 aluminum plate has moderate strength and can withstand the load and vibration of the ship during navigation.

5052 Aluminum Tread Plate

The 5052 patterned aluminum plate refers to the aluminum plate with raised or depressed patterns formed on the surface of the 5052 aluminum alloy material after special processing.

5052 patterned aluminum plate is mainly used in decoration, anti-skid, packaging and other fields. 5052 patterned aluminum sheet can also be used in ships, aviation, automobiles and other fields, such as making ship decks, car wall panels, aircraft floors, etc.

In short, the 5052 patterned aluminum plate has excellent decorative properties and anti-skid properties, and can be used in many fields.

Click to learn more aboutAluminum Tread Plate

Chemical Composition of 5052 Aluminum Plate

Aluminum (Al) 95.70%
Magnesium (Mg) 2.50%
Chromium (Cr) 0.15% - 0.35%
Iron (Fe) 0.4% max
Manganese (Mn) 0.1% max
Silicon (Si) 0.25% max
Zinc (Zn) 0.1% max
Other elements 0.15% max (each), 0.05% max (total)

What is 5052 Aluminum Plate Used for?

5052 aluminum is a common aluminum alloy material that offers good corrosion resistance, weldability, and moderate strength and is suitable for many different applications.

5052 aluminum plates are commonly used in the manufacturing of automobile parts, ships, aircraft fuel tank parts, building materials, electronic product casings, pressure vessels, windproof shutters, refrigerator liners and panels, and other fields.

  • Automobile manufacturing : 5052 aluminum sheet can be used to make automobile shells, doors, frames, chassis and other components. Its good corrosion resistance makes it especially suitable for automobile manufacturing in seaside cities and salt lake areas.
  • Shipbuilding : Because 5052 aluminum has excellent seawater corrosion resistance, it is widely used in shipbuilding, such as hull shells, bulkheads and decks.
  • Building materials : 5052 aluminum plate can be used in building shell, wall panels, roof and ceiling and other parts. The light weight, corrosion resistance and ease of processing of aluminum panels make them ideal for many architectural designs.
  • Electronic equipment : 5052 aluminum sheet can be used for housings, radiators, heat exchangers, etc. of electronic equipment.

Aluminum Plate 6061 vs 5052

5052 aluminum and 6061 aluminum are common aluminum alloy materials, they have different characteristics and uses :

5052 Aluminum

  • The main alloying element is magnesium, with moderate strength and good corrosion resistance, suitable for applications such as marine and chemical industries;
  • It is suitable for deep drawing, welding and processing, such as making automobile tanks, ship components, electronic components, etc.

6061 Aluminum

  • The main alloying elements are silicon and magnesium, which have high strength and good weldability, and are suitable for high-strength and heavy-duty applications;
  • Has excellent mechanical properties, such as tensile strength, yield strength and hardness;
  • Suitable for manufacturing in aerospace, automotive, construction, bicycles and more.

Both materials can be machined and welded, but the specific application needs to be selected according to specific requirements.

  • 5052 aluminum plate is suitable for applications that require good corrosion resistance.
  • 6061 aluminum plate is suitable for applications that require high strength and excellent mechanical properties.

5052 Aluminum Plate Supplier

Haomei Aluminum is a specialized aluminum sheet manufacturer, we have advanced production equipment and rich production experience. Our company's tenet is to achieve customer satisfaction with product quality and perfect after-sales system.

Surface quality of 5052 aluminum plate :

  • No burrs : A burr is a surface defect that occurs during the cutting or forming of a sheet and can adversely affect the appearance and workability of the sheet. Therefore, for high-demand applications, professionally processed 5052 aluminum sheets, burr-treated aluminum sheets (according to customer needs) should be selected.
  • No pores and bubbles : Holes and bubbles are usually caused by impurities or gases on the surface and inside of the aluminum material, or by uneven solidification of liquid aluminum during the manufacturing process. These defects will affect the surface quality and processing performance of the aluminum plate, so the quality-controlled 5052 aluminum plate should be selected.
  • Oxide scale : Oxide scale is an oxide layer that occurs when the aluminum surface is exposed to air, which can affect the surface finish and corrosion resistance of the aluminum plate. In order to avoid such defects, the aluminum sheet is usually surface treated, anodized (according to the specific needs of customers) during the production process.
  • Flatness : The flatness of the 5052 aluminum sheet affects the processing performance and appearance of the aluminum sheet, while the flatness affects the size and geometry of the sheet. During the production process, we improve the flatness of the aluminum plate through processing such as flattening and trimming.

The surface quality of 5052 aluminum plate depends on the manufacturing process and surface treatment method. For customers who need high surface quality applications, professional treatment will be selected during the production process.
