Floor Aluminum Plate Sheet

Available in 5 strip and diamond patterns, the floor aluminum panels are lightweight and feature a raised diamond pattern on the surface for excellent traction.

  1. Precautions for Selecting Aluminum Flooring Panels
  2. Floor Aluminum Plate Sheet Functions and Advantages
  3. Floor Aluminum Plate Sheet Alloys Often Used
  4. How to Choose the Right Floor Aluminum Plate Sheet
  5. Floor Aluminum Plate Sheet Common Application Examples
  6. Common Specifications of Floor Aluminum Plate Sheets
  7. Floor Aluminum Plate Sheet Commonly Used Thickness
  8. Floor Aluminum Plate Sheet Common Pattern Choices
  9. Related search about Floor Aluminum Plate Sheet
  10. People also Ask about Floor Aluminum Plate Sheet
  11. Conclusion

Floor Aluminum Plate Sheets have become an integral part of various industries, owing to their exceptional properties and versatility. When customers embark on the journey of purchasing these sheets, several concerns arise, ranging from material specifications to functional requirements.

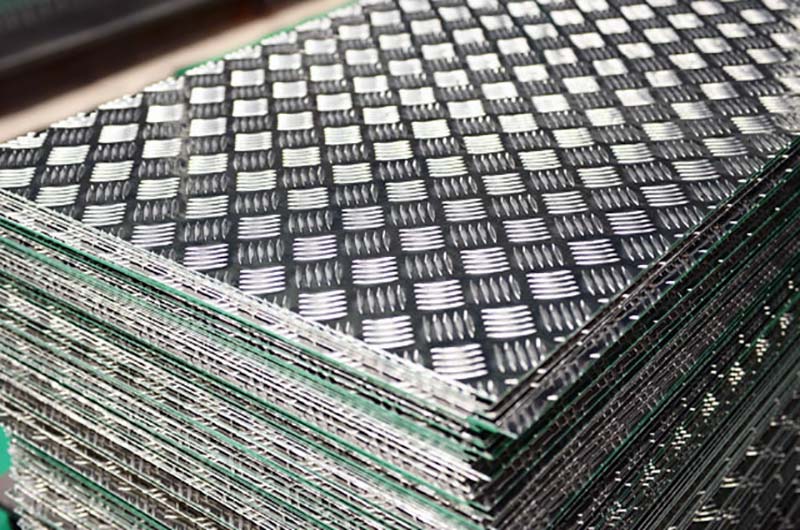

Aluminium flooring sheet, also called chequered plate, is a plate with a regular pattern of willow leaf shaped projections with the reverse side being smooth.

Floor Aluminum Plate Sheet is anti-slip and has good wear resistance. Common applications include truck beds, support structures, aisles and trench covers.

Floor Aluminum Plate Sheets

Precautions for Selecting Aluminum Flooring Panels

A. Understand requirements

Choose aluminum flooring panels to meet specific applications that require a combination of strength, durability, and corrosion resistance. Sheet metal is suitable for different industries such as construction, transportation, aerospace, and shipbuilding.

B. Material specifications

Each specification, such as alloy type, thickness, and tempering, plays a crucial role in determining the performance of the sheet in different environments and applications.

C. Regulatory compliance

Ensuring that the floor aluminum panels meet or exceed the necessary standards is crucial for ensuring the reliability and safety of the product.

D. Cost considerations

Cost is an important factor when purchasing aluminum flooring panels, and balancing the budget with the required specifications is crucial.

E. Surface treatment

The aesthetics and surface smoothness of aluminum flooring are important considerations, especially in applications where appearance is crucial.

F. Corrosion resistance

In environments prone to corrosion, priority should be given to plates with excellent corrosion resistance.

3003 Floor Aluminum Plate Sheet

Floor Aluminum Plate Sheet Functions and Advantages

A. Strength-to-Weight Ratio

One of the notable advantages of Floor Aluminum Plate Sheets is their impressive strength-to-weight ratio. This property makes them ideal for applications where weight reduction is crucial, such as in the automotive and aerospace industries.

B. Durability

Floor Aluminum Plate Sheets offer exceptional durability, ensuring longevity in various conditions. This makes them suitable for outdoor applications, where exposure to the elements is a concern.

C. Machinability

The machinability of Floor Aluminum Plate Sheets is another advantage, allowing for ease of fabrication and customization. This property opens up possibilities for intricate designs and tailored solutions in diverse industries.

D. Anti-slip

The raised pattern provides traction on steps, ramps, ladders, floors, tailgates, treads, walkways, loading docks and more, even when wet, coated with chemicals or dirt.

E. Health

Aluminum floors are easy to clean and resistant to damage from harsh cleaning agents. This makes it ideal for areas that require frequent disinfection, such as food processing plants, kitchens, restaurants, ambulances, livestock transport, etc.

F. Protective

Aluminum flooring prevents damage to walls, doors, corners, carts, skateboards, etc. It also protects bumpers, running boards, truck beds, tailgates and the bodywork of commercial, off-road and other vehicles.

Floor Aluminum Plate Sheet Alloys Often Used

A. 3003 Floor Aluminum Plate Sheet

The 3003 aluminum alloy is a popular choice for Floor Aluminum Plate Sheets. Known for its excellent corrosion resistance and formability, it finds applications in truck trailers, beverage cans, and architectural components.

B. 5052 Floor Aluminum Plate Sheet

The 5052 aluminum alloy is valued for its high fatigue strength and weldability. It is commonly used in marine applications, aircraft components, and electronic enclosures.

C. 6061 Floor Aluminum Plate Sheet

With its good mechanical properties and weldability, the 6061 aluminum alloy is a versatile choice for Floor Aluminum Plate Sheets. It is often employed in structural components, marine fittings, and bicycle frames.

D. 4017 Floor Aluminum Plate Sheet

4017 alloy is a specialized aluminum-manganese alloy that offers excellent corrosion resistance and high strength. It is often used in the production of tread or checked aluminum plates due to its specific combination of properties. The alloy is known for its formability, making it a versatile choice for various applications.

4017 Floor Aluminum Plate Sheet

How to Choose the Right Floor Aluminum Plate Sheet

A. Application-Specific Requirements

Understanding the specific requirements of the intended application is paramount. Factors such as load-bearing capacity, exposure to environmental conditions, and required surface finish play a crucial role in selecting the right Floor Aluminum Plate Sheet.

B. Alloy Selection

Choosing the appropriate alloy involves considering the balance between strength, corrosion resistance, and other mechanical properties. Consulting with experts or referring to industry standards can aid in making an informed decision.

C. Thickness and Temper

The thickness and temper of the Floor Aluminum Plate Sheet are critical in determining its performance. Thicker sheets may be required for heavy-duty applications, while the temper influences factors like formability and hardness.

Floor Aluminum Plate Sheet Common Application Examples

A. Construction Industry

In the construction industry, Floor Aluminum Plate Sheets are utilized for flooring in high-traffic areas, where durability and resistance to wear and tear are essential.

B. Transportation Sector

In the transportation sector, these sheets find applications in the manufacturing of vehicle bodies, where the strength-to-weight ratio contributes to fuel efficiency.

C. Aerospace Applications

The aerospace industry relies on Floor Aluminum Plate Sheets for components requiring a lightweight yet strong material, such as aircraft wings and fuselage panels.

D. Marine and Offshore Structures

Due to their corrosion resistance, Floor Aluminum Plate Sheets are widely used in marine and offshore structures, including shipbuilding and oil rig platforms.

Common Specifications of Floor Aluminum Plate Sheets

When it comes to Floor Aluminum Plate Sheets, there are common specifications that customers need to be familiar with to ensure they meet the requirements of their intended applications. These specifications encompass a range of factors, including alloy type, temper, and dimensions.

A. Temper

H22, H24, H32, H34: These temper conditions indicate the degree of hardness and workability of the aluminum. H22 and H24 are often suitable for forming, while H32 and H34 are commonly used for stronger applications.

T6: This temper denotes a solution heat-treated and artificially aged condition, providing high strength and durability. It is often utilized in aerospace and structural applications.

B. Dimensions

Common dimensions for Floor Aluminum Plate Sheets include various lengths, widths, and thicknesses. The specific dimensions depend on the application requirements, and customers can choose from a range of standard sizes or request custom dimensions based on their needs.

Product Thickness Width Length Weight (lbs/ft)
Floor Aluminum Plate Sheet 1/8" 48.00" 192.00" 1.899
Floor Aluminum Plate Sheet 3/16" 48.00" 192.00" 2.799
Floor Aluminum Plate Sheet 1/4" 48.00" 192.00" 3.699
Floor Aluminum Plate Sheet 1/4" 60.00" 192.00" 3.699
Floor Aluminum Plate Sheet 3/8" 48.00" 144.00" 5.4
Floor Aluminum Plate Sheet 3/8" 48.00" 192.00" 5.4
Floor Aluminum Plate Sheet 3/8" 60.00" 192.00" 5.4
Floor Aluminum Plate Sheet 1/2" 60.00" 192.00" 7.299

Floor Aluminum Plate Sheet Commonly Used Thickness

The thickness of Floor Aluminum Plate Sheets is a crucial factor that directly influences their performance in different applications. Commonly used thicknesses vary based on the intended use, load-bearing requirements, and environmental factors.

Stock Size
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 1 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 2 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 4 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 8 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 2 x 2 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 2 x 4 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 2 x 8 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 4 x 4 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 4 x 8 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 4 x 10 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 5 x 5 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 5 x 10 Ft
.063 (1/16) thick Aluminum Diamond Plate Highly Polished 3003 5 x 8 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 1 x 1 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 1 x 2 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 1 x 4 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 1 x 8 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 2 x 2 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 2 x 4 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 2 x 8 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 4 x 4 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 4 x 8 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 4 x 10 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 5 x 5 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 5 x 10 Ft
.100" thickness Aluminum Diamond Plate Highly Polished 3003 5 x 8 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 1 x 1 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 1 x 2 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 1 x 4 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 1 x 8 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 2 x 2 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 2 x 4 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 2 x 8 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 4 x 4 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 4 x 8 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 4 x 10 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 5 x 5 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 5 x 10 Ft
.125 (1/8) thick Aluminum Diamond Plate Mill Finish 6061 5 x 8 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 1 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 2 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 4 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 1 x 8 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 2 x 2 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 2 x 4 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3004 2 x 8 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 4 x 4 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 4 x 8 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 4 x 10 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 5 x 5 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 5 x 10 Ft
.188 (3/16) thick Aluminum Diamond Plate Highly Polished 3003 5 x 8 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 1 x 1 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 1 x 2 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 1 x 4 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 1 x 8 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 2 x 2 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 2 x 4 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 2 x 8 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 4 x 4 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 4 x 8 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 4 x 10 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 5 x 5 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 5 x 10 Ft
.250 (1/4) thick Aluminum Diamond Plate Mill Finish 6061 5 x 8 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 1 x 1 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 1 x 2 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 1 x 4 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 1 x 8 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 2 x 2 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 2 x 4 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 2 x 8 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 4 x 4 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 4 x 8 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 4 x 10 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 5 x 5 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 5 x 10 Ft
3/8" thick Aluminum Diamond Plate Mill Finish 6061 5 x 8 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 1 x 1 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 1 x 2 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 1 x 4 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 1 x 8 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 2 x 2 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 2 x 4 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 2 x 8 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 4 x 4 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 4 x 8 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 4 x 10 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 5 x 5 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 5 x 10 Ft
1/2" thick Aluminum Diamond Plate Mill Finish 6061 5 x 8 Ft

Floor Aluminum Plate Sheet Common Pattern Choices

The pattern on Floor Aluminum Plate Sheets serves both functional and aesthetic purposes. The pattern not only enhances the sheet's appearance but also provides traction and slip resistance in flooring applications. Common patterns include:

People also Ask about Floor Aluminum Plate Sheet

Conclusion

As these sheets continue to play a crucial role in various industries, staying informed about the latest advancements and industry standards is key to ensuring optimal performance and longevity in diverse applications.
