5052 Aluminum Coil

Elongation up to 12-20% Smooth Surface, No Cracks

The elongation rate of 5052 aluminum coil can reach 12-20%, the surface is smooth, no cracks, corrosion spots, corrosion resistance, strength and hardness, mechanical properties, formability all meet the standards

Table of Contents
  1. 5052 Aluminum Coil Advantage
  2. Common Specifications of 5052 Aluminum Coil
  3. Mechanical Properties of 5052 Aluminum Coil
  4. 5052 Aluminum Coil Mechanical Properties
  5. 5052 Aluminum Coil Application
    1. 5052 Aluminum Coil for Automobile Body
    2. 5052 Aluminum Coil for Automobile Heat Exchangers
    3. 5052 Aluminum for Shipbuilding Hulls and Superstructures
    4. 5052 Aluminum Coil for Beverage Can Lids
  6. 5052 Aluminum Chemical Composition

5052 aluminum coil is a common aluminum alloy coil, which contains about 2.2-2.8% magnesium, 0.15-0.35% chromium, and some other elements. This aluminum coil is widely used in various applications due to its good formability, corrosion resistance and strength.

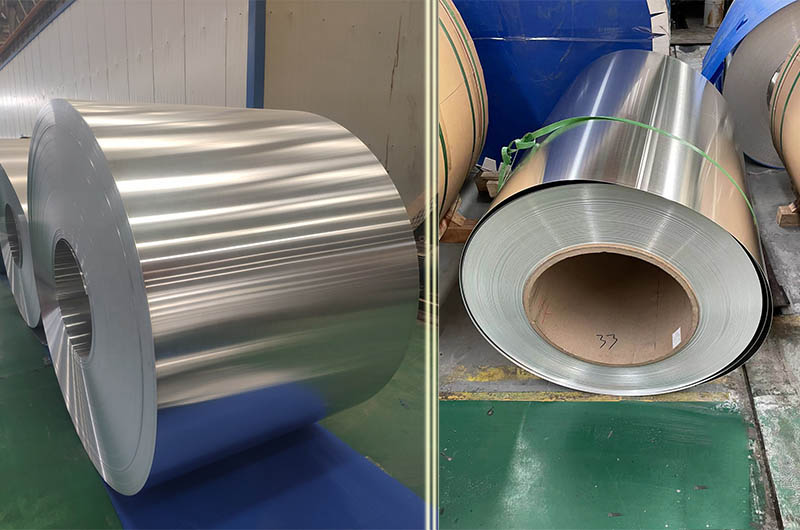

5052 Aluminum Coil

5052 Aluminum Coil Advantage

  • Good corrosion resistance : 5052 aluminum coil has excellent corrosion resistance, especially in seawater and chloride environments.
  • High Strength : 5052 aluminum coil has high strength, making it a reliable structural material.
  • Good formability : 5052 aluminum coil is easy to process and form, and is suitable for various production processes.
  • Excellent electrical conductivity : 5052 aluminum coil has excellent electrical conductivity and is suitable for electronics and electrical industries.

Common Specifications of 5052 Aluminum Coil

Smooth surface, no cracks, corrosion spots, nitrate traces;

High fatigue resistance, good plasticity and corrosion resistance;

  • Thickness : 0.15 - 600mm
  • Width : 20 - 2650mm
  • Length : 500 - 16000mm

Good weldability, poor machinability, polishing;

The elongation rate of 5052 aluminum coil can reach 12-20%, and the elongation rate of 1060 aluminum plate can be increased by 200%.

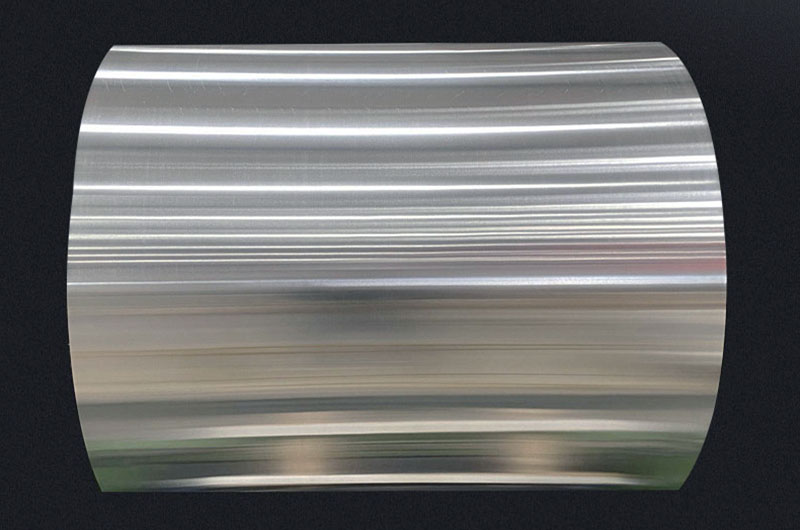

5052 aluminum coil Good corrosion resistance

Mechanical Properties of 5052 Aluminum Coil

Temper Tensile Strength (ksi)
5052 O Aluminum Coil 28-31
5052 H32 Aluminum Coil 33-38
5052 H34 Aluminum Coil 38-44
5052 H36 Aluminum Coil 40-46
5052 H38 Aluminum Coil 42-48
Temper Yield Strength (ksi)
5052 O Aluminum Coil 13-16
5052 H32 Aluminum Coil 23-28
5052 H34 Aluminum Coil 29-34
5052 H36 Aluminum Coil 31-37
5052 H38 Aluminum Coil 33-39
Temper Elongation (%)
5052 O Aluminum Coil 18-24
5052 H32 Aluminum Coil 12-18
5052 H34 Aluminum Coil 10-16
5052 H36 Aluminum Coil 8-14
5052 H38 Aluminum Coil 7-13

5052 Aluminum Coil Mechanical Properties

Property Value
Tensile Strength 210-230 MPa (30, 000-33, 000 psi)
Yield Strength 140-160 MPa (20, 000-23, 000 psi)
Elongation 12-25%
Fatigue Strength 105 MPa (15, 000 psi)

5052 Aluminum Coil Application

  • Aerospace and automobile industry : Due to its high strength, light weight and corrosion resistance, 5052 aluminum coils are widely used in aircraft, automobiles and rockets and other fields.
  • Rail transit : 5052 aluminum coils are widely used in the manufacture of light rail, high-speed rail and subway.
  • Food and medical industry : Due to the good corrosion resistance and formability of 5052 aluminum coil, it is also used in the manufacture of food and medical equipment.
  • Electronic and electrical industry : The excellent electrical conductivity of 5052 aluminum coil makes it widely used in the electronic and electrical fields.

5052 Aluminum Coil for Automobile Body

5052 aluminum coils are used in the automotive industry for manufacturing automobile body panels. The alloy's combination of high strength and corrosion resistance makes it suitable for exterior components like fenders, hoods, and doors.

Property Value
Tensile Strength 33 - 38ksi
Yield Strength 23 - 28ksi
Elongation 12 - 18%

It can be processed into different shapes and sizes to fit the specific design requirements of various car models.

  • Recommended Temper : H32/ H34
  • Thickness (mm) Range : 0.8-3

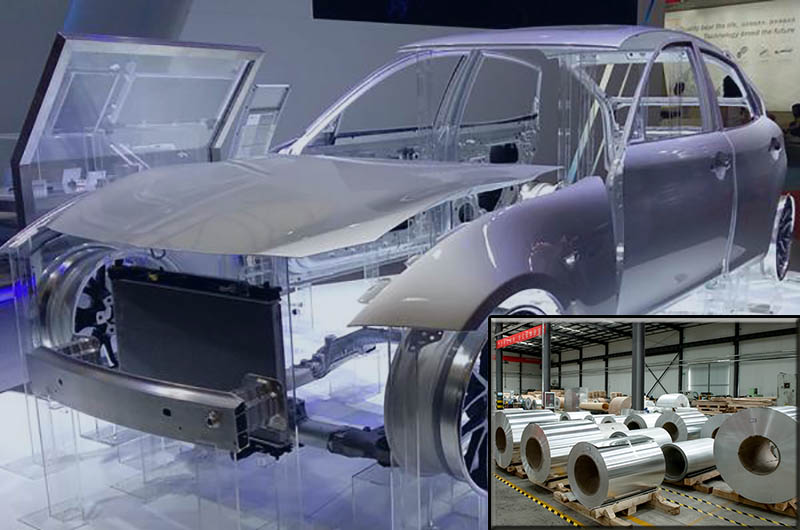

5052 Aluminum Coil for Automobile Body

5052 Aluminum Coil for Automobile Heat Exchangers

In the automotive industry, heat exchangers, such as radiators and intercoolers, require materials that can efficiently conduct heat while resisting corrosion. 5052 aluminum coils are sometimes used in these applications.

The alloy's corrosion resistance and ability to dissipate heat effectively make it suitable for use in automotive heat exchangers, helping maintain engine temperature.

  • Recommended Temper : O/ H32
  • Thickness (mm) Range : 0.2-1.5
Property Value
Tensile Strength 28 - 31ksi
Yield Strength 13 - 16ksi
Elongation 18 - 24%

5052 Aluminum for Shipbuilding Hulls and Superstructures

5052 aluminum is often used in shipbuilding for hulls and superstructures. Its corrosion resistance and moderate strength make it suitable for these applications.

While 5052 aluminum can be used, more specialized alloys like 5083 are also commonly employed in shipbuilding due to their superior corrosion resistance and strength in marine environments.

  • Recommended Temper : H32/H34
  • Thickness (mm) Range : 2-12
Property Value
Tensile Strength 33 - 38ksi
Yield Strength 23 - 28ksi
Elongation 12 - 18%

5052 Aluminum

5052 Aluminum Coil for Beverage Can Lids

Aluminum is a popular material for beverage can lids due to its lightweight nature and excellent sealing properties.

5052 aluminum coils can be processed into lids for beverage cans, ensuring a secure and airtight seal to preserve the freshness of the beverage and prevent leakage.

  • Recommended Temper : H19
  • Thickness (mm) Range : 0.18-0.22
Property Value
Tensile Strength 60 - 70ksi
Yield Strength 55 - 65ksi
Elongation 3 - 5%

The above specifications are for reference only, specific specifications and recommended temperatures for each application may vary depending on application requirements. When using 5052 aluminum coil for a specific application, relevant standards and processing requirements must be followed to ensure the best performance of the material.

5052 Aluminum Chemical Composition

Element Composition
Magnesium 2.2-2.8%
Chromium 0.15-0.35%
Copper (max) 0.1%
Iron (max) 0.1%
Manganese (max) 0.05%
Silicon (max) 0.05%
Zinc (max) 0.15%
Others (max) trace amounts
