5454 Aluminum Plate Sheet

Stable Performance, Precise Dimensional Tolerance Smooth Surface, Uniform Thickness

Haomei Aluminum 5454 aluminum plate has stable performance, complete specifications and reasonable price.

Table of Contents
  1. Advantages of 5454 Aluminum Plate
  2. 5454 Aluminum Plate Specifications
  3. Mechanical Properties of 5454 Aluminum Plate
  4. Typical 5454 Aluminum Plate Sheet
    1. 5454 H32 Aluminum Plate Sheet
    2. 5454 H111 Aluminum Plate Sheet
    3. 5454 O Aluminum Plate Sheet
  5. 5454 Aluminum Plate Applications
    1. 5454 Tanker Aluminum Plate
    2. 5454 Aluminum Plate for Truck Body
    3. 5454 Aluminum Plate for Marine Pipeline
  6. Chemical Composition of 5454 Aluminum Plate
  7. What is Aluminum 5454 Equivalent to?

5454 aluminum plate is a high-strength aluminum-magnesium alloy commonly used in the shipbuilding and transportation industries. It has excellent corrosion resistance and has good formability, weldability and machinability.

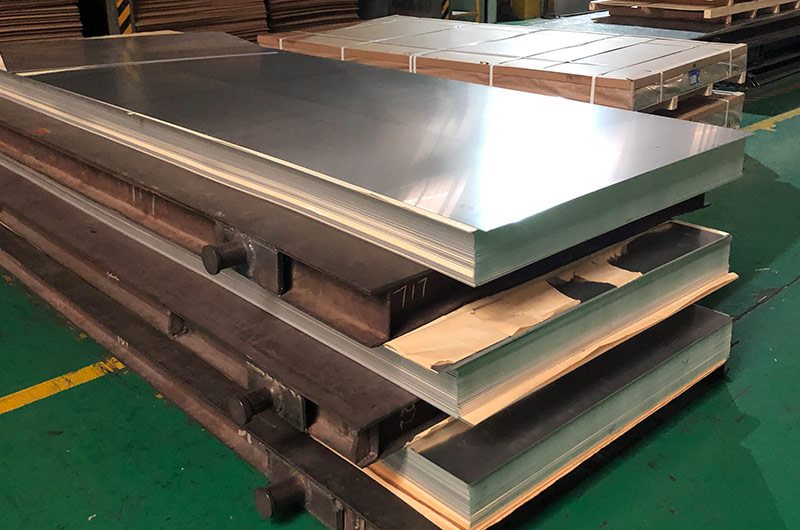

5454 aluminum plate

5454 aluminum sheet is commonly used in the construction of boats, boat building, truck and trailer bodies, and other applications requiring strength, durability, and corrosion resistance. It is also used in the manufacture of pressure vessels, piping and structural components.

Advantages of 5454 Aluminum Plate

  • High Strength : 5454 aluminum has high strength and good corrosion resistance, making it suitable for structural applications in harsh environments.
  • Excellent Corrosion Resistance : The alloy has good corrosion resistance in seawater and other corrosive environments, making it ideal for marine applications.
  • Good formability : The alloy can be easily formed using conventional methods such as bending, stamping and deep drawing.
  • Weldability : 5454 aluminum has good weldability and is easy to manufacture and repair.
  • Machinability : The alloy has good machinability, allowing efficient machining and finishing.

5454 Aluminum Plate Specifications

5454 Aluminum Plate is available in various thicknesses and sizes and can be supplied in different tempers such as O, H111 and H32

  • Thickness : 0.2mm to 250mm
  • Width : 500 mm to 2500 mm
  • Length : 1000 mm to 12000 mm
  • Status : O, H12, H14, H16, H18, H22, H24, H26, H32, H34, H36, H38, H111, H112, H321
  • Surface treatment : grinding, polishing, brushing, anodizing, embossing, etc.
  • EQ 5454 : AA 5454, UNS A95454, ISO AlMg3Mn, AMS QQ-A-250/10, EN AW-5454
  • Standard : ASTM B209

5454 Aluminum Sheet

Tempper Tensile strength (MPa) Yield strength (MPa)
5454 O Aluminum Plate 165 65
5454 H12 Aluminum Plate 190-240 110
5454 H14 Aluminum Plate 210-260 125
5454 H16 Aluminum Plate 215-265 135
5454 H18 Aluminum Plate 220-270 145
5454 H22 Aluminum Plate 240 165
5454 H24 Aluminum Plate 245 180
5454 H26 Aluminum Plate 250 190
5454 H32 Aluminum Plate 260 215
5454 H34 Aluminum Plate 270 225
5454 H36 Aluminum Plate 275 235
5454 H38 Aluminum Plate 280 245
Tempper Elongation (%) Brinell hardness (HB)
5454 O Aluminum Plate 25 46
5454 H12 Aluminum Plate 10 63
5454 H14 Aluminum Plate 9 73
5454 H16 Aluminum Plate 8 77
5454 H18 Aluminum Plate 7 83
5454 H22 Aluminum Plate 5 92
5454 H24 Aluminum Plate 4 98
5454 H26 Aluminum Plate 4 102
5454 H32 Aluminum Plate 3 109
5454 H34 Aluminum Plate 3 113
5454 H36 Aluminum Plate 3 117
5454 H38 Aluminum Plate 3 121

Mechanical Properties of 5454 Aluminum Plate

Property Value
Tensile strength (ultimate) 240 MPa (35, 000 psi)
Tensile strength (yield) 130-200 MPa (19, 000-29, 000 psi)
Modulus of elasticity 69 GPa (10, 000 ksi)
Elongation at break 12-20%
Poisson's ratio 0.33
Shear strength 160 MPa (23, 000 psi)
Fatigue strength 80 MPa (12, 000 psi)
Hardness (Brinell) 70

Typical 5454 Aluminum Plate Sheet

5454 H32 Aluminum Plate Sheet

The strength of 5454 aluminum plate is similar to that of 5154, and it can adapt to harsh corrosive environments. It is widely used in aluminum tank trucks, marine, automobiles and other fields.

5454-H32 aluminum plate is mainly used for insulation tanks and polished tank cars.

  • Tank body : 5-6mm 5454-H32/H111 aluminum plate
  • Cans : 7-7.2mm 5454-O aluminum sheet can be used for cans
  • Anti-partition : 5-6mm 5454-O aluminum plate can be used.
Property Value
Tensile Strength 200 MPa
Yield Strength 140 MPa
Modulus of Elasticity 70 GPa
Elongation at Break 14%
Hardness 68 Brinell

5454 H32 Aluminum Plate Sheet

5454 H111 Aluminum Plate Sheet

5454 H111 is a heat-treated condition with higher strength but lower ductility, suitable for applications requiring high strength and corrosion resistance, such as marine structures, transportation parts and pressure vessels.

Specific application examples :

  • Marine Structures : 5454 H111 aluminum is commonly used in the construction of ships, boats and other marine structures due to its high strength and corrosion resistance.
  • Transportation components : 5454 H111 aluminum is also used in the manufacture of automotive components such as fuel tanks, chassis, and suspension components because of its high strength and lightweight properties.
  • Pressure Vessels : 5454 H111 aluminum is used to construct pressure vessels and tanks in the oil and gas industry because of its excellent corrosion resistance and high strength.
Property Value
Tensile Strength 195 MPa
Yield Strength 125 MPa
Modulus of Elasticity 70 GPa
Elongation at Break 18%
Hardness 46 Brinell

5454 O Aluminum Plate Sheet

5454 O, in the annealed state, has the lowest strength but the highest ductility.

  • Properties : 5454 O is more formable than 5454 H111, which may limit formability in some applications.
  • Application : 5454 O is suitable for applications requiring high ductility and good formability, such as deep drawing, spinning, bending, etc. Common applications include cookers, chemical equipment, and storage tanks.
Property Value
Tensile Strength 165 MPa
Yield Strength 65 MPa
Modulus of Elasticity 70 GPa
Elongation at Break 25%
Hardness 40 Brinell

可能你想看

5454 Aluminum Plate Applications

5454 Tanker Aluminum Plate

5454 alloy aluminum plate is widely used, and it has outstanding performance in various vehicle types such as tank car body, and 5454 aluminum plate is commonly used in tank car body.

  • Status : h111
  • Application : Tank car body, Tankers Cylinder
  • Advantages of 5454 aluminum plate for tank car body :
    • light in mass
    • High recovery value of tank car aluminum plate
    • Aluminum alloy tank can be recycled and reused

Click to learn more aboutAluminum Plate for Tank Truck

5454 Aluminum Plate for Truck Body

The material of the truck compartment can be processed from 5454 aluminum plate. The 5454 aluminum alloy plate has low density and light weight, which is of great help to the weight reduction, energy saving and emission reduction of the vehicle.

Client Feedback :

  • In terms of quality, the quality of the aluminum alloy plate is lighter than that of the steel plate.
  • In terms of performance, aluminum alloy has good processing performance, good welding performance, and low tendency of welding twill.

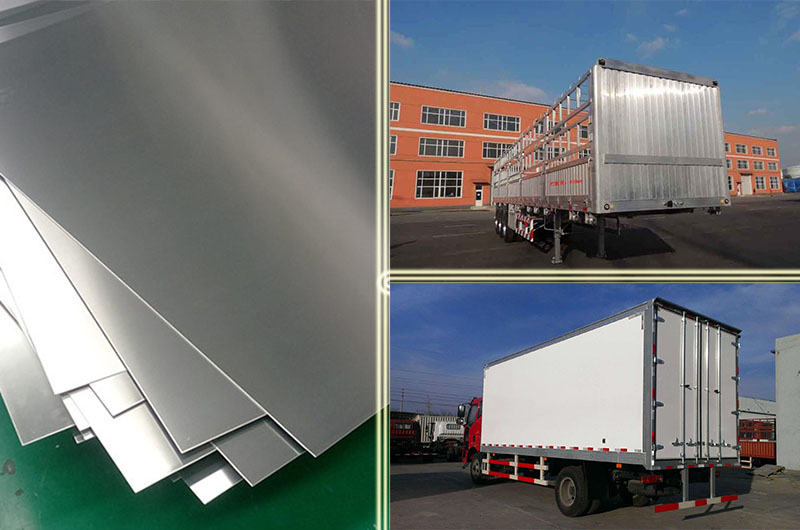

5454 Aluminum Plate for Truck Body

5454 aluminum plate belongs to the series of anti-rust aluminum plate, which has good corrosion resistance and can prolong the service life. Moreover, aluminum is a metal material widely used and advocated in the field of industrial manufacturing, which is highly recyclable and durable.

5454 Aluminum Plate for Marine Pipeline

Ocean pipelines are mainly used to realize the continuous transportation of oil and gas on the seabed, which has the advantages of large transportation volume and good continuity. Marine pipes have strict conditions for material selection :

  • be able to withstand a certain amount of pressure
  • Have better processing performance and corrosion resistance

Click to learn more aboutMarine Grage Aluminum Plate

The marine pipeline made of 5454 aluminum plate has a long service life and high material performance, which can reduce the number of maintenance during use. It is currently a commonly used metal material for marine pipelines. At the same time, it is also a common material for pressure vessels such as fuel tanks and oil tanker barrels.

Chemical Composition of 5454 Aluminum Plate

Element Composition Range
Aluminum (Al) 94.7-96.8%
Magnesium (Mg) 2.4-3.0%
Manganese (Mn) 0.50% max
Iron (Fe) 0.40% max
Silicon (Si) 0.25% max
Zinc (Zn) 0.20% max
Titanium (Ti) 0.15% max
Chromium (Cr) 0.05% max
Copper (Cu) 0.05% max
Other elements 0.15% max (each), 0.05% max (total)

What is Aluminum 5454 Equivalent to?

5454 Aluminum is an alloy with several equivalents in different standards. Here are some equivalents for Aluminum 5454 :

  • UNS A95454
  • ASTM B209
  • AMS QQ-A-250/10
  • EN AW-5454
  • ISO AlMg3Mn
  • A-G5M

While these standards specify the same chemical composition and properties as Aluminum 5454, there may be slight differences in manufacturing processes or tolerances between them. It is always advisable to consult the specific standard or code required for your application to ensure the material meets the necessary requirements.
