5086 Aluminum Alloy

5086 aluminum alloy is a non-heat treatable aluminum alloy with a high magnesium content. It belongs to the 5xxx series of aluminum alloys, known for its excellent corrosion resistance and medium strength.

Table of Contents
  1. Haomei Aluminum 5086 Aluminum Hot Products
  2. Common Product Forms of 5086 Aluminum
  3. 5086 Aluminum Supply Status
  4. 5086 Aluminum Composition
  5. 5086 Aluminum Properties
  6. 5086 Aluminum Mechanical Properties
  7. 5086 Aluminum Applications
  8. 5086 Aluminum Heat Treatment
  9. Related Questions for 5086 Aluminum
  10. 5083 Aluminum Related Topics
  11. Popular 5086 Aluminium Blogs
  12. Aluminium Alloy Table

Due to its resistance to seawater and other harsh environments, 5083 aluminum alloy is often used in marine applications. According to the content of magnesium alloy, the order of aluminum-magnesium alloy is 5005 5252 5251 5050 5052 5754 5083 5056 5086 and so on.

Haomei Aluminum 5086 Aluminum Hot Products

Common Product Forms of 5086 Aluminum

  • 5086 Aluminum Plates
  • 5086 Aluminum Sheets

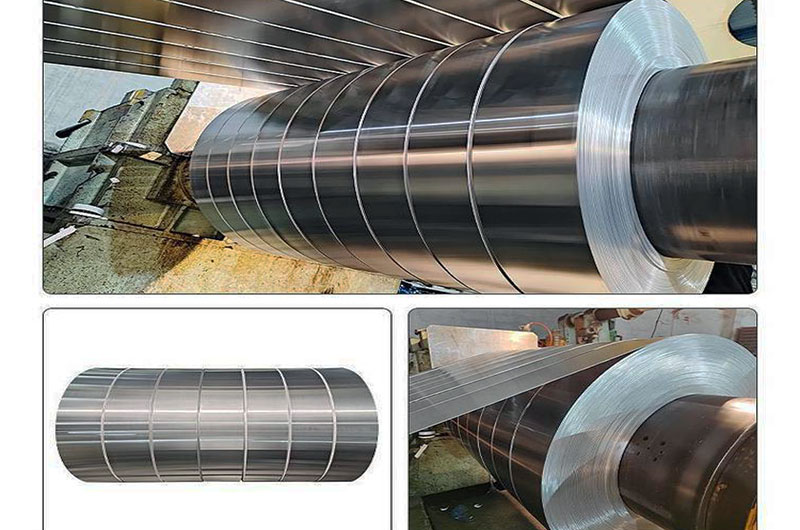

  • 5086 Aluminum Strips
  • 5086 Aluminum Coils
  • 5086 Aluminum Pattern Plates
  • 5086 Aluminum Tread Plates
  • 5086 Aluminum Checkered Plates
  • 5086 Aluminum Diamond Plates
  • 5086 Aluminum Extruded Profiles
  • 5086 Aluminum Bars and Rods
  • 5086 Aluminum Forgings
  • 5086 Aluminum Welded Assemblies
  • 5086 Aluminum Profiles
  • 5086 Aluminum Tubes
  • 5086 Aluminum Wire
  • 5086 Aluminum Disc

5086 Aluminum Alloy

5086 Aluminum Supply Status

  • 5086 O Aluminum
  • 5086 H112 Aluminum
  • 5086 H116 Aluminum
  • 5086 H111 Aluminum
  • 5086 H321 Aluminum
  • 5086 H32 Aluminum
  • 5086 H36 Aluminum
  • 5086 H38 Aluminum

5086 Aluminum Composition

  • Aluminum (Al): 95.7%
  • Magnesium (Mg): 4.0%
  • Manganese (Mn): 0.15%
  • Chromium (Cr): 0.05-0.25%

5086 Aluminum Properties

Corrosion Resistance: 5086 aluminum has excellent corrosion resistance, making it suitable for marine applications. It resists saltwater corrosion, which is crucial for boat building and other marine structures.

Weldability: It has good weldability characteristics, and various welding methods can be used to join 5086 alloy components.

Formability: The alloy exhibits good formability, allowing it to be easily shaped and fabricated.

5086 Aluminum Mechanical Properties

  • Tensile strength σb (MPa): ≥240
  • Conditional yield strength σ0.2 (MPa): ≥95
  • Elongation δ10 (%): ≥10
  • Elongation δ5 (%): ≥12

5086 Aluminum Applications

  • Marine 5086 aluminum plate
  • Aluminum plate for carriage panel 5083
  • 5086 aluminum plate for pressure vessels
  • 5086 aluminum plate is used to manufacture marine ships
  • 5086 anti-rust aluminum plate
  • 5086 pattern aluminum plate for bus anti-skid
  • Mexico 5086 h111 marine aluminum plate
  • 5086-H116 One rib pattern board
  • 5086 H321 aluminum plate for deck
  • 5086 O H112 Marine Grade Aluminum Hexagon Rod
  • 5086 H111/H112/H116 Aerospace Aluminum Sheet Plate

5086 is the hull material of choice for small aluminum boats or larger yachts. Its high strength and good corrosion resistance make it an excellent addition to yachts.

5086 has been used in vehicle armor, specifically the M113 armored personnel carrier and the M2 Bradley infantry fighting vehicle.

5086 is prone to stress corrosion cracking and is therefore rarely used in aircraft manufacturing.

5086 Aluminum Heat Treatment

5086 is a non-heat-treatable alloy, meaning its mechanical properties are achieved through cold working rather than heat treatment.

5086 aluminum is not strengthened by heat treatment, but rather becomes stronger by strain hardening or cold machining of the material.

  • What is 5086 grade aluminum?
  • What is the difference between 5086 and 6061 aluminum?
  • What is the difference between 5083 and 5086 Aluminum?
  • What is the difference between 5052 and 5086 Aluminum?
  • 5086 aluminum properties
  • 5086 aluminum bar
  • 5086 aluminum pipe
  • 5086 aluminum suppliers
  • 5086 aluminum sheet
  • 5086 aluminum angle
  • 5086 aluminum sheet prices
  • 5086-h32 vs h116
  • Aluminum 5086 vs 6061
  • aluminum 5086 density
  • 5086 Marine Grade Aluminum Square Bars
  • 5086 O/H112 Marine Grade Aluminum Bars
  • 5086 Aluminum Pipe

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176

Related Topics: Boat Aluminum Ship Aluminium Marine Aluminum Marine Grade 5086 Aluminum Plate Sheet Marine Grade 5083 Aluminum Plate Sheet Marine Grade 5052 Aluminum Plate Sheet Marine Grade 5059 Aluminum Plate Sheet Marine Grade 5383 Aluminum Plate Sheet Marine Grade 5456 Aluminum Plate Sheet Marine Grade 6061 Aluminum
