Marine Grade 5383 Aluminum Plate Sheet

Certifications: DNV, BV, CSS, LR Overper than 5083

5383 aluminum alloy is an improved alloy of 5083 aluminum alloy. Compared with 5083 aluminum alloy, 5383 aluminum alloy has higher strength and better welding performance.

Table of Contents
  1. 5383 Marine Aluminum Plate Size
  2. 5383 Marine Aluminum Plate vs 5083 Marine Aluminum Plate
  3. Chemical composition of 5383 grade aluminium
  4. Eq to 5383 Marine Aluminum Plate
  5. Mechanical properties of marine grade 5383 aluminium plate
  6. 5383 Marine Aluminum Plate Applications

5383 aluminum alloy is an improved alloy of 5083 aluminum alloy. Compared with 5083 aluminum alloy, 5383 aluminum alloy has higher strength and better welding performance.

5383 Marine Aluminum Plate

The advantages of 5383 aluminum alloy high strength, good corrosion resistance, high thermal conductivity, high conductivity, and good weldability, etc., have been widely used in the ship's field field.

The 5xxx aluminum alloys are commonly used in aluminum alloy 5083, 5456, 5A01, etc. On the basis of 5083, 5383 alloys are developed by adding trace CU, Zn and a small amount of ZR. The strength, corrosion and welding performance of the 5383 alloy are higher than 5083, and the development and production of 5383 alloys will gradually meet the requirements of my country on the upper layer of the ship's ship. Establishing environmental application provides new materials.

HAOMEI ALUMINUM's shipping 5383 aluminum plate is the main product of the field of vessel aluminum plates, occupying an important position in ship manufacturing. BV, DNV/GL, CCS, ABS, LR, KR, RINA and other air -level club certificates can be provided according to the requirements.

5383 Marine Grade Aluminum Plate Certifications:

  • DNV
  • BV
  • CSS
  • LR

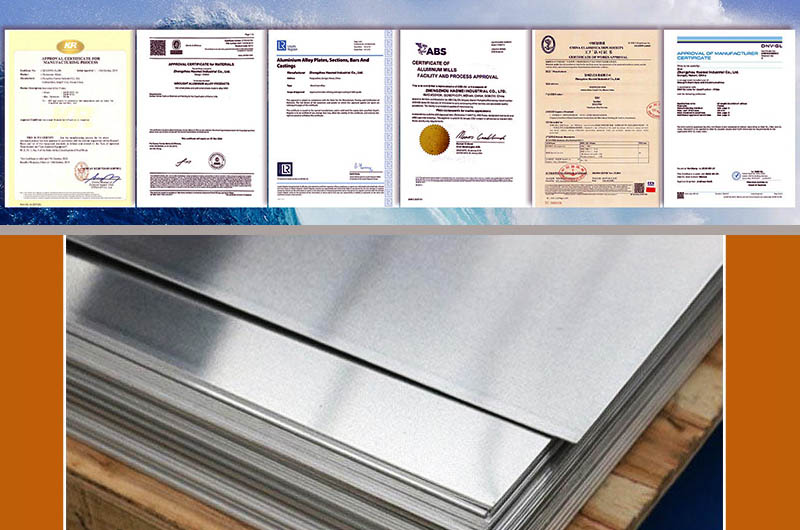

5383 Marine Grade Aluminum Plate Certifications

5383 Marine Aluminum Plate Size

Alloy Temper Thickness (mm) Width (mm) Application
5083 O/H111/H112/H116/H321 3-10 ≤2600 shipbuilding
5383 O/H111/H112/H116/H321 10-50 ≤3600 Marine, ship
5383 O, H111 3–10 ≤2600 tanker
5383 O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114, H116, H321 0.5-500 20-2650 LNG storage tanks, gas storage cylinders, GIS shells, car body skins, flange materials, etc.

5383 Marine Aluminum Plate vs 5083 Marine Aluminum Plate

5383 Marine Aluminum Plate is an upgraded version of 5083 Marine Aluminum Plate.

  • 5383 Marine Aluminum Plate strong corrosion resistance and increased hardness by 10%.
  • The yield point of the welding structure increased by 15%.

High corrosion 5383 aluminum plates are mainly used for construction of ships and petroleum drilling platforms around salt water. It can still maintain strength under extremely cold conditions, so it is also used to make low -temperature pressure vessels and storage tanks.

Chemical composition of 5383 grade aluminium

The MG content in the 5383 aluminum alloy is between 4.0 and 5.2 %. In the corrosive environment, such as in the environment, it is prone to corrosion failure. Therefore, the 5383 plate needs to be stabilized to improve its corrosion resistance.

Alloy 5383
Si ≤0.25
Fe ≤0.25
Cu ≤0.2
Mn 0.7-1.0
Mg 4.0-5.2
Cr ≤0.25
Zn ≤0.4
Ti ≤0.15
Zr ≤0.2
Standard EN/ASTM

Eq to 5383 Marine Aluminum Plate

5383 aluminum plate belongs to the type of aluminum alloy with magnesium as the main alloy additive. The 5383 brand aluminum has improved corrosion resistance, increased fatigue strength and good welding performance. The full name of the alloy is AA5383 in the United States, in Europe, EN AW-5383, and the UNS number is A95383. In addition, EN chemical name is Almg4, 5MN0, 9.

Mechanical properties of marine grade 5383 aluminium plate

Alloy 5383 5383 5383
Temper O/H111/H112 H116 H321
Tensile strength Rm(Mpa) ≥275 ≥305 305-385
Yield strength Rp0.2 (Mpa) ≥125 ≥215 215-295
Elongation A (%) ≥16 ≥10 ≥12
Exfoliation corrosion mg/cm2 ≤PB ≤PB
Intergranular corrosion ≤15
Standard EN485 ASTM B928

5383 Marine Aluminum Plate Applications

5383 aluminum plate is mainly used in the shipbuilding industry, examples are as follows.

  • 1. Stronger welded aluminum structures such as ship hulls and cruise ship superstructures.
  • 2. Small ships less than 50m in length.
  • 3. Work boat with strong hardness.
  • 4. Interior partitions and decoration of luxury yachts.
  • 5. Large ships exceeding 50m in length.
