5754 Aluminum Alloy

5754 aluminum alloy is a deformed aluminum alloy with magnesium as the main alloy element. It belongs to the 5xxx series of aluminum alloys and is known for its good corrosion resistance, weldability and medium strength.

Table of Contents
  1. 5754 Aluminum Properties
  2. Haomei Aluminum 5754 Aluminum Hot Products
  3. 5754 Aluminum Product Forms
  4. 5754 Aluminum Spot Specifications
  5. 5754 Aluminum Chemical Composition
  6. 5754 Aluminum Physical Properties
  7. 5754 Aluminum Mechanical Properties
  8. 5754 Aluminum Typical Uses
  9. 5754 Aluminum Heat Treatment Process
  10. Related Questions for 5754 Aluminum
  11. 5754 Aluminum Related Searches
  12. 5754 Aluminum Related Topics
  13. Aluminium Alloy Table

5754 aluminum has the characteristics of medium strength, good corrosion resistance, weldability and easy processing and forming. 5754 aluminum is closely related to alloys 5154 and 5454.

5754 Aluminum Properties

  • Can be formed by rolling, extrusion and forging
  • cannot be cast
  • A stronger but less ductile state can be produced by cold working

Haomei Aluminum 5754 Aluminum Hot Products

5754 Aluminum Product Forms

  • 5754 Aluminum Sheet
  • 5754 Aluminum Plate

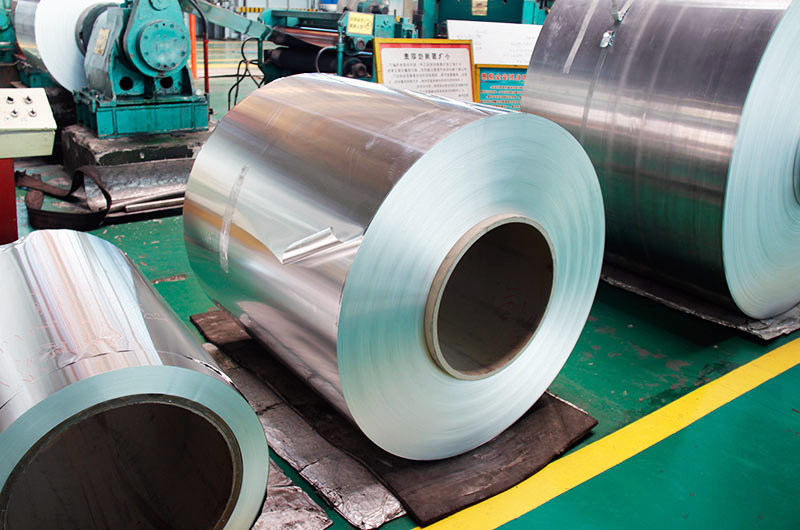

  • 5754 Aluminum Coil
  • 5754 Aluminum Extrusions
  • 5754 Aluminum Tread plate
  • 5754 Aluminum Forgings

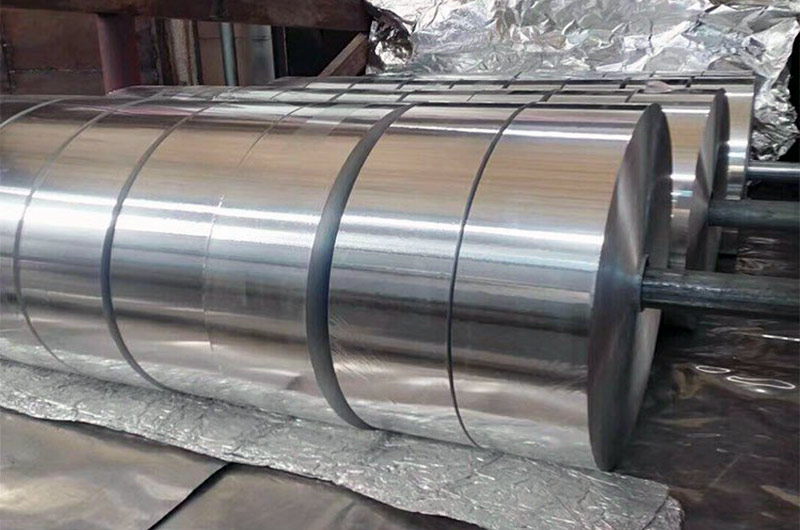

  • 5754 Aluminum Strip
  • 5754 Aluminum Wire

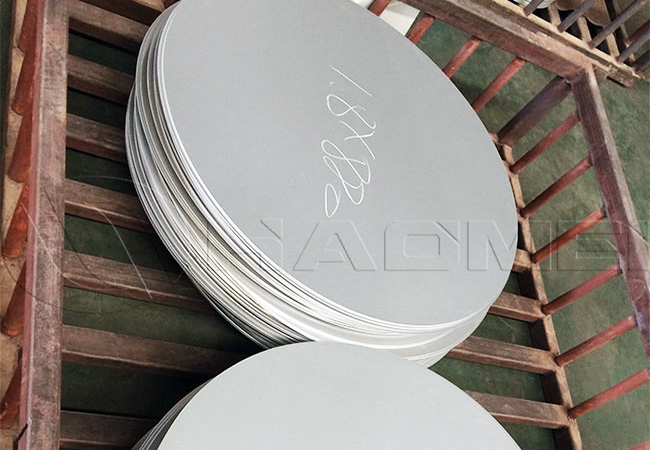

  • 5754 Aluminum Disc

5754 Aluminium Alloy

5754 Aluminum Spot Specifications

5754 aluminum plate specifications

Thickness: 3mm, 4mm, 6mm, 8mm

Width: 1000mm\1220mm\1500mm

Length: 2000mm, 2440mm, 3000mm, 6000mm

Standard size of aluminum plate: 1220*2440mm

5754 aluminum rod specifications

Diameter: 3.0mm-500mm

Length: 2000mm-6000mm

Aluminum rod standard size: 2500mm

Wire diameter: 0.1mm-20mm

Length: such as 0.1mm*c (coiled wire)

575 aluminum wire standard size: 10KG-200KG

5754 Aluminum Chemical Composition

  • Magnesium (Mg): 2.6-3.6%
  • Manganese (Mn): 0.5%
  • Chromium (Cr): 0.3%
  • Iron (Fe): 0.4%
  • Silicon (Si): 0.4%
  • Copper (Cu): 0.1%
  • Zinc (Zn): 0.2%
  • Titanium (Ti): 0.15%
  • Others (each): 0.05%
  • Others (total): 0.15%
  • Aluminum (Al): Balance

5754 Aluminum Physical Properties

  • Density: 2.66 g/cm³ (at 20°C)
  • Melting Range: 570-640°C

5754 Aluminum Mechanical Properties

  • Tensile Strength (at room temperature): 190 MPa (27, 500 psi)
  • Yield Strength (at room temperature): 80 MPa (11, 600 psi)
  • Elongation: 22%

5754 Aluminum Typical Uses

  • Shipbuilding: Due to its corrosion resistance.
  • Automotive Components: Body panels, chassis components.
  • Welded Structures: Good weldability makes it suitable for various welded applications.
  • Transportation: Trailer and truck body construction.
  • 5754 O H111 Oil Tanker Aluminum Sheet
  • 5754 O Aluminum Sheet for Auto Body
  • Marine Grade 5754 Aluminum Hexagonal Bar
  • 5754 H111 H112 Marine Grade Aluminum Plate
  • 5754 Marine Grade Aluminum Square Bars
  • 5754 Marine Grade Aluminum Round Bar

5754 Aluminum Heat Treatment Process

  • 1) Homogenization annealing: heating to 440°C; holding for 12 to 14 hours; air cooling.
  • 2) Rapid annealing: heating 350~410℃; holding time 30~120min; air or water cooling.
  • 3) High temperature annealing: heating at 350~420℃; when the thickness of the finished product is ≥6mm or <6mm, the holding time is 2~10min or 10~30min; air cooling.
  • 4) Low temperature annealing: Heating at 250~300℃ or 150~180℃; holding time is 1~2h, air cooling.
  • What is 5754 aluminum used for?
  • What is marine grade Aluminium 5754?
  • What is the difference between 5754 H22 and 5251 H22?
  • Is 5754 aluminum weldable?
  • 5754 aluminium sheet
  • 5754 aluminium bar
  • 5754 aluminium datasheet
  • 5754 aluminium composition
  • 5754 aluminium suppliers
  • 5754 aluminium plate
  • 5754 aluminium vs 5251
  • 5754 aluminium ultimate tensile strength
  • 5754 aluminium grade
  • 5754 aluminium yield strength
  • 5754 aluminum plate as tank car body material
  • Engine protective cover 5754-O aluminum plate
  • 5754-H111 aluminum plate for van skin
  • H111/T4 five rib 5754 pattern aluminum plate
  • 5754 aluminum alloy sheet and strip for auto parts
  • 5754-H114 aluminum plate for car compartment skid plate
  • 5754 pattern aluminum plate for anti-slip use in refrigerated compartments
  • 5754 aluminum plate for sound insulation barrier
  • 5754 aluminum coil for alloy doors and windows
  • 5754 aluminum plate for tank partition
  • 5052 aluminum plate for cabinet
  • 5754 marine aluminum plate
  • Aluminum plate for automobile fuel tank material 5754
  • 5754 O H111 Oil Tanker Aluminum Sheet
  • 5754 O Aluminum Sheet for Auto Body
  • Marine Grade 5754 Aluminum Hexagonal Bar
  • 5754 H111 H112 Marine Grade Aluminum Plate
  • 5754 Marine Grade Aluminum Square Bars
  • 5754 Marine Grade Aluminum Round Bar

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176
