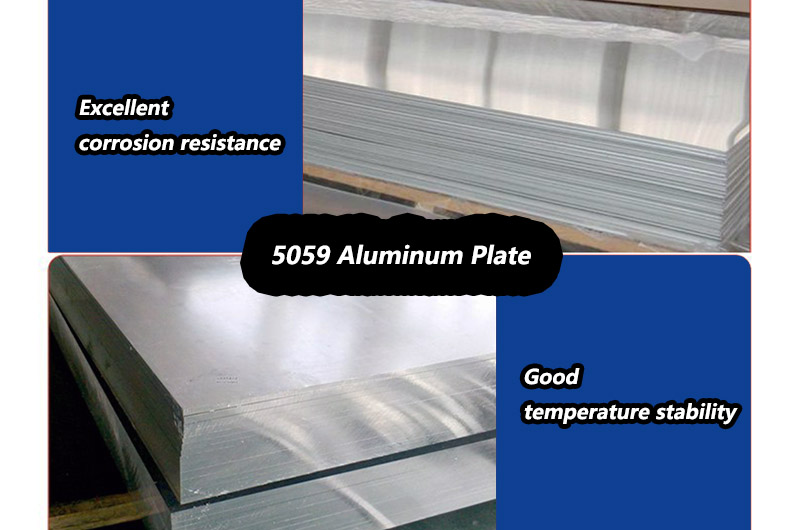

5059 aluminum plate for dangerous goods transport tank trucks is a special material widely used in the field of dangerous goods transportation and has many unique properties and characteristics.
5059 tank truck aluminum plate performance and characteristics
1. Material overview
5059 aluminum plate is an aluminum alloy material with excellent corrosion resistance, strength and lightweight characteristics. This kind of aluminum plate is often used to manufacture the outer shell and internal structure of dangerous goods transport tankers to ensure maximum safety for the carrier and the environment during transportation.
2. Corrosion resistance
5059 aluminum plate performs well in harsh environments and is corrosion-resistant. This is crucial for dangerous goods transport tank trucks, because they may be exposed to various chemicals, including acids and alkalis, during transportation. Materials are required that can effectively resist the effects of corrosion to ensure the long-term stable operation of tank trucks.
3. Strength and wear resistance
5059 aluminum plate not only has excellent corrosion resistance, but also exhibits high strength and wear resistance. This enables hazardous goods transport tankers to maintain structural integrity when subjected to external shock or vibration, reducing the risk of accidents and improving transportation safety.
4. Lightweight design
Compared with traditional materials, 5059 aluminum plates have the advantage of lightweight design. Since dangerous goods transport tank trucks need to reduce the overall weight during transportation to reduce burden and improve fuel efficiency, the use of 5059 aluminum plates can effectively achieve this goal.
5. Temperature stability
Dangerous goods transport tank trucks often need to operate under different temperature conditions, and 5059 aluminum plates have good temperature stability. This means that the material maintains stable physical and chemical properties even in extreme temperature environments, ensuring that the tanker truck can operate reliably in a variety of climate conditions.
6. Compliance Standards
Dangerous goods transport tank trucks made of 5059 aluminum plates usually need to comply with a series of international and domestic safety standards and regulations. This includes quality control during the production and processing of materials, as well as specific requirements for tank car structure and performance.
The 5059 aluminum plate for dangerous goods transport tank trucks provides reliable protection for the transportation of dangerous goods through its excellent performance. Its corrosion resistance, strength, wear resistance, lightweight design and temperature stability make this material an indispensable and important component in the transportation of dangerous goods.
Tank Truck 5059 Aluminum Plate Specifications
| Alloy | temper | thickness | width | length | application |
| 5059 | O, H12, H32, H111, H114, H112 | 1mm-500mm | 500-2650mm | 1500-16000mm | Tank trucks |
Thickness
Typical thickness range is 3mm to 50mm.
| Aluminum Sheet for Tank Truck | Thickness |
|---|---|
| 5059 Aluminum Sheet for Tank Truck | 4mm |
| 5059 Aluminum Sheet for Tank Truck | 6mm |
| 5059 Aluminum Sheet for Tank Truck | 8mm |
Width
Typical width range is 1000mm to 3000mm.
| Tank Truck Aluminum Plate | Width |
|---|---|
| 5059 Tank Truck Aluminum Plate | 1000mm |
| 5059 Tank Truck Aluminum Plate | 1200mm |
| 5059 Tank Truck Aluminum Plate | 1500mm |
Length
- Typical length range is 2000mm to 6000mm.
- Depending on specific needs, longer lengths can also be customized.
5059 aluminum plates are usually used to manufacture the outer shell and internal structure of dangerous goods transport tankers. The selection of appropriate specifications depends on the capacity of the tanker, the type of dangerous goods transported, and other engineering requirements.
5059 Aluminum Plate Sheet for Tanker Chemical Compositions
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Zr | Ti |
| 5059 | 0.25 | 0.4 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | - | - |
Advantages as a 5059 tank truck aluminium plate manufacturer
5059 Tanker Aluminum Plate Sheet Mechanical Performance
| Alloy | Temper |
Yield Strength Rp0.2(Mpa) |
Tensile Strength Rm(Mpa) |
Elongation A50(50%) |
| 5059 | O/H12/H32 | 401 | 280 | 16.2 |
5059 Tank Truck Aluminum Plate Applications
There are many examples of using 5059 aluminum plates in dangerous goods transport tankers. The following are some specific application scenarios and cases:
- 5059 tank truck aluminum plate for chemical transportation: Dangerous goods include various chemicals, and the corrosion resistance of 5059 aluminum plate makes it an ideal choice for chemical transportation tank trucks. This ensures that chemicals do not cause damage to the tanker structure during transportation, thereby reducing the risk of accidents.
- 5059 Tank Truck Aluminum Plate for Liquefied Gas Transportation: Liquefied gases such as liquefied petroleum gas (LPG) or liquefied natural gas (LNG) need to be transported under high pressure and low temperature conditions. The temperature stability and corrosion resistance of 5059 aluminum plate make it a suitable material. . Its lightweight design also helps reduce the overall weight of the tanker and improve transportation efficiency.
- 5059 Tank Truck Aluminum Plate for Hazardous Waste Transportation: Handling and transporting hazardous waste requires a highly reliable and durable tank truck. The strength and wear resistance of 5059 aluminum plates ensure that the tanker can withstand the weight of the waste and possible impacts during transportation, while resisting corrosion of the tanker material by the waste.
- 5059 Tank Truck Aluminum Plate for Petroleum Products Transportation: The transportation of crude oil and petroleum products places high demands on the material performance of tank trucks. 5059 aluminum plate is widely used in this field, its corrosion resistance and strength enable it to withstand the transportation pressure and environmental conditions of petroleum products.
- Compliance with international transportation standards: Since the transportation of dangerous goods is international, dangerous goods transportation tank trucks using 5059 aluminum plates usually need to comply with international transportation standards and protocols to ensure the safety and compliance of transportation.
These examples highlight the widespread use of 5059 aluminum plate in hazardous goods transport tankers and the importance of this material in ensuring safe, reliable and efficient transportation.
