6063 Aluminum Alloy

6063 aluminum alloy is widely used in the frames of building aluminum doors, windows, and curtain walls. It is a common aluminum alloy model.

Table of Contents
  1. Haomei Aluminum 6063 Aluminum Hot Products
  2. 6063 Aluminum Alloy Product Forms
  3. 6063 Aluminum Supply Status
  4. 6063 Aluminum Spot specifications
  5. 6063 Aluminum Chemical Composition
  6. 6063 Aluminum Physical Properties
  7. 6063 Aluminum Mechanical Properties
  8. Related Questions for 6063 Aluminum
  9. 6063 Aluminum Related Searches
  10. Newest Order for 6063 Aluminium
  11. Popular 6063 Aluminium Blogs
  12. Aluminium Alloy Table

AA 6063 is an aluminum alloy with magnesium and silicon as alloying elements. It usually has good mechanical properties and is heat treatable and weldable.

6063 is the most commonly used aluminum extrusion alloy. It can be formed into complex shapes and has a very smooth surface suitable for anodizing, making it popular for visible architectural applications such as window frames, door frames, roofs and sign frames.

6061 and 6082 are stronger than 6063 aluminum.

Haomei Aluminum 6063 Aluminum Hot Products

6063 Aluminum Alloy Product Forms

  • 6063 Aluminum Sheet
  • 6063 Aluminum Plate

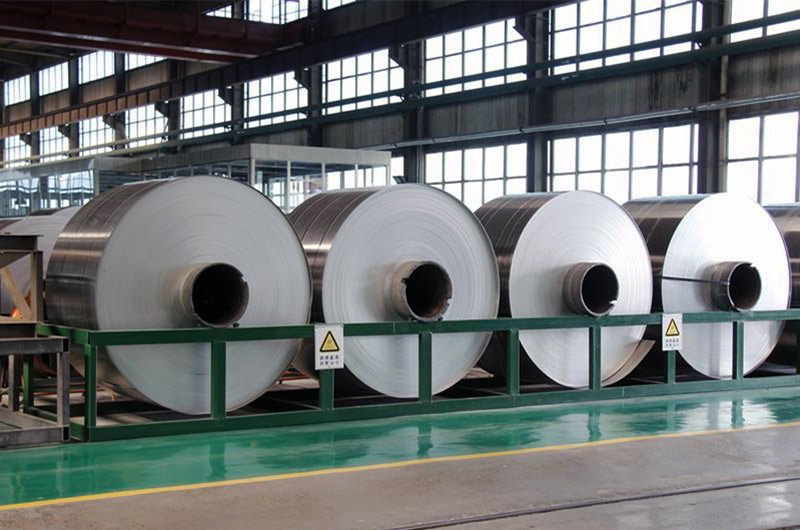

  • 6063 Aluminum Coil
  • 6063 Aluminum Extrusions
  • 6063 Aluminum Tube
  • 6063 Aluminum Bar/Rod
  • 6063 Aluminum Forgings
  • 6063 Aluminum Wire

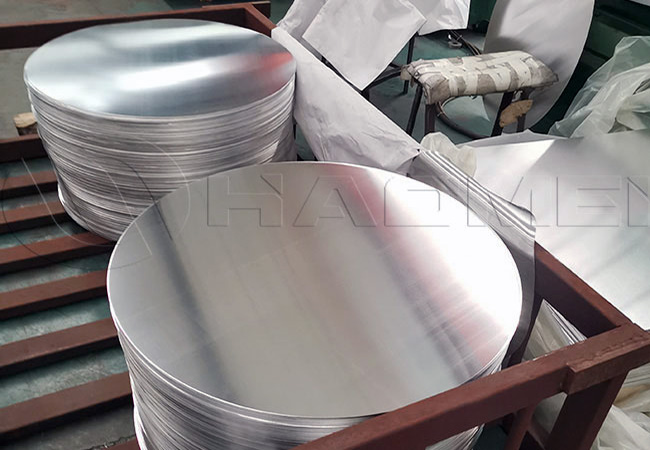

  • 6063 Aluminum Disc

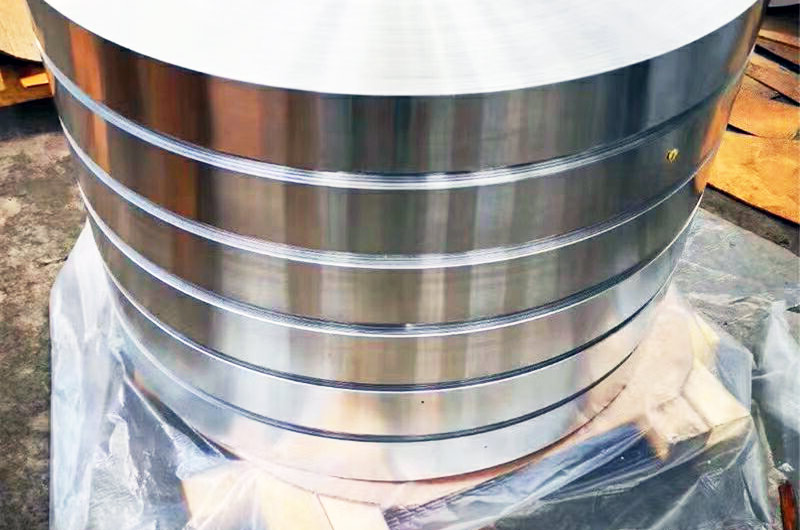

  • 6063 Aluminum Strip

6063 Aluminum Supply Status

  • 6063-O Aluminum
  • 6063-T3 Aluminum
  • 6063-T4 Aluminum
  • 6063-T5 Aluminum
  • 6063-T6 Aluminum
  • 6063-T1 Aluminum
  • 6063 T52 Aluminum
  • 6063 T53 Aluminum
  • 6063 T54 Aluminum
  • 6063 T55 Aluminum
  • 6063 T832 Aluminum

6063 Aluminium Alloy

6063 Aluminum Spot specifications

  • 6063 plate spot specifications: 0.3mm-350mm (thickness)
  • 6063 bar stock specifications: 3.0mm-500mm (diameter)
  • 6063 wire stock specifications: 0.1mm-20mm (wire diameter)

6063 Aluminum Chemical Composition

  • Silicon (Si): 0.20-0.60%
  • Iron (Fe): 0.35%
  • Copper (Cu): 0.10%
  • Manganese (Mn): 0.10%
  • Magnesium (Mg): 0.45-0.90%
  • Chromium (Cr): 0.10%
  • Zinc (Zn): 0.10%
  • Titanium (Ti): 0.10%
  • Others (each): 0.05%
  • Others (total): 0.15%
  • Aluminum (Al): Balance

6063 Aluminum Physical Properties

  • Density: 2.70 g/cm³ (at 20°C)
  • Melting Range: 580-630°C

6063 Aluminum Mechanical Properties

  • Tensile Strength (at room temperature): 160 MPa (23, 200 psi)
  • Yield Strength (at room temperature): 110 MPa (16, 000 psi)
  • Elongation: 8%
  • What is 6063 Aluminium alloy used for?
  • What is the difference between 6061 and 6063 aluminum alloy?
  • What grade is 6063 aluminum?
  • What is the difference between 6060 and 6063 aluminum?
  • 6063 t6 aluminium
  • 6063 t5 aluminium properties
  • 6063 vs 6082 aluminium
  • 6063 vs 6061 aluminium
  • 6063 t3 aluminium
  • 6063 t6 grade aluminium
  • 6063 t6 aluminium properties
  • 6063 grade aluminium
  • 6063 t5 aluminium
  • 6063 vs 6060 aluminium

Newest Order for 6063 Aluminium

  • 6063 O T4 T6 3C Digital Shell Aluminum Sheet
  • 6063 O/T4 Aluminium Sheet for Automotive Body Structural Parts
  • 6063 T4 T6 Oil Tanker Aluminum Tube
  • 6063 T5 T6 Extruded Aluminum Tubing
  • 6063 Aluminum Pneumatic Cylinder Tube
  • 6063 T4 Electrical Aluminum Busbar
  • 6063 T4/T5/T6/T66/T64 Aluminum Auto Profiles
  • 6063 T4 T6 T651 Aerospace Aluminum Profile Extrusions
  • 6063 Aluminum Round Bar
  • 6063 T6 Conductive Aluminum Tubular Buspipe
  • 6063 T6 Aluminum Street Light Pole
  • 6063 Aluminum Flat Bar
  • 6063 Aluminum Extruded Profiles for Aluminum Bridges
  • 6063 Aerospace Aluminum Bar
  • 6063 T5 Aluminum Sheet
  • 6063 T4 T5 T6 Cabinet Handle Aluminum Profile

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176
