5005 Aluminum Alloy

5005 aluminum alloy is similar to 3003 alloy and has medium strength and good corrosion resistance. The anodized film is brighter than the oxide film on the 3003 alloy and is consistent with the color tone of the 6063 alloy.

Table of Contents
  1. 5005 Aluminum Alloy Features
  2. Haomei Aluminum 5005 Aluminum Hot Products
  3. Common Product Forms of 5005 Aluminum
  4. 5005 Aluminum Mechanical Properties
  5. 5005 Aluminum Chemical Composition
  6. 5005 Aluminum Applications
  7. Related Questions for 5005 Aluminum
  8. 5005 Aluminum Related Topics
  9. Popular 5005 Aluminium Blogs
  10. Aluminium Alloy Table

5005 Aluminum Alloy Features

  • Not for casting
  • Medium to high strength can be obtained by cold working
  • Has relatively high welding strength
  • Hardness H116 and H321 available for fresh and salt water

Haomei Aluminum 5005 Aluminum Hot Products

Common Product Forms of 5005 Aluminum

  • Anodized 5005 Aluminum
  • 5005 Aluminum Sheet and Plate
  • 5005 Aluminum Coil
  • 5005 Aluminum Extrusions
  • 5005 Aluminum Wire
  • 5005 Aluminum Forgings

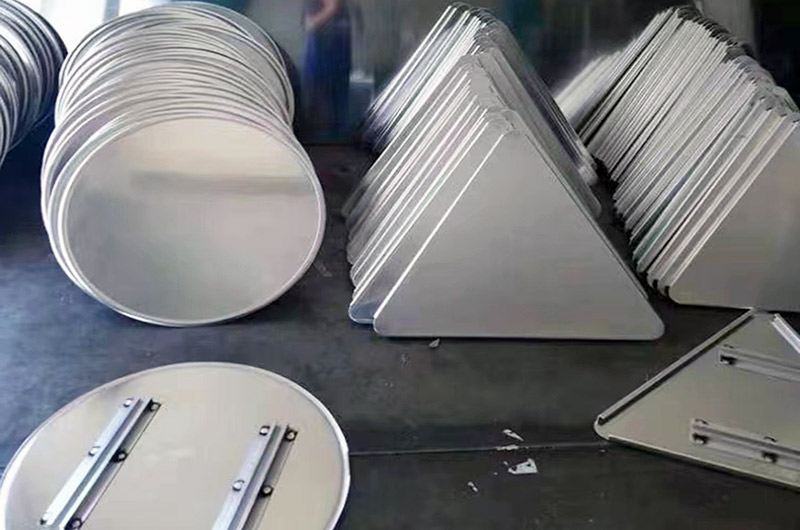

5005 Aluminum Sheet and Plate: Aluminum 5005 is often supplied in sheet and plate form. These are used in a variety of applications, including panels, signage, architectural elements, and general sheet metal work.

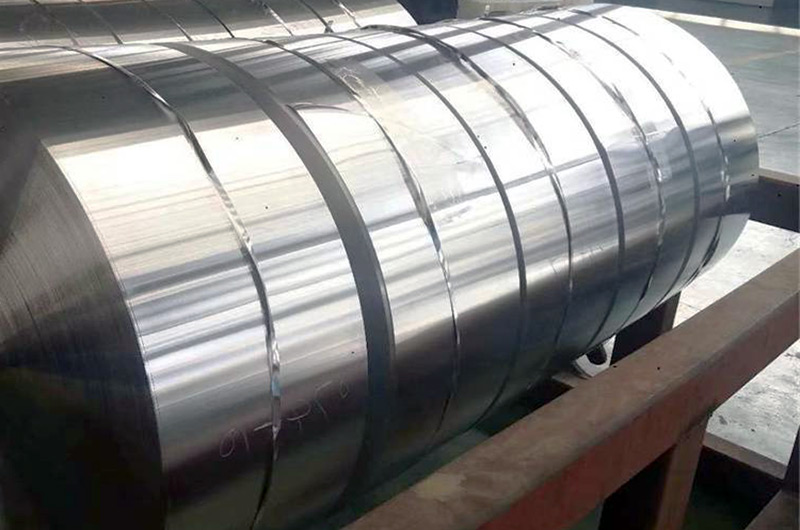

5005 Aluminum Coil: Aluminum coils of alloy 5005 are also available. Coils are convenient for manufacturing processes that involve continuous forming or bending, such as in the production of rain gutters or trim.

5005 Aluminum Extrusions: The alloy is used in extruded forms for applications where specific shapes are required. Extruded aluminum products can include angles, channels, tubes, and other customized shapes for various uses.

5005 Aluminum Hot Products

5005 Aluminum Wire: Aluminum wire made from alloy 5005 is used in various applications, including electrical conductors, where its moderate strength and corrosion resistance are beneficial.

5005 Aluminum Forgings: While less common than some other product forms, aluminum 5005 can also be used in forging applications to create custom shapes and components.

Anodized 5005 Aluminum: Aluminum 5005 can be anodized to enhance its corrosion resistance and provide a decorative finish. Anodized aluminum is often used in architectural applications, consumer goods, and electronics.

5005 Aluminum Mechanical Properties

  • Conditional yield strength σ0.2 (MPa): ≥125
  • Tensile strength: 155~195(MPa)
  • Elongation: ≥2(%)

5005 Aluminum Chemical Composition

The alloy composition of 5005 is:

  • Aluminum: 97.0 to 99.5%
  • Chromium: 0.1% max
  • Copper: 0.2% max
  • Iron: 0.7% max
  • Magnesium: 0.5% - 1.1%
  • Manganese: 0.2% max
  • Residuals: 0.15% max
  • Silicon: 0.3% max
  • Zinc: 0.25% max

The chemical composition above is very similar also to A5657 alloy.

5005 Aluminum Applications

  • 5005 aluminum plate for building decoration parts
  • 5005 curtain wall aluminum plate
  • 5005 aluminum alloy plate for instrument housing
  • 5005 aluminum plastic plate
  • 5005 aluminum plate for automobile inspection tools and fixtures
  • 5005 aluminum plate base material for oxidation
  • 5005 extra wide curtain wall aluminum plate
  • 5005 aluminum plate for exterior wall aluminum veneer

5005 aluminum alloy has medium strength and good corrosion resistance, and can also be used as conductors, cookware, instrument panels, shells and architectural decoration parts.

  • What is 5005 aluminum grade?
  • What is the difference between 5005 and 5052 aluminum?
  • Is 5005 aluminum a marine grade?
  • What is the difference between 3003 and 5005 aluminum?
  • 5005 grade aluminum
  • 5005 grade aluminum sheet
  • 5005 h32 aluminum
  • 5005a aluminum
  • 5005 h34 grade aluminum
  • 5005 vs 3003 aluminum
  • 5005 h34 aluminum
  • 5005 vs 5052 aluminum
  • 5005 aluminum
  • 5005 aluminum properties
  • 5005 H14 H34 3C Digital Shell Aluminum Sheet Strip
  • 5005 H112/H111/O Automotive Aluminum Profiles Extrusions

Aluminium Alloy Table

Al 1000 series (Pure) 1050, 1060, 1070, 1100, 1145, 1200, 1230, 1350
Al-Cu 2000 series 2011, 2014, 2017, 2024, 2124, 2219, 2319, 2397, 2519, 2524, 2618
Al-Mn 3000 series 3003, 3004, 3005, 3104, 3105
Al-Si 4000 series 4006, 4007, 4015, 4032, 4043, 4047, 4543
Al-Mg 5000 series 5005, 5019, 5050, 5052, 5059, 5083, 5086, 5154, 5182, 5252, 5356, 5454, 5456, 5754
Al-Mg-Si 6000 series 6005, 6010, 6013, 6060, 6061, 6063, 6065, 6082, 6101
Al-Zn 7000 series 7005, 7010, 7022, 7034, 7039, 7046, 7050, 7055, 7065, 7072, 7075
8000 series (Misc.) 8006, 8009, 8011, 8014, 8019, 8025, 8030, 8090, 8091, 8093, 8176
