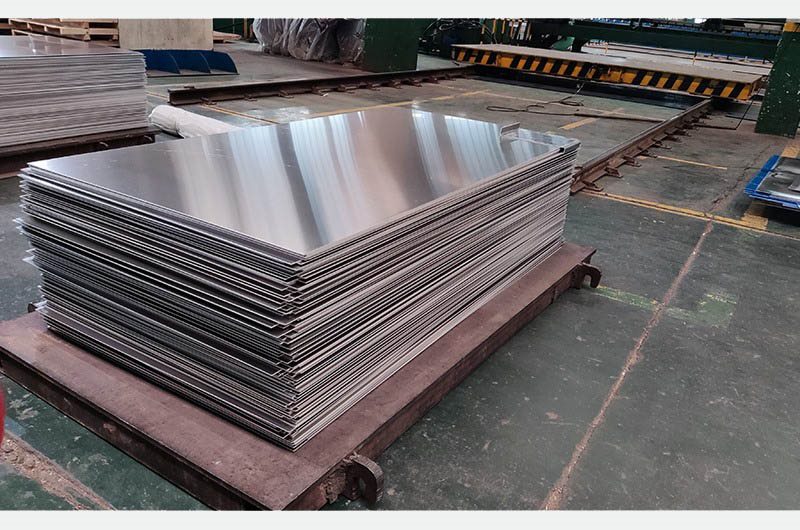

5754 aluminum plate has a long life, can withstand harsh environments, withstand harsh chemicals, salt water and other corrosive substances, and also has good formability.
The low density of 5754 plate makes it much lighter than steel or other metals with similar properties. Easy to handle, transport and install.
- Processing: has good machinability.
- Welding: has good weldability.
- Heat treatment: not heat treatable.
5754, as a deformable alloy, can be formed by rolling, extrusion, and forging. One drawback of 5754 aluminum is that it cannot be heat treated and cannot be used for casting.
5754 aluminum has good formability in a completely softened and annealed state, and can work hardened to a relatively high strength level. 5754 is slightly stronger than 5052 alloy, but has poor ductility and is used in various engineering and automotive applications.
5754 aluminum plate can be customized according to its specific needs, including : different sizes, thicknesses and finishes, as well as coatings, textures or patterns, etc.
Mechanical Properties of 5754 Aluminum Plate
| Temper | Thickness | Yield Strength | Tensile Strength | Elongation | Hardness1) | |
| Param | Rp0.2 | Rm | A50 | A | ||
| [mm] | [N/mm2] | [N/mm2] | [%] | [%] | HBW | |
| 5754 O/H111 | > 0.2–0.5 | ≥ 80 | 190–240 | ≥ 12 | - | 52 |
| > 0.5–1.5 | ≥ 80 | 190–240 | ≥ 14 | - | 52 | |
| > 1.5–3.0 | ≥ 80 | 190–240 | ≥ 16 | - | 52 | |
| > 3.0–12.5 | ≥ 80 | 190–240 | ≥ 18 | - | 52 | |
| > 12.5–100.0 | ≥ 80 | 190–240 | - | ≥ 17 | 52 | |
| 5754 H112 | ≥ 6.0–12.5 | ≥ 100 | ≥ 190 | ≥ 12 | - | 62 |
| > 12.5–25.0 | ≥ 90 | ≥ 190 | - | ≥ 10 | 58 | |
| > 25.0–40.0 | ≥ 80 | ≥ 190 | - | ≥ 12 | 52 | |
| > 40.0–80.0 | ≥ 80 | ≥ 190 | - | ≥ 14 | 52 | |
| 5754 H12 | > 0.2–0.5 | ≥ 170 | 220–270 | ≥ 4 | - | 66 |
| > 0.5–1.5 | ≥ 170 | 220–270 | ≥ 5 | - | 66 | |
| > 1.5–3.0 | ≥ 170 | 220–270 | ≥ 6 | - | 66 | |
| > 3.0–6.0 | ≥ 170 | 220–270 | ≥ 7 | - | 66 | |
| > 6.0–12.5 | ≥ 170 | 220–270 | ≥ 9 | - | 66 | |
| > 12.5–40.0 | ≥ 170 | 220–270 | - | ≥ 9 | 66 | |
| 5754 H14 | > 0.2–1.5 | ≥ 190 | 240–280 | ≥ 3 | - | 72 |
| > 1.5–6.0 | ≥ 190 | 240–280 | ≥ 4 | - | 72 | |
| > 6.0–12.5 | ≥ 190 | 240–280 | ≥ 5 | - | 72 | |
| > 12.5–25.0 | ≥ 190 | 240–280 | - | ≥ 6 | 72 | |
| 5754 H16 | > 0.2–0.5 | ≥ 220 | 265–305 | ≥ 2 | - | 80 |
| > 0.5–6.0 | ≥ 205 | 265–305 | ≥ 3 | - | 80 | |
| 5754 H18 | > 0.2–0.5 | ≥ 250 | ≥ 290 | ≥ 1 | - | 88 |
| > 0.5–3.0 | ≥ 250 | ≥ 290 | ≥ 2 | - | 88 | |
| 5754 H22/H32 | > 0.2–0.5 | ≥ 130 | 220–270 | ≥ 7 | - | 63 |
| > 0.5–1.5 | ≥ 130 | 220–270 | ≥ 8 | - | 63 | |
| > 1.5–3.0 | ≥ 130 | 220–270 | ≥ 10 | - | 63 | |
| > 3.0–6.0 | ≥ 130 | 220–270 | ≥ 11 | - | 63 | |
| > 6.0–12.5 | ≥ 130 | 220–270 | ≥ 10 | - | 63 | |
| > 12.5–40.0 | ≥ 130 | 220–270 | - | ≥ 9 | 63 | |
| 5754 H24/H34 | > 0.2–1.5 | ≥ 160 | 240–280 | ≥ 6 | - | 70 |
| > 1.5–3.0 | ≥ 160 | 240–280 | ≥ 7 | - | 70 | |
| > 3.0–6.0 | ≥ 160 | 240–280 | ≥ 8 | - | 70 | |
| > 6.0–12.5 | ≥ 160 | 240–280 | ≥ 10 | - | 70 | |
| > 12.5–25.0 | ≥ 160 | 240–280 | - | ≥ 8 | 70 | |
| 5754 H26/H36 | > 0.2–1.5 | ≥ 190 | 265–305 | ≥ 4 | - | 78 |
| > 1.5–3.0 | ≥ 190 | 265–305 | ≥ 5 | - | 78 | |
| > 3.0–6.0 | ≥ 190 | 265–305 | ≥ 6 | - | 78 | |
| 5754 H28/H38 | > 0.2–1.5 | ≥ 230 | ≥ 290 | ≥ 3 | - | 87 |
| > 1.5–3.0 | ≥ 230 | ≥ 290 | ≥ 4 | - | 87 | |
5754 Aluminum Plate Standards
- ASTM B209
- EN573
- EN485
5754 Aluminum Plate Advantages
- Excellent corrosion resistance
- High tensile strength
- Excellent weldability
5754 Aluminum Plate Disadvantages
- 5754 aluminum plate has two disadvantages: it is not heat treatable and cannot be used for casting applications.
- Slightly stronger than 5052 alloy, but less ductile
Corrosion Resistance
5754 aluminum alloy is a stronger material than 5251 and has good machinability. Its main property is the alloy's ability to provide excellent resistance to seawater and industrial chemical corrosion.
Equivalents of AA 5754
UNS A95754, ISO AlMg3, Aluminium 5754, AA5754, Al5754
5754 Aluminum Sheet Tolerance Chart
| Thickness | Tolerance Specified Width | ||
| Over | Including | ≤ 1250mm | > 1250mm ≤ 1600mm |
| ≥ 2.5mm | 4mm | ±.28mm | ±.28mm |
| 4mm | 5mm | ±.30mm | ±.30mm |
| 5mm | 6mm | ±.32mm | ±.32mm |
| 6mm | 8mm | ±.35mm | ±.40mm |
| 8mm | 10mm | ±.45mm | ±.50mm |
| 10mm | 15mm | ±.50mm | ±.60mm |
| 15mm | 20mm | ±.60mm | ±.70mm |
| 20mm | 30mm | ±.65mm | ±.75mm |
| 30mm | 40mm | ±.75mm | ±.85mm |
Typical 5754 Aluminum Plate
5754 H111 Aluminum Plate
5754 H111 This is a strain hardening stabilized alloy that has been annealed at low temperature to improve its formability. The H111 temper has medium strength and excellent corrosion resistance, making it suitable for marine and structural applications.
Compared with H22 temper, 5754 H111 aluminum plate has lower strength and hardness.
Suitable application areas : marine components, structural parts, chemical processing equipment
Specific application examples :
- Marine industry : hulls, decks and superstructures
- Transportation industry : truck and trailer bodies, fuel tanks
- Chemical industry : storage tanks, piping and process equipment
5754 H22 Aluminum Plate
This is a strain hardening stabilized alloy that is partially annealed to reduce internal stresses and increase strength. The H22 temper has higher strength and better corrosion resistance than H111, making it suitable for structural and marine applications.
5754 H22 aluminum plate has higher strength and hardness compared with H111 temper, the strength and hardness are higher than H111 and O temper
Suitable fields of application : structural parts, marine components, aerospace applications
Specific application examples :
- Structural industry : building facades, roofs and wall panels
- Marine industry : shipbuilding, hulls and other marine structures
- Aerospace Industry : Aircraft Fuselage, Wings and Other Components
5754 O Aluminum Plate
This is the annealed or fully softened state of the alloy. The O state has low strength and high formability, making it suitable for applications requiring good formability, such as cookware and packaging materials.
5754 O aluminum sheet has lower strength and hardness compared to H111 and H22 tempers
Suitable applications : cookware, packaging materials, chemical processing equipment
Specific application examples :
- Culinary industry : cookware, bakeware and utensils
- Packaging industry : aluminum foil packaging, food containers and beverage cans
- Chemical industry : storage tanks, piping and process equipment
How do different Tempers of 5754 compare?
5754 aluminum has H111, H114, H22, H24, and H26, and the two main differences depending on tempering are strength and hardness.
- When comparing H111 and H26, H26 is stronger and harder, with a maximum tensile strength of 200 for H111 and 305 for H26.
- H26 is more suitable for applications that require higher strength and impact resistance, while H111 may be more suitable for applications that require molding.
5754 Aluminum Plate Sheet Applications
| Aluminum plate | Alloy Temper | Specifications (thickness * width * length) | Common uses |
|---|---|---|---|
| 5754 Aluminum plate | 5754/H22 | 1.48*1220*2440 | Ordinary board |
| 5754 Aluminum plate | 5754/O | 3*1320*990 | Air storage tank |
| 5754 Aluminum plate | 5754/O | 3*1320*990 | Air storage tank |
| 5754 Aluminum plate | 5754/O | 3*1320*990 | Air storage tank |
| 5754 Aluminum plate | 5754/O | 3*1320*990 | Air storage tank |
| 5754 Aluminum plate | 5754/O | 3*1320*990 | Air storage tank |
| 5754 Aluminum plate | 5754/O | 3*1320*990 | Air storage tank |
| 5754 Aluminum plate | 5754/H114 | 5*2000*6000 | Small five tendons |
| 5754 Aluminum plate | 5754/H114 | 5*2000*6000 | Small five tendons |
| 5754 Aluminum plate | 5754/H114 | 5*2000*6000 | Small five tendons |
| 5754 Aluminum plate | 5754/H114 | 5*2000*6000 | Small five tendons |

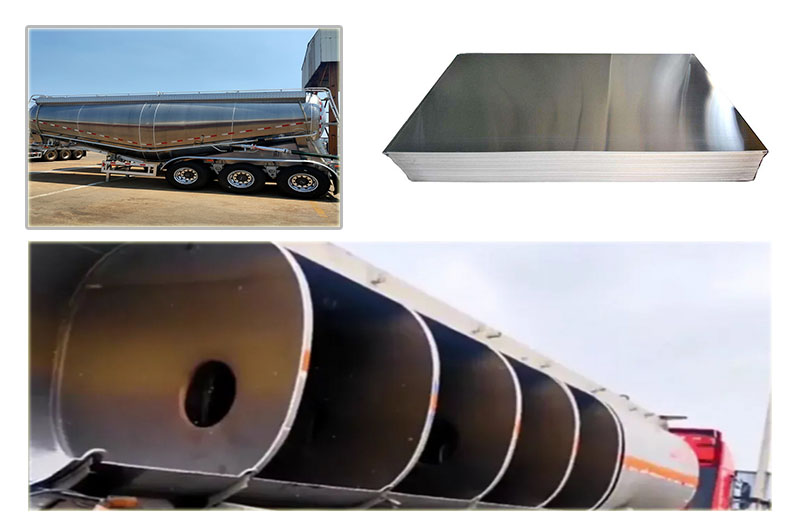

5754 Tanker Aluminum Plate
At present, tank trucks over 10 tons usually use 5754 aluminum alloy. The tank body made of this material will be 2.5 tons lighter than the carbon steel tank body. Of course, the cost is relatively high.
- Application : bulkhead, tank body
- Advantages : good corrosion resistance, weldability, easy processing and forming.
Click to learn more aboutAluminum Plate for Tank Truck
5754 O Aluminum Sheet for Engine Housing
The 5754 engine shell is mainly used for rain, sunshade, dustproof, waterproof, oil proof and other functions. After the shell is installed, it can not only play a better protective role, but also has a neater and more beautiful appearance.
- Material status : O
- Thickness : 0.1-500mm
- Width : 20-2650mm
- Performance characteristics : medium strength, excellent corrosion resistance, good weldability and processing performance, flat plate shape, good surface quality, smooth without cracks, good fatigue resistance
Van Skin 5754-H111
5754 H111 aluminum plate has a protective effect on the body, the overall weight is light, and the overall appearance is also more beautiful. Taking the van skin as an example, the 5754-H111 aluminum plate is mostly used.
- Material state : H111
- Thickness : 0.1-500mm
- Width : 20-2650mm
- Applicable fields : interior and exterior wall panels, floor panels, carriage panels, etc. of railway passenger cars
- Performance characteristics : Excellent weldability, medium strength, easy processing, good surface quality, smooth and no cracks, can be customized according to the actual needs of users with different thickness specifications, and the recycling rate is high.

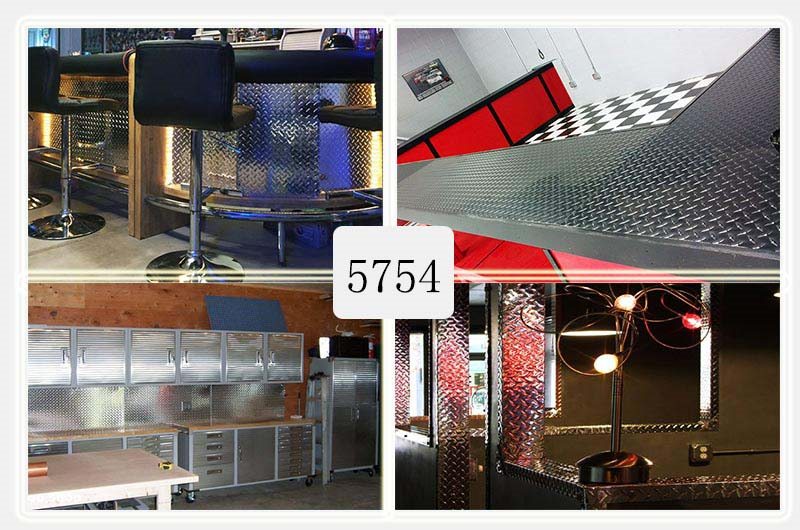

5754 Tread Aluminum Plate
5754 Tread Aluminum Plate has good corrosion resistance, hardness, and anti-rust performance. It can be used in humid environments such as ships and car lights. It does not require high mechanical properties. It has a certain load-bearing capacity and good anti-skid effect. The price/performance ratio is relatively low. high.
- Pattern : 1bar, 2bar, 3bar, 5bar,
- Material state : h114
- Thickness (mm) : 1.2-7.0
- Width (mm) : 100-1650
- Length(mm) : 500-16000
- Application : It can be widely used in many fields such as anti-slip flooring, decoration and decoration of ship boards, carriage boards, machinery, shipbuilding, transportation, construction, etc.
Click to learn more aboutAluminum Tread Plate
Chemical Composition of 5754 Aluminum Plate
| Elemant | Si | Fe | Cu | Mn+Cr | Mg | Zn | Ti | Others-Each | Others Total | Al Min |
| 5754 | 0.40 | 0.40 | 0.10 | 0.10-0.6 | 2.6-3.6 | 0.20 | – | 0.05 | 0.15 | Remainder |
5754 aluminum sheet FAQs
What is the difference between Aluminium 5754 and 5052?
The main differences between aluminum grades 5754 and 5052 lie in their alloy compositions, with 5754 having higher magnesium content for better corrosion resistance, while 5052 is stronger and more formable.
What is the difference between aluminium grade 5754 and 5251?
between 5754 and 5251, 5754 offers higher strength and better corrosion resistance, while 5251 is more formable and easier to weld.
What is the difference between 5754 and 5083 aluminum?
5754 vs 5083, 5754 has lower strength and better corrosion resistance, while 5083 is stronger and more suitable for marine applications.
Why is 5754 aluminum suitable for marine applications?
With its saltwater corrosion resistance, 5754 aluminum can withstand frequent exposure to marine environments without deteriorating or rusting.
Why is 5754 aluminum suitable for the automotive industry?
5754 aluminum has excellent tensile properties while maintaining high strength. It can be easily welded and anodized for an excellent surface finish. Because it is easy to form and process, this grade is ideal for doors, paneling, flooring, and other parts.
