5086 Aluminum Plate Sheet

Temper : H32, H116, H111 Dimensional accuracy

5086 aluminum sheet has a smooth and even surface, free from scratches, dents or other surface imperfections, ensuring suitability for its intended application.

Table of Contents
  1. 5086 Aluminum Plate Specifications
  2. Typical 5086 Aluminum Plate
    1. 5086 O Aluminum Plate
    2. 5086 H32 Aluminum Plate
    3. 5086 H111 Aluminum Plate
    4. 5086 H116 Aluminum Plate
    5. 5086 H321 Aluminum Plate
  3. Mechanical Properties of 5086 Aluminum Plate
  4. Aluminum 5086 Equivalent
  5. 5086 Aluminum Plate Applications
    1. 5086 Marine Aluminum Plate
    2. 5086 Aluminum Plate for Truck and Trailer
    3. 5083 Aluminum for Aircraft Fuel Tank
    4. 5086 Tread Aluminum Plate
    5. Aluminum Alloy 5086 for Chemical Processing and Storage
    6. Industrial and Architectural Applications
  6. Chemical Composition of 5086 Aluminum Plate
  7. What is the Difference between 5086 and 6061 Aluminum?
  8. 5086 VS 5083 Aluminum Plate

5086 is an aluminum-magnesium alloy with excellent marine climate resistance, especially seawater corrosion resistance, which has been recognized by everyone.

5086 uses magnesium as the main alloying element and belongs to the 5xxx series of aluminum alloys. Suitable for applications requiring high strength and salt water corrosion resistance.

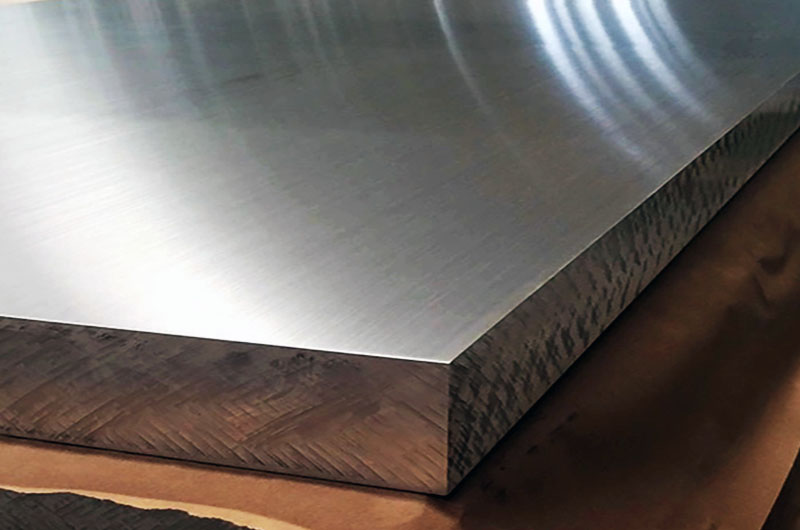

5086 Aluminum Plate

  • Good Corrosion Resistance
  • High Strength
  • Excellent Soldering Properties
  • Good Formability and Processability

5086 Aluminum Plate Specifications

5086 aluminum plate is available in a variety of sizes and thicknesses ranging from 0.016" to 0.5" thick. It can be ordered in various states.

  • Standard : ASTM B209, EN573, EN485
  • Status : H32, H34, H36, H38, H111, H112, H116, H321, O
  • Thickness : 0.016" - 4.000" (0.406mm - 101.6mm)
  • Width : 36" - 96" (914.4mm - 2438.4mm)
  • Length : 96" - 288" (2438.4mm - 7315.2mm)
5086 Aluminum Plate Typical Thickness
Alloy Plate Thickness Millimeter (mm)
5086 Aluminum Plate 1/8 inch 3.175 mm
5086 Aluminum Plate 3/16 inch 4.7625 mm
5086 Aluminum Plate 1/4 inch 6.35 mm
5086 Aluminum Plate 5/16 inch 7.9375 mm
5086 Aluminum Plate 3/8 inch 9.525 mm
5086 Aluminum Plate 1/2 inch 12.7 mm
5086 Aluminum Plate 5/8 inch 15.875 mm
5086 Aluminum Plate 3/4 inch 19.05 mm
5086 Aluminum Plate 1 inch 25.4 mm
5086 Aluminum Plate 1-1/4 inch 31.75 mm
5086 Aluminum Plate 1-1/2 inch 38.1 mm
5086 Aluminum Plate 2 inch 50.8 mm

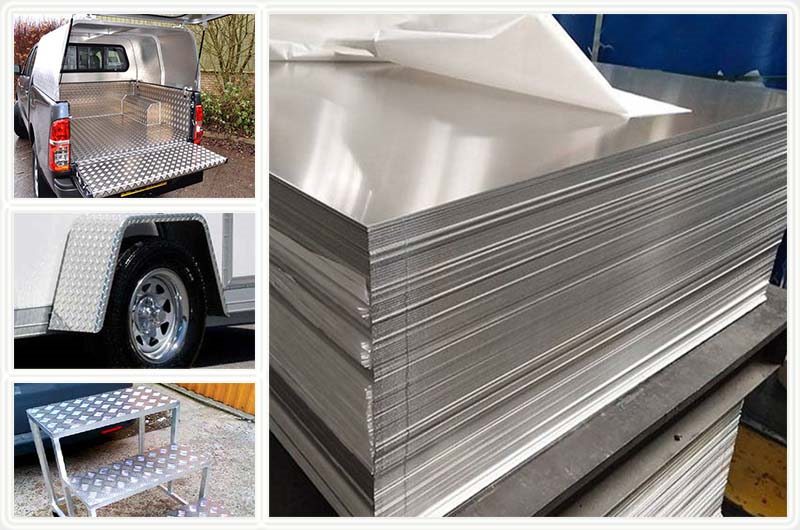

5086 Aluminum Sheet

Typical 5086 Aluminum Plate

5086 O Aluminum Plate

5086 O is the annealed state, which has the lowest strength and the highest ductility among all 5086 aluminum sheet states.

  • Advantages : high formability, good corrosion resistance, easy welding and machining
  • Applications : cladding, storage tanks, marine components and structures
  • Examples : hulls and decks, heat exchanger fins, liquid storage tanks
Properties 5086 O
Temper 5086 O
Tensile Strength 26 ksi (179 MPa)
Yield Strength 10 ksi (69 MPa)
Elongation 10%
Hardness Brinell 70

5086 H32 Aluminum Plate

5086 H32 has higher strength and higher corrosion resistance than 5086 O. It is commonly used in marine and truck/trailer applications due to its high strength and formability.

  • Advantages : good strength and corrosion resistance, high formability and weldability
  • Applications : Marine components, pressure vessels, structural parts and truck/trailer bodies
  • Examples : Marine bulkheads, fuel tanks, truck floors and aircraft fuel tanks
Properties 5086 H32
Temper 5086 H32
Tensile Strength 55 ksi (379 MPa)
Yield Strength 38 ksi (262 MPa)
Elongation 12%
Hardness Brinell 83

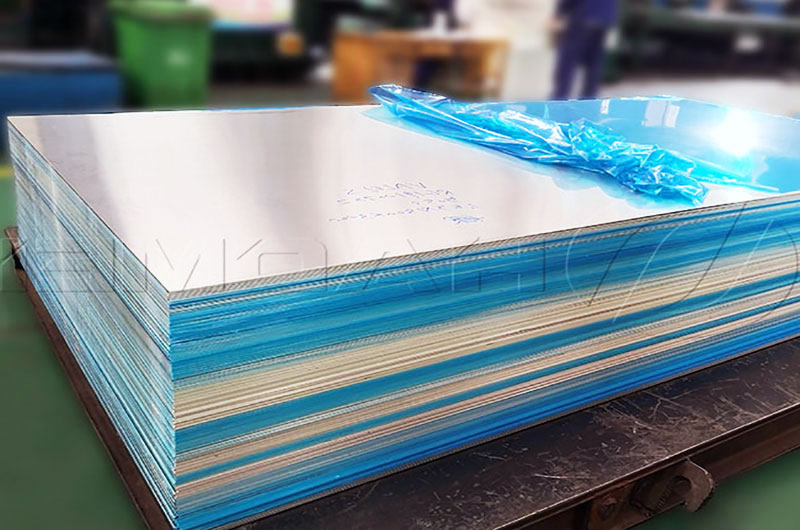

5086 H32 Aluminum Sheet

5086 H111 Aluminum Plate

5086 H111 (annealed and slightly strain hardened) aluminum sheet, this temper is annealed and slightly strain hardened.

  • Advantages : high formability and weldability, excellent corrosion resistance
  • Applications : Marine components, tanks, structures and pressure vessels
  • Examples : Shipbuilding, chemical processing equipment, and cryogenic storage tanks
Properties 5086 H111
Temper 5086 H111
Tensile Strength 27 ksi (186 MPa)
Yield Strength 18 ksi (124 MPa)
Elongation 18%
Hardness Brinell 46

5086 H116 Aluminum Plate

5086 H116 This state has been stabilized by strain hardening, with high strength and excellent corrosion resistance.

  • Advantages : high strength, corrosion resistance, good formability and weldability
  • Applications : Ship components, pressure vessels and structures
  • Examples : Structural beams for ship hulls, liquefied natural gas (LNG) pressure vessels, and marine terminals
Properties 5086 H116
Temper 5086 H116
Tensile Strength 55 ksi (379 MPa)
Yield Strength 38 ksi (262 MPa)
Elongation 12%
Hardness Brinell 83

5086 H321 Aluminum Plate

5086 H321 is similar to 5086 H116 but has been stabilized for increased resistance to stress corrosion cracking.

  • Advantages : Excellent strength and corrosion resistance, high formability and weldability
  • Applications : Ship components, pressure vessels and structures
  • Examples : shipbuilding, offshore oil rigs, and bridge structural members
Properties 5086 H321
Temper 5086 H321
Tensile Strength 55 ksi (379 MPa)
Yield Strength 38 ksi (262 MPa)
Elongation 12%
Hardness Brinell 83

The choice of the state of the 5086 aluminum plate depends on the specific application requirements. Factors such as strength, corrosion resistance, formability, weldability and machinability will all play a role in determining which state is best for a particular use case.

Mechanical Properties of 5086 Aluminum Plate

Property Value
Tensile strength 42 ksi (290 MPa)
Yield strength 21 ksi (145 MPa)
Elongation 12%
Hardness Brinell 95

Aluminum 5086 Equivalent

5086 Aluminum is an alloy commonly used in marine applications due to its high corrosion resistance and strength. Several different aluminum alloys are considered equivalent to 5086, including :

  • Aluminum 5083 : This alloy is very similar to 5086 in properties and applications and is generally considered equivalent.
  • Aluminum 5456 : This alloy has similar corrosion resistance to 5086 and is also used in marine applications. It is commonly used in welded structures and pressure vessels.
  • Aluminum 5082 : This alloy has good corrosion resistance and is commonly used in marine and shipbuilding applications. It is also used in structural and architectural applications.
  • Aluminum 5052 : This alloy has good corrosion resistance and is commonly used in marine and automotive applications. It is also used in sheet metal fabrication and general construction.

可能你想看

5086 Aluminum Plate Applications

5086 Marine Aluminum Plate

5086 aluminum sheet is commonly used in hulls, superstructures and other marine applications due to its high strength, good corrosion resistance and good weldability. It is also used on offshore oil rigs and other harsh marine environments.

  • 5086 Marine Aluminum Sheet Temper : 5086 H116, 5086 H321
  • 5086-H116 is used in hulls, superstructures and other marine applications for its high strength, excellent corrosion resistance and good weldability.
  • In offshore oil rigs, 5086 H321 is used for structures and components requiring excellent resistance to stress corrosion cracking.

Click to learn more aboutMarine Grage Aluminum Plate

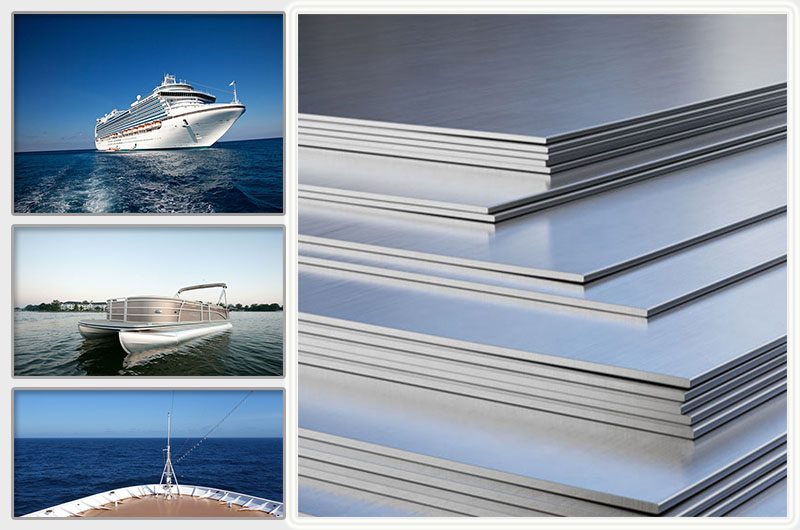

5086 Marine Aluminum Sheet

5086 Aluminum Plate for Truck and Trailer

5086 aluminum sheet is used for truck and trailer bodies, floors and other applications that require high strength, good formability and excellent corrosion resistance.

  • Temper : 5086 H32
  • Application : Used for truck bed, wall, body, floor.

Click to learn more aboutAluminum Plate for Tank Truck

5083 Aluminum for Aircraft Fuel Tank

5086 aluminum sheet is used in aerospace applications for its high strength to weight ratio, good formability, and excellent corrosion resistance.

  • Temper : 5086 H32, 5086 H116 are commonly used in aerospace and aircraft applications.
  • Application : 5086 H116 is used in aircraft fuel tanks and hydraulic oil pipes.

Click to learn more aboutAircraft Aluminum Plate

5086 Tread Aluminum Plate

5086 patterned aluminum plate is an aluminum plate with a raised diamond pattern on its surface to improve traction and provide slip resistance.

  • Pattern : diamond, 1bar, 2bar, 3bar, 5bar
  • Temper : H116, H321, H114
  • Application : For floors, ramps and stairs on boats, trailers and trucks.

Click to learn more aboutAluminum Tread Plate

5086 Tread Aluminum Plate

Aluminum Alloy 5086 for Chemical Processing and Storage

5086 Aluminum Sheet is used in chemical processing equipment and storage tanks due to its resistance to many chemicals and excellent corrosion resistance.

  • Temper : 5086 H111
  • Application : 5086 H111 is used in chemical processing equipment such as heat exchangers and reaction vessels.

Industrial and Architectural Applications

5086 aluminum sheet is used in various industrial and construction applications that require high strength, good formability, and excellent corrosion resistance, such as pressure vessels, heat exchangers, building panels, etc.

  • Temper : 5086 H116 , 5086 H32
  • Applications :
    • 5086 H116 for pressure vessels and heat exchangers
    • 5086 H32 is used in building panels and building facades.

Chemical Composition of 5086 Aluminum Plate

Element Composition Range
Aluminum (Al) 95.4-96.7%
Magnesium (Mg) 4.0-4.9%
Manganese (Mn) 0.15% max
Chromium (Cr) 0.05-0.25% max
Iron (Fe) 0.5% max
Silicon (Si) 0.4% max
Zinc (Zn) 0.25% max
Titanium (Ti) 0.15% max
Copper (Cu) 0.1% max
Other elements 0.05% max each, 0.15% max total

What is the Difference between 5086 and 6061 Aluminum?

  • Composition : 5086 aluminum is an alloy containing magnesium while 6061 aluminum is an alloy containing magnesium and silicon. This difference in composition gives 5086 aluminum greater corrosion resistance, especially in marine environments.
  • Strength : 6061 aluminum has a higher tensile strength than 5086 aluminum, making it more suitable for applications where strength is critical.
  • Weldability : 6061 aluminum has better weldability than 5086 aluminum and is easier to weld.
  • Machinability : 6061 aluminum has better machinability than 5086 aluminum, and it is easier to process into complex shapes and parts.
  • Application :
    • 5086 aluminum is commonly used in marine applications such as hulls and decks due to its corrosion resistance.
    • 6061 aluminum is commonly used in structural applications such as aircraft and buildings for its strength and workability.

5086 VS 5083 Aluminum Plate

Both 5086 and 5083 aluminum are marine-grade alloys commonly used in the shipbuilding industry. While they share many similarities, they also have some key differences :

  • Composition : Both alloys contain magnesium as the main alloying element, but 5086 has slightly more magnesium than 5083. This gives 5086 improved corrosion resistance in harsh marine environments.
  • Strength : 5083 aluminum is stronger than 5086 and more suitable for structural applications.
  • Weldability : 5086 aluminum is more weldable than 5083 due to the lower magnesium content.
  • Formability : 5086 aluminum has better formability than 5083, and it is easier to bend and form without cracking.
  • Applications : 5086 aluminum is commonly used for hulls and decks, while 5083 is used for pressure vessels, tanks and structural applications.
