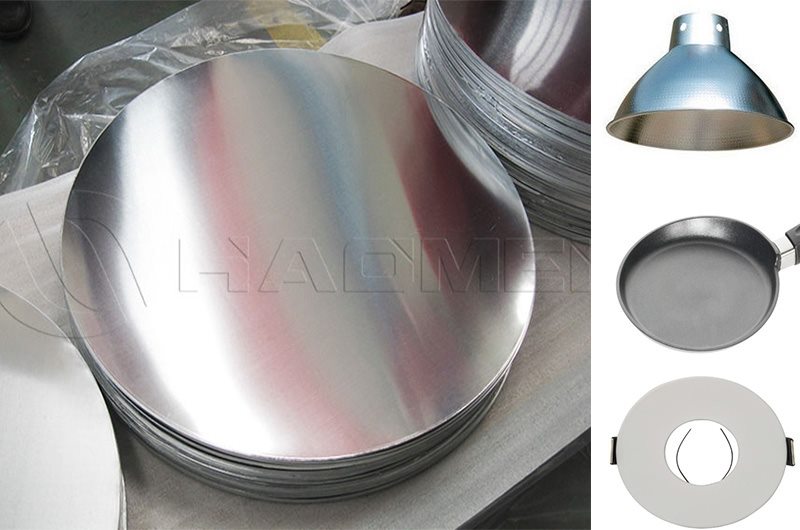

1050 Aluminum Disc circle is an aluminum disc made of 1050 aluminum alloy. This alloy is a commercially pure aluminum grade, which means it is 99.5% aluminum and contains no other major alloying elements. 1050 aluminum alloy has excellent corrosion resistance, high thermal conductivity, good electrical conductivity, and very good ductility.
The most commonly used wafer is 1050 aluminum disc, and the aluminum content must reach 99.5% or more. Because 1050 aluminum discs have good toughness, they are suitable for stamping processing.
1050 aluminum round has high aluminum content, is the most widely used alloy on the market, and is relatively cheap.
Aluminum discs are used in a variety of applications including cookware, lighting reflectors, traffic signs and electronic housings. They are usually manufactured through a process called stamping, which involves using a die to press aluminum sheets into a circular shape.

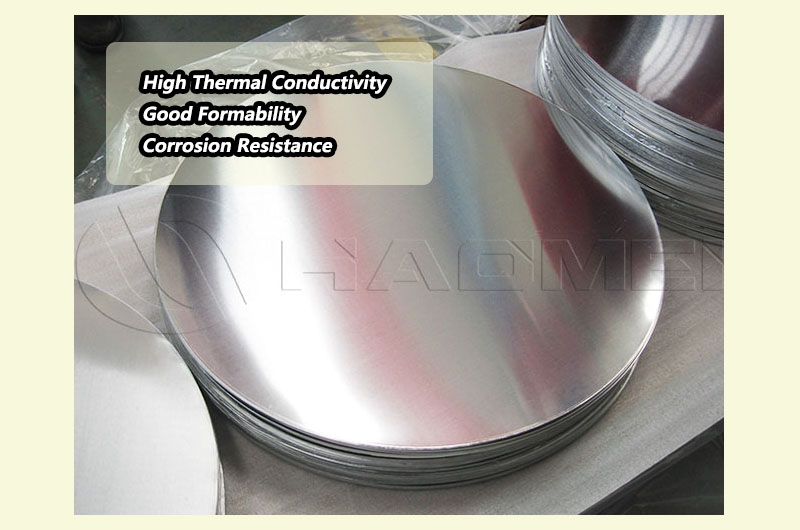

1050 Aluminum Disc Circle Characteristic
1050 aluminum pan is an aluminum ring made of 99.5% pure aluminum. It is a popular material used in a variety of applications, including cookware, lighting reflectors, and chemical equipment, among others. Here are some key features of 1050 aluminum pans :
- High thermal conductivity : 1050 aluminum pans have excellent thermal conductivity, making them ideal for cookware and other heat transfer applications.
- Good Formability : 1050 aluminum pans are easy to form and can be formed into various sizes and shapes without cracking or breaking.
- Corrosion resistance : 1050 aluminum pan has good corrosion resistance and is suitable for use in harsh environments.
- Conductivity : 1050 aluminum pans have good electrical conductivity, making them suitable for electrical and electronic applications.
- Non-toxic and food safe : 1050 aluminum pans are non-toxic and food safe, making them a popular material for cookware.
- Low strength : 1050 aluminum pans have low strength and are not suitable for high stress applications.
1050 aluminum pans are available in a variety of sizes and thicknesses, and can be customized to meet specific application requirements. When selecting 1050 aluminum pans, the specific application and required specifications must be considered to ensure optimum performance and safety.
1050 Aluminum Disc Circle Specifications
The parameters of 1050 pure aluminum discs can vary according to the specific requirements of the application. However, the following are some general parameters of 1050 pure aluminum discs :
- Alloy : 1050 pure aluminum
- Status : O, H12, H14, H16, H18, H22, H24, H26, H28
- Thickness : 0.3mm - 6.0mm
- Diameter : 100mm - 1200mm
- Production technology : Hot rolling, cold rolling, forging, casting, etc.
- Package : Standard export packaging: wooden pallet + cardboard + steel belt
- Surface treatment : grinding, Anodized, Polished, Coated, Embossed, etc.
- Applications : cookware, lampshades, traffic signs, chemical containers, electronic products, etc.
1050 Aluminum Circle Diameter Tolerance
1050 aluminium discs possess good ductility, the final products size can be slightly different because of the temper, But the tolerance range is very small.
| Nominal Diameter | Tolerance |
|---|---|
| Multiple of 5mm | +/- 0.5mm |
| Not multiple of 5mm | +/- 3.0mm |
1050 Aluminum Circle Typical Thickness
| Product | Thickness |
|---|---|
| 1050 Aluminum Circle | 1.0mm |
| 1050 Aluminum Circle | 1.5mm |
| 1050 Aluminum Circle | 2.0mm |
| 1050 Aluminum Circle | 2.5mm |
| 1050 Aluminum Circle | 3.0mm |
1050 Aluminum Round Quality
- 1. 1050 aluminum plate, deep drawing quality and spinning quality.
- 2. Excellent reflectivity, conducive to polishing.
- 3. The anodizing quality is good and suitable for hard anodizing and enamel.
- 4. The surface is smooth, the edges are smooth, hot-rolled quality, the grains are small, and there is no looper after deep drawing.
The surface of the 1050 aluminum round is completely free of white rust, oil spots, roll marks, edge damage, bends, dents, holes, broken wires, scratches and other defects.
Equivalent to 1050 Aluminum
A1050, 1050a, aa1050, 1050aa, al1050, al1050a, 1050 aa, aa 1050, jis a1050p, al1050 class, aw1050, en1050 grade etc
1050 Aluminum Disc Surface Treatments Type
1050 Anodized Aluminum Discs
Anodized 1050 aluminum discs find use in various applications, including cookware, lighting fixtures, reflectors, signs, and decorative elements. The anodized surface provides both protection and an attractive appearance.
Advantages of 1050 Anodized Aluminum Discs
- 1. Enhanced Corrosion Resistance : Anodizing creates a durable oxide layer on the surface, significantly improving corrosion resistance. This makes 1050 anodized aluminum discs suitable for outdoor and marine applications.
- 2. Improved Durability : The anodized layer is harder than the base aluminum, providing increased wear resistance. This is advantageous in applications where the discs may experience abrasion.
- 3. Attractive Appearance : Anodized aluminum has a sleek, matte finish that can enhance the aesthetic appeal of the discs. It can also be dyed to achieve various colors or left natural for a silver appearance.
- 4. Non-Toxic : Anodized aluminum is safe for food contact, making it suitable for cookware and other food-related applications.
Disadvantages of 1050 Anodized Aluminum Discs
Cost : Anodizing is a more involved and expensive process compared to some other surface treatments, which can increase the overall cost of the discs.

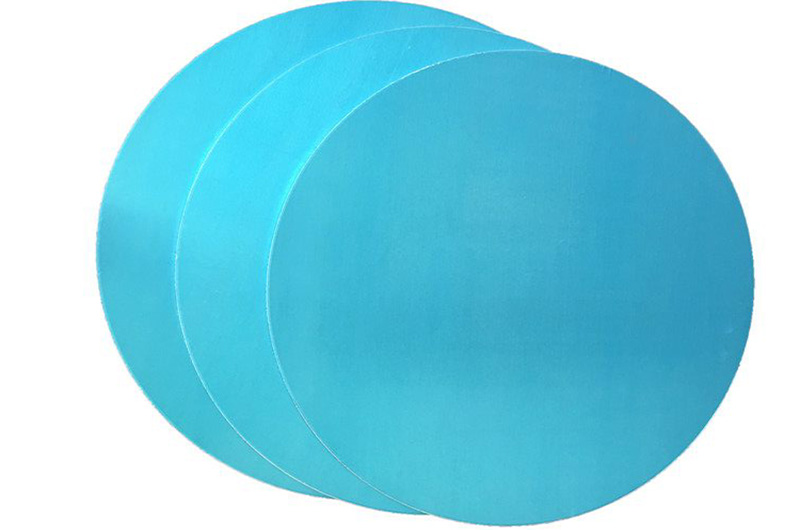

1050 Color Coated Aluminum Discs
Color coated 1050 aluminum discs are used in a wide range of applications where both corrosion resistance and visual appeal are important. Common applications include cookware, signage, architectural elements, and decorative pieces.
Advantages of 1050 Color Coated Aluminum Discs
- 1. Customizable Appearance : Color coating allows for a wide range of color and texture options. This customization makes it suitable for applications where aesthetics play a crucial role.
- 2. Protection : Color coating not only adds visual appeal but also provides a protective layer that can enhance corrosion resistance and durability.
- 3. Cost-Effective Customization : Compared to anodizing, color coating can offer customization at a lower cost, making it a cost-effective option for achieving specific looks.
Disadvantages of 1050 Color Coated Aluminum Discs
- 1. Less Corrosion Resistance : While color coating can improve corrosion resistance, it may not be as effective as anodizing, especially in harsh environments.
- 2. Scratch Vulnerability : The color coating may be susceptible to scratching or chipping, particularly in high-wear applications.
- 3. Complex Repair : Repairing damaged or scratched color-coated surfaces can be more challenging than with anodized surfaces.
Both anodized and color coated 1050 aluminum discs offer improved durability and visual appeal compared to untreated aluminum, making them suitable for a variety of decorative and functional applications. The choice between them depends on the specific requirements of your project, with anodized discs providing enhanced corrosion resistance and color-coated discs offering customization options.

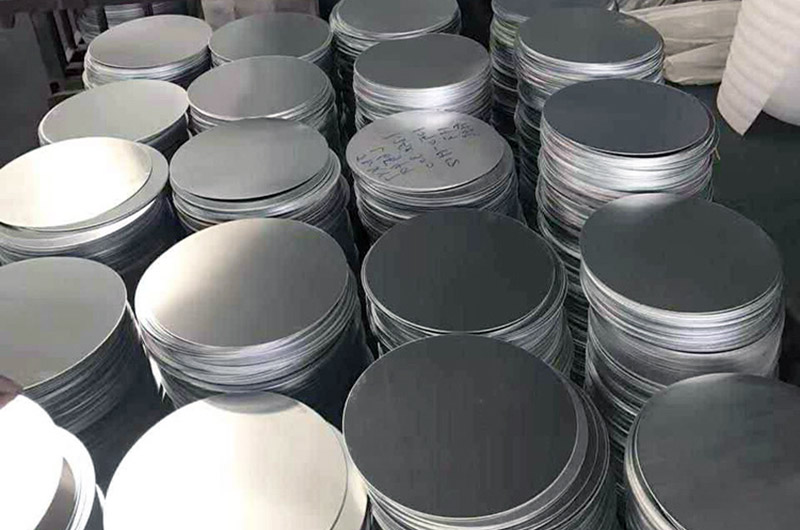

Typical 1050 Aluminum Discs
| Temper | HO | H12 | H14 |
|---|---|---|---|
| Thickness Range (mm) | 0.36-5 | 0.5-5 | 0.5-5 |
| Tensile Strength (MPa) | 60-100 | 70-120 | 85-120 |
| Elongation (%) | ≥ 20 | ≥ 4 | ≥ 2 |
1050 H12 Aluminum Disc Circle
1050 H12 aluminum disc : semi-hard state, lower hardness, lower than 1050 H14. It has good formability, easy to form and process, and is suitable for manufacturing products with large curvature.
- Specifications : 200 - 1200mm in diameter and 0.3 - 10mm in thickness.
- Application : It is usually used in the manufacture of kitchen utensils, lamps and electrical housings, etc.
1050 H14 Aluminum Disc Circle
1050 H14 aluminum disc : semi-hard, moderate hardness, slightly higher than 1050 H12. It has a smooth surface and good formability, making it suitable for products with complex shapes.
- Specifications : generally 200 - 1200mm in diameter and 0.5 - 6mm in thickness.
- Application : It is usually used to make deep drawn products, such as pots, pot lids and sinks.
1050 H18 Aluminum Disc Circle
1050 H18 aluminum disc : hard state, higher hardness, higher than 1050 H14. Its surface hardness is high and its formability is poor, so it is suitable for the manufacture of simpler products.
- Specifications : generally 200-1200mm in diameter and 0.5-10mm in thickness.
- Application : It is usually used to manufacture products requiring high strength and wear resistance such as shells, pipes and containers.
1050-O : Fully Annealed, Softest State, Temper O is a fully annealed aluminum round, softest state, Temper O is often used in the manufacture of bodywork or deep drawn qualities.
| Temper | Thickness(mm) | Tensile Strength(Mpa) | The Yield Strength(Mpa) | elongation(%) | hardness(HV) |
|---|---|---|---|---|---|
| 1050 0 | >0.2-0.5 | 60-100 | ≥15 | ≥20 | 20-30 |
| >0.5-1.0 | ≥30 | ||||
| >1.0-4.0 | ≥35 | ||||
| 1050 H22 | >0.2-0.5 | 80-120 | ≥60 | ≥12 | 30-40 |
| >0.5-1.0 | ≥15 | ||||
| >1.0-4.0 | ≥18 | ||||
| 1050 H24 | >0.2-0.5 | 95-135 | ≥70 | ≥6 | 35-45 |
| >0.5-1.0 | ≥8 | ||||
| >1.0-4.0 | ≥10 | ||||
| 1050 H26 | >0.2-0.5 | 110-155 | ≥75 | ≥2 | 43-55 |
| >0.5-1.0 | ≥4 | ||||
| >1.0-4.0 | ≥6 | ||||
| 1050 H18 | >0.2-0.5 | ≥125 | ≥85 | ≥2 | 50-65 |
| >0.5-1.0 | ≥3 | ||||
| >1.0-4.0 | ≥4 |

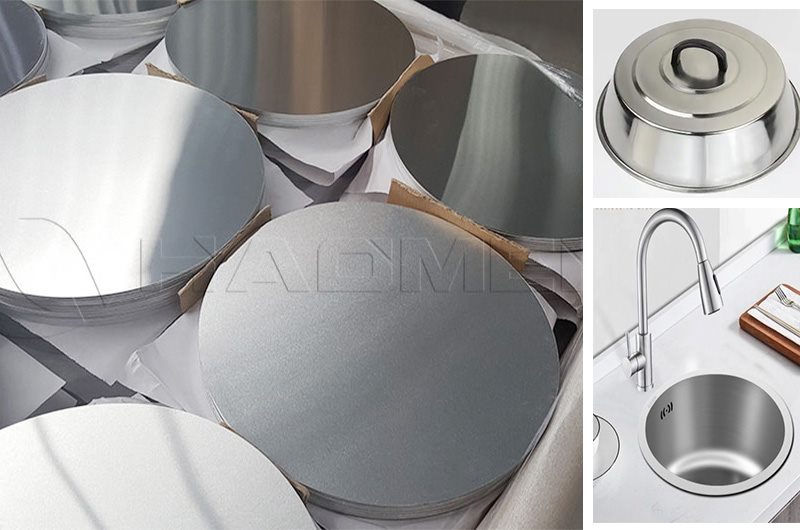

1050 Aluminum Discs Applications
1050 aluminum discs are commonly used in daily necessities, lighting fixtures, reflectors, decorations, chemical containers, heat sinks, signs, electronics, lamps, nameplates, electrical appliances, stamping parts and other products.
| Type | Applications |
|---|---|
| Common Cookware | Pan Lid, Kettle, Induction Cooker Cladding, etc. |
| Lamps and Lantern Parts | Lamp shade, Lamp Cup, etc. |
| Construction Material | Traffic Guideboard, Building Decorations, etc. |
| Other |
Transportation, Electronic Appliance, Consumer Goods, etc. |
- Kitchen utensils : 1050 aluminum discs can be made into various kitchen utensils such as pots, pot covers, stew pots, and woks.
- Lamps : 1050 aluminum discs can also be used to make lamps, lampshades, etc.
- Transportation : 1050 aluminum discs can be used to make wheels, motorcycle wheels, etc.
- Electrical equipment : 1050 aluminum discs can be used to manufacture shells and radiators for various electrical equipment.
- Chemical containers : 1050 aluminum discs can be made into various chemical containers, storage tanks, etc.
1050 Aluminum Circle CC/DC
CC 1050 Aluminum Disc Circle
CC stands for Continuous Casting, which involves the continuous pouring of molten aluminum into molds to create strands. The aluminum billets are then rolled into plates, which are further processed to produce aluminum rounds.
- Advantages : CC aluminum round is characterized by uniform grain structure, good surface finish and good formability.
- Applications : Typically used in applications requiring high formability and good surface finish, such as cookware, lighting reflectors, and traffic signs.
DC 1050 Aluminum Disc Circle
DC stands for Direct Casting, which involves pouring molten aluminum into a mold and allowing it to cool and solidify. The solidified aluminum is then rolled into sheets, which are further processed to produce aluminum rounds.
- Advantages : DC aluminum rounds are characterized by a slightly coarser grain structure compared to CC rounds, but have better mechanical properties.
- Application : More suitable for applications requiring high strength and durability, such as pressure vessels and automotive parts.
The choice between CC and DC 1050 rims depends on specific application requirements. CC rounds are more suitable for applications requiring high formability and good surface finish, while DC rounds are more suitable for applications requiring high strength and durability.
Why is 1050 Aluminum a Popular Metal for Cookware?
- 1050 aluminum has good thermal conductivity, which allows it to transfer heat quickly and evenly, so that the food can be heated more evenly, reducing the possibility of scorching or burning the food surface.
- 1050 aluminum has good corrosion resistance, can resist the corrosion of acidic or alkaline components of food, and will not chemically react with food.
- 1050 aluminum is very lightweight and weighs less than cast iron and stainless steel, making the manufactured cookware much easier to carry and use.
- 1050 aluminum can be processed by cold drawing, deep drawing, etc. to manufacture cookware of various shapes and sizes, suitable for different kitchens and cuisines.
- 1050 aluminum is relatively inexpensive to manufacture, making it an affordable cookware material choice.
Chemical Compositions of 1050 Aluminium Circle
| Alloy | 1050 |
|---|---|
| Si | 0.25 |
| Fe | 0.4 |
| Cu | 0.05 |
| Mn | 0.05 |
| Mg | 0.05 |
| Cr | - |
| Zn | 0.05 |
| Ti | 0.05 |
| Others:Each | 0.03 |
| Others:Total | - |
| Al:Min. | 99.5 |
Our Aluminum Disc Circle comes in a variety of alloys, such as alloy grade 3003, AA 1050, alloy grade 1070 A1050 O, AA 1100 3003 1060 1200 H O alloy, as well as AA3003 deep drawing quality hard anodized quality, alloy grade 3003 hard anode Oxidation, Alloy 3003 H12, 3003 O tempered hard anodizing, 1100 3003 anodizing, Alloy 1100 H O grade, etc.
The product process of the 1050 aluminum circle
- Prepare the master alloys
- Melting furnace:put the alloys into the melting furnance
- D.C.cast aluminum ingot: To made the mother ingot
- Mill the aluminum ingot: to make the surface and side smooth
- Heating furnace
- Hot rolling mill: made the mother coil
- Colding rolling mill: the mother coil was rolled as the thickness you want to buy
- Punching process: become the size what you want
- Annealing furnace: hot annealed change the temper
- Final inspection
- Packing: wooden case or wooden pallet
- Delivery

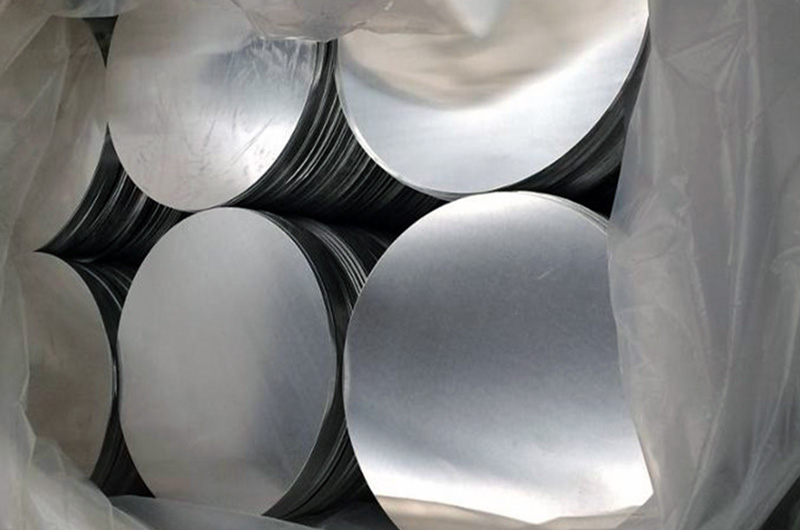

1050 aluminum circle packaging
1050 Aluminum circle can be packed in export standard, covered with brown paper and plastic film. Finally, the Aluminium Round is fixed on a wooden pallet/wooden case. An aluminum disk with good quality can improve the processing yield.
Haomei Aluminum is a professional aluminum round aluminum disc manufacturer and supplier, our aluminum round has competitive price and quality. Free samples and customization can be accepted, and the production and delivery days of our aluminum round aluminum plates are guaranteed.
1050 Aluminum Disc Circle vs 1060 Aluminum Disc Circle
1050 and 1060 aluminum disc circles are both pure aluminum alloys, and they share many similarities, but there are some subtle differences between them. Here's a comparison:
1. Alloy Composition
1050 Aluminum: It is a commercially pure aluminum alloy, containing 99.5% aluminum and minimal alloying elements. It is highly ductile and has excellent corrosion resistance, making it suitable for various applications.
1060 Aluminum: Similarly, it is a commercially pure aluminum alloy, containing 99.6% aluminum and minimal alloying elements. It is also highly ductile and has excellent corrosion resistance.
2. Key Properties
1050 Aluminum: Known for its high electrical conductivity, excellent formability, corrosion resistance, and weldability.
1060 Aluminum: Shares similar properties with 1050 aluminum, including high electrical conductivity, excellent formability, corrosion resistance, and good weldability.
3. Common Applications
1050 Aluminum Disc Circles: Widely used in cookware, lighting fixtures, reflectors, signs, traffic signs, and electrical components due to its excellent formability and electrical conductivity.
1060 Aluminum Disc Circles: Used in similar applications, including cookware, lighting fixtures, reflectors, and electrical components, for the same reasons as 1050 aluminum.
4. Weldability
Both 1050 and 1060 aluminum are known for their good weldability and can be easily welded using various welding methods, such as MIG and TIG welding.
5. Differences
The primary difference between these alloys is the slight variation in their aluminum content. 1060 contains a slightly higher percentage of aluminum (99.6%) compared to 1050 (99.5%). This small difference is not typically significant for most applications and often does not result in noticeable differences in properties.
In summary, 1050 and 1060 aluminum disc circles are very similar in terms of their properties, applications, and characteristics. The choice between them may come down to availability and specific requirements for your application, but for most practical purposes, either alloy can be used interchangeably.
