3003 Oil Tanker Aluminum Checkered Plate

Updated : Jan. 26, 2024
Table of Contents
  1. 3003 aluminum checkered plate for oil tanker parameters
    1. Specifications of 3003 aluminum checkered plate for oil tanker
    2. Typical Temper of 3003 aluminum checkered plate for oil tanker
    3. Type 3003 aluminum checkered plate for oil tanker
  2. Chemical composition of 3003 aluminum checkered plate for oil tanker
  3. Haomei Aluminum 3003 Oil Tanker Aluminum Checkered Plate Applications
  4. 8 Reasons Oil Tanker Tread Checkered Plate choose 3003 aluminum

3003 Oil Tanker Aluminum Checkered Plate provides traction in tanker applications and is commonly used in tanker Walkways and Platforms, Stair Treads, Decking and Flooring, Loading and Unloading Areas, Toolboxes and Storage Compartments.

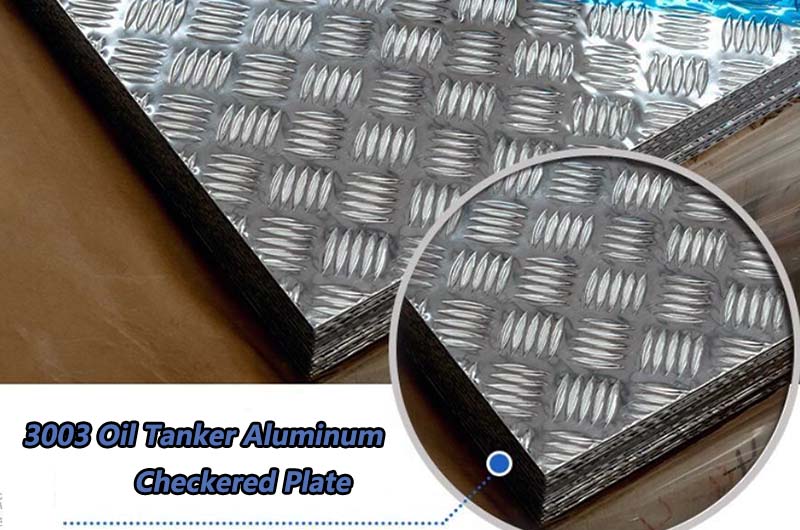

3003 Oil Tanker Aluminum Checkered Plate

The 3003 aluminum checkered plate also has a lower weight, helping to reduce the overall weight of the tanker.

3003 aluminum checkered plate for oil tanker parameters

Specifications of 3003 aluminum checkered plate for oil tanker

Bottom Thickness Muscle high Width Length
2.0-4.0mm 1mm 1000-1600mm 2000-10000mm
1.5-4.5mm 1mm
1.5-4.5mm 1mm
1.0-4.5mm 0.3mm
1.0-4.0mm 0.7mm

Typical Temper of 3003 aluminum checkered plate for oil tanker

When specifying aluminum grating for tankers or any other application, ensure that the selected condition meets the mechanical properties and performance standards required for the intended use. The Temper of 3003 aluminum checkered plate has the following types, not all of them are included.

  • 3003 h14 aluminum checkered plate
  • 3003 h22 aluminum checkered plate
  • 3003 o aluminum checkered plate
  • 3003 h114 aluminum checkered plate

3003 h14 aluminum checkered plate

This is a strain-hardening state that slightly increases strength and improves mechanical properties. The "H" in H14 represents strain hardening, and "14" represents strain hardening to 1/2 hard state. This state is commonly used for molding and manufacturing.

3003 h22 aluminum checkered plate

Similar to H14, H22 is also in a strain-hardened state. The "22" in H22 means it is strain hardened and partially annealed, providing a good balance of strength and workability. This state is suitable for applications requiring moderate strength and excellent formability.

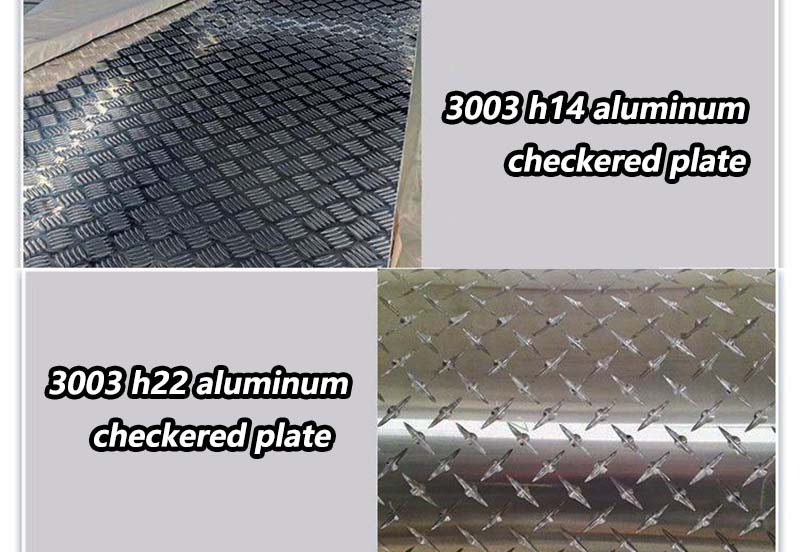

3003 h14 h22 aluminum checkered plate

Type 3003 aluminum checkered plate for oil tanker

3003 aluminum checkered plate for oil tanker Available in a variety of different patterns, these blobs not only add visual appeal but also serve a functional purpose, especially in applications where a non-slip surface is critical.

The choice of pattern may depend on factors such as intended use, aesthetic preferences, and the specific functional requirements of the application in question.

  • Orange peel 3003 aluminum checkered plate
  • Lentil 3003 aluminum checkered plate
  • Diamond 3003 aluminum checkered plate
  • 5 Bar 3003 aluminum checkered plate
  • 3 Bar 3003 aluminum checkered plate

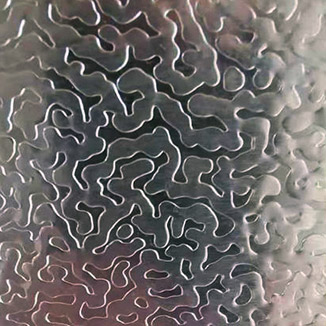

  • Orange Peel Aluminum Checkered Plate

    Orange Peel Aluminum Checkered Plate

    This pattern resembles the texture of an orange peel, with small, raised bumps on the surface. It is not only decorative but also provides an anti-slip surface, making it suitable for applications where slip resistance is important.

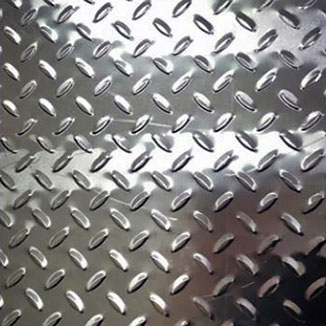

  • Lentil Aluminum Checkered Plate

    Lentil Aluminum Checkered Plate

    The lentil pattern is characterized by small circular shapes arranged in a regular pattern across the surface of the plate. This design also offers anti-slip properties and is commonly used in flooring, stairs, and other applications.

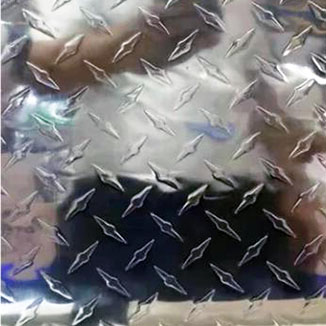

  • Diamond Aluminum Checkered Plate

    Diamond Aluminum Checkered Plate

    The diamond pattern is one of the most common and recognizable checkered plate patterns. It features raised diamonds or rhombuses on the surface, providing excellent anti-slip properties. This pattern is widely used in various industries, including transportation and construction.

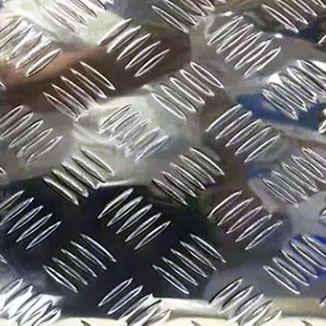

  • 5 Bar Aluminum Checkered Plate

    5 Bar Aluminum Checkered Plate

    The 5 Bar pattern is characterized by five parallel bars or lines running across the width of the plate. This pattern is known for its strength, durability, and widespread use in industrial and commercial applications.

  • 3 Bar Aluminum Checkered Plate

    3 Bar Aluminum Checkered Plate

    Similar to the 5 Bar pattern, the 3 Bar pattern features three parallel bars or lines across the width of the plate. This pattern also provides anti-slip properties and is commonly used in flooring and structural applications.

Chemical composition of 3003 aluminum checkered plate for oil tanker

Element Composition %
Si 0.20
Fe 0.35
Cu 0.15
Mn 0.20-0.50
Mg 4.0-5.0
Cr 0.10
Ni -
Zn 0.25
Ti 0.10
Al Remainder

Haomei Aluminum 3003 Oil Tanker Aluminum Checkered Plate Applications

  • 3003 Aluminum Checkered Plate for Decking and Flooring
  • 3003 Checkered Aluminum for Loading and Unloading Areas
  • 3003 Aluminum for Toolboxes and Storage Compartments
  • 3003 Aluminum Checkered Plate for Walkways and Platforms
  • 3003 Aluminum Checkered Plate for Stair Treads

3003 Aluminum Checkered Plate for Decking and Flooring

Anti-slip surface: 3003 Aluminum Checkered Plate provides an anti-slip surface, making it suitable for use as decking or flooring in different areas of a tanker. This is vital to ensure the safety of workers on tankers.

3003 Aluminum Checkered Plate for Walkways and Platforms

Safety: Walkways and platforms on tankers require materials that are both durable and safe for walking surfaces. 3003 Aluminum Checkered Plate can be used in these areas to prevent slips and enhance safety during maintenance or operations.

3003 Aluminum Checkered Plate for Stair Treads

Traction: Stairs on tankers often use grating as stair treads to enhance traction, especially in areas prone to moisture or oil. This helps create a safer working environment.

3003 Aluminum Checkered Plate for Loading and Unloading Areas

Durability: The tread plate is durable and corrosion-resistant, making it suitable for use in areas where there may be contact with various chemicals when loading and unloading oil.

3003 Aluminum for Toolboxes and Storage Compartments

Protection: Checkered panels are also used to build toolboxes and storage rooms on tankers. These boards provide protection against wear and tear, and their anti-slip properties are beneficial in these applications.

8 Reasons Oil Tanker Tread Checkered Plate choose 3003 aluminum

1. Good corrosion resistance

Alloy 3003 is known for its excellent corrosion resistance, making it ideal for use in environments exposed to moisture, chemicals and corrosive substances. This is especially important for tankers, which are frequently exposed to the elements.

2. Light weight

Aluminum is a lightweight material and 3003 alloy is no exception. This feature is beneficial in applications such as tankers, where weight considerations are critical for fuel efficiency and load capacity.

3. High strength

While not as strong as some other aluminum alloys, 3003 still provides sufficient strength for many applications. The addition of manganese to the alloy helps increase its strength, making it suitable for use in structural components of tankers.

4. Good formability

Alloy 3003 is highly formable and easy to fabricate and form. This property is beneficial to the tread board manufacturing process, as tread boards often require specific shapes and patterns to achieve anti-slip purposes.

5. Good anti-slip performance

The checkered pattern on the board provides a non-slip surface. This is critical in environments like tankers where safety is a primary concern, especially in areas prone to moisture, oil or other slippery substances.

6. Easy to clean

The smooth surface between the raised patterns of plaid board makes it relatively easy to clean. This is important in applications where cleanliness is required, such as in oil transportation.

7. Versatility

Aluminum's versatility lends itself to a wide range of applications. In oil tankers, 3003 aluminum checkered panels can be used in various areas such as decks, floors, stair treads, walkways and other structural components.

8. Longevity

Aluminum is highly resistant to corrosion, which helps extend the life of structures made of 3003 alloy. This is advantageous for applications such as tankers, where durability is a key factor.
