5083 Aluminum Plate Sheet

Status : O/H111/H112/H116/H321 Stable Quality , Reasonable Price

The commonly used standards for Haomei Aluminum 5083 aluminum sheets are ASTM B209, EN 485-2, ASTM-B928, ASME SB209, providing 5083 aluminum sheets in various states and sizes.

Table of Contents
  1. 5083 Aluminum Plate Sizes
  2. Surface Quality of 5083 Aluminum Plate
  3. 5083 Aluminum Plate Thickness Tolerance
  4. Mechanical Properties of 5083 Aluminum Plate
  5. 5083 Aluminum Plate for Sale
    1. 5083-0 Aluminum Plate
    2. 5083 H111 Aluminum Plate
    3. 5083 H112 Aluminum Plate
    4. 5083-H116 Aluminum Plate
    5. 5083-H321 Aluminum Plate
  6. How to Choose 5083 Aluminum Plate
  7. 5083 Aluminum Plate Processing Performance
  8. Chemical Composition of 5083 Aluminum Plate
  9. 5083 Aluminum Plate Applications
  10. 5083 Aluminum Plate Supplier

5083 aluminum plate is an aluminum alloy material with high strength and excellent corrosion resistance. Alloy 5083 retains excellent strength after welding and is easy to form, but is not recommended for use at temperatures above 65°C. Since alloy 5083 is able to withstand extremely low temperatures without becoming brittle or losing properties. It is therefore particularly suitable for the cryogenic market and is often used in marine applications.

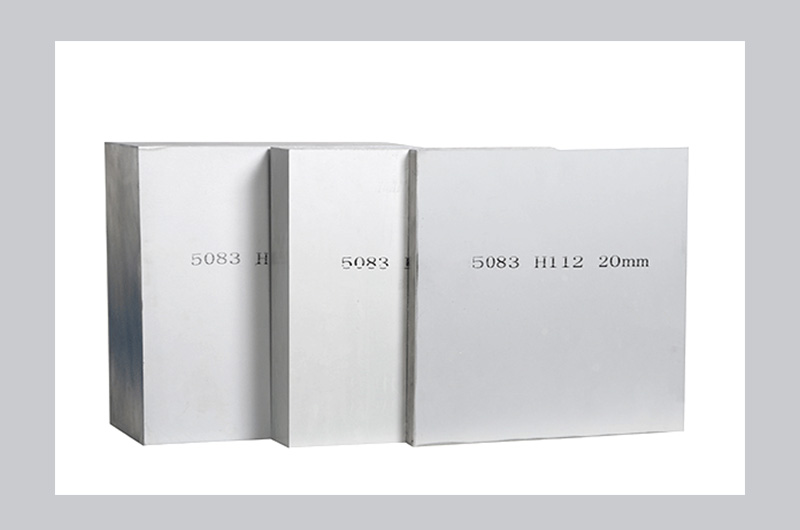

5083 aluminum plate

The commonly used standards for 5083 aluminum sheets are ASTM B209, EN 485-2, ASTM-B928, ASME SB209. In addition, the 5083 aluminum plate also meets some industry standards, such as the specifications of the American Bureau of Shipping (ABS), the specifications of the German Lloyd Group, etc. (When selecting 5083 aluminum plate, it is necessary to select the corresponding standard according to the specific use requirements and regional standards.)

5083 Aluminum Plate Sizes

The size of the 5083 aluminum plate can be customized according to the requirements of customers.

  • Thickness range : 0.2mm to 200mm
  • Width range : 100mm to 2650mm
  • Length range : 500mm to 16000mm

Of course, the specific size depends on the needs of manufacturers and customers, and can be customized according to actual applications

5052 Aluminum Plate Typical Thickness
Alloy Temper Thickness/Width/Length mm
5083 H32 Aluminum Plate 4*1500*3500
5083 H32 Aluminum Plate 1.5*1313*821
5083 H32 Aluminum Plate 1.5*840*1360
5083 H32 Aluminum Plate 1.5*840*1830
5083 H32 Aluminum Plate 2*921*744
5083 H112 Aluminum Plate 80*640*640
5083 O Aluminum Plate 1.4*1500*3000
5083 O Aluminum Plate 1.9*1500*3000

Surface Quality of 5083 Aluminum Plate

  • Flatness : The surface of the 5083 aluminum plate is flat, without obvious warping, protrusions, depressions and other undesirable deformations.
  • Color : The surface of 5083 aluminum plate is smooth, uniform and consistent in color. There are no oxide scales, cracks, water ripples and other defects that affect the appearance and use.
  • Cleanliness : The surface of the 5083 aluminum plate is clean, without oil, dust, dirt and other impurities.
  • Oxide layer : A uniform and dense oxide layer is formed on the surface of the 5083 aluminum plate.

Note : An uneven or thin oxide layer may affect its service life and aesthetics.

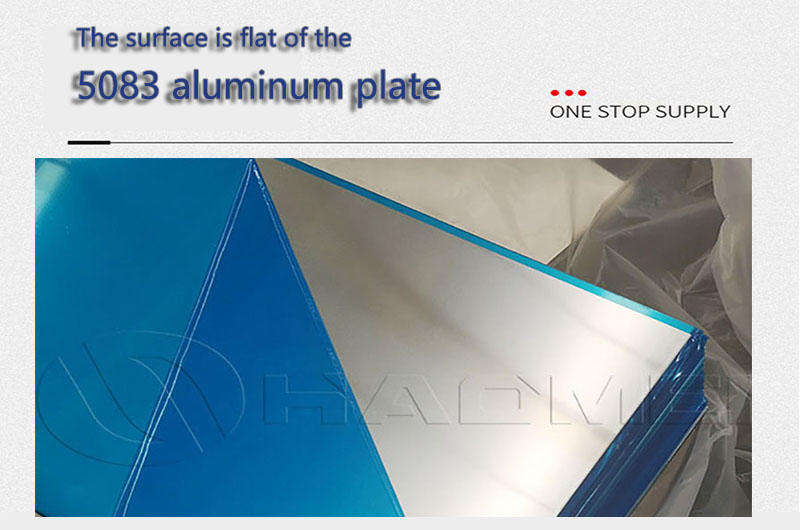

Surface Quality of 5083 Aluminum Plate

5083 Aluminum Plate Thickness Tolerance

The thickness tolerance of 5083 aluminum sheet will vary according to specific production standards and requirements. The following are some common 5083 aluminum plate thickness tolerances :

Standard Thickness Tolerance
ASTM B209 <6.35mm ±0.05mm
6.35-25.4mm ±0.08mm
>25.4mm ±0.13mm
EN 485-3 <6mm ±0.05mm or ±5%
6-12mm ±0.1mm or ±5%
>12mm ±0.2mm or ±5%
GB/T 3880 <6mm ±0.1mm
6-12mm ±0.15mm
>12mm ±0.2mm

It should be noted that the above are only some common 5083 aluminum plate thickness tolerances, and the specific tolerance requirements should be confirmed according to actual production standards and requirements.

The main difference between EN 485-2 and EN 485-3 is the scope of application. EN 485-2 applies to all uses, while EN 485-3 applies only to aerospace and aerospace applications. In addition, EN 485-3 also has stricter requirements on the chemical composition, mechanical properties, dimensions, heat treatment process and surface quality of the plates.

Mechanical Properties of 5083 Aluminum Plate

The mechanical properties of 5083 aluminum plate depend on the temper or heat treatment it has undergone. Below are some typical mechanical properties of 5083 aluminum plate in various tempers :

Status Yield strength
5083 O Aluminum Plate 115 MPa
5083 H111 Aluminum Plate 125 MPa
5083 H112 Aluminum Plate 145 MPa
5083 H116 Aluminum Plate 240 MPa
5083 H321 Aluminum Plate 195 MPa
Status Tensile strength
5083 O Aluminum Plate 275 MPa
5083 H111 Aluminum Plate 290 MPa
5083 H112 Aluminum Plate 295 MPa
5083 H116 Aluminum Plate 325 MPa
5083 H321 Aluminum Plate 305 MPa
Status Elongation
5083 O Aluminum Plate 20%
5083 H111 Aluminum Plate 16%
5083 H112 Aluminum Plate 12%
5083 H116 Aluminum Plate 10%
5083 H321 Aluminum Plate 10%

Note that the above values are typical and may vary depending on the specific manufacturing process, size, and shape of the aluminum plate.

5083 Aluminum Plate for Sale

5083-0 Aluminum Plate

5083-0 aluminum plate is a kind of 5083 aluminum alloy plate. The O state refers to the softening treatment state, that is, after annealing, the hardness and strength of the aluminum plate are reduced, but the plasticity and toughness are improved.

  • Performance : 5083 o aluminum plate has good formability and processing performance, suitable for stamping, stretching, deep drawing and other forming processes.
  • Application : 5083 O aluminum sheet is usually used in occasions that require high plasticity and processing performance, such as tanks, ships, and automotive panels.

5083 H111 Aluminum Plate

The 5083 H111 aluminum plate refers to that after work hardening treatment (work hardening), and then natural aging (natural aging) treatment, the hardness and strength of the aluminum plate have been improved.

  • 5083H111 aluminum plate has good strength and corrosion resistance, suitable for applications requiring higher strength and corrosion resistance.
  • 5083 H111 aluminum plate is usually used in occasions that require higher strength and corrosion resistance, such as hulls, decks, ship structural parts, etc. At the same time, 5083 H111 aluminum plate is also suitable for machining and welding.

5083 H112 Aluminum Plate

5083 H112 aluminum plate is worked hardened (work hardening), then quenched (quenching) and natural aging (natural aging).

  • 5083 H112 aluminum plate is a quenched aluminum alloy plate with high strength and hardness, but poor plasticity.
  • 5083 H112 is usually used in occasions that require higher strength and corrosion resistance, such as hulls, decks, ship structural parts, etc.

5083 H112 Aluminum Plate

5083-H116 Aluminum Plate

H116 represents the state of the material after heat treatment, and 5083 h116 aluminum plate is an aluminum alloy plate that has been quenched, stretched, and stabilized.

But due to its excellent performance and reliability, 5083 h116 aluminum plate has a higher cost.

  • 5083 H116 aluminum sheet has good corrosion resistance and weldability. Due to the cooling treatment, the 5083 H116 aluminum plate has lower strength and hardness, but still has high tensile strength and flexural strength.
  • 5083 h116 aluminum plate is one of the commonly used materials in the field of shipbuilding and marine engineering. It is widely used in ships, marine engineering, railway vehicles and military equipment and other fields.

5083-H321 Aluminum Plate

5083 represents the main component of aluminum alloy, and h321 represents the state of the material after heat treatment. Compared with 5083 h116 aluminum plate, 5083 h321 aluminum plate undergoes a more rigorous heat treatment process, including annealing and quenching.

  • 5083 H321 aluminum sheet has good flatness, weldability and corrosion resistance. Due to the stretching and flattening treatment, the 5083 H321 aluminum plate has higher flatness and better surface quality.
  • 5083 h321 aluminum plate is usually used in occasions that require high strength and corrosion resistance, and require high flatness and surface quality of the plate, such as high-speed ships, tugboats, oil tankers, etc.

How to Choose 5083 Aluminum Plate

The different heat treatment states of 5083 aluminum alloy are different in application, and the specific selection should be determined according to the specific application requirements.

  • If you need higher plasticity and deep drawing performance, you can choose 5083 O aluminum plate.
  • If you need higher strength and corrosion resistance, you can choose 5083 H111 aluminum plate or 5083 H112 aluminum plate.
  • If you need higher strength and hardness, you can choose 5083 H112 aluminum plate.
  • When you need better corrosion resistance and weldability, you can choose 5083 H116 aluminum plate and 5083 H321 aluminum plate.
  • 5083 H116 aluminum plate can be selected when higher strength and corrosion resistance are required.
  • When you need better flatness and surface quality, you can choose 5083 H321 aluminum plate.

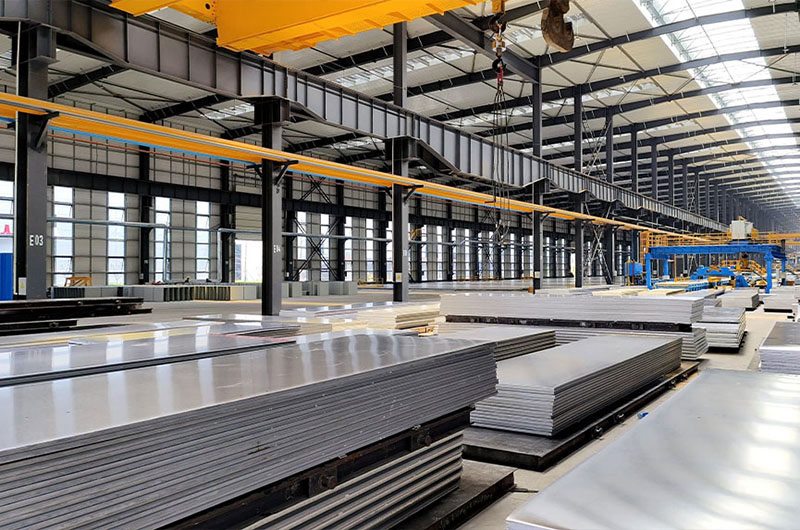

5083 Aluminum Plate Supplier

5083 Aluminum Plate Processing Performance

5083 aluminum plate is widely used in shipbuilding, aerospace, automobile, machinery manufacturing and other fields due to its excellent properties such as high strength, corrosion resistance and weldability. Its processing performance is as follows :

  • Good machinability : 5083 aluminum plate has good processing performance, and can be processed by conventional processing methods, such as milling, stamping, stretching, deep drawing, bending, etc.
  • Good weldability : 5083 aluminum plate has good weldability, and can be welded by TIG, MIG and resistance welding methods. At the same time, it can also be used in special cases such as explosive welding and electroslag welding.
  • Good formability : 5083 aluminum plate has good formability and can be formed by cold working and hot working.
  • Good cutting performance : 5083 aluminum plate has good cutting performance, the tool wears slowly during cutting, and the cutting force is small, which can improve the processing efficiency.

Chemical Composition of 5083 Aluminum Plate

(Al) Balance
(Mg) 4.0%-4.9%
(Mn) 0.4%-1.0%
(Cr) 0.05%-0.25%
(Cu) 0.10%
(Fe) 0.40%
(Si) 0.40%
(Sn) 0.15%
(Zr) 0.10%

5083 Aluminum Plate Applications

5083 aluminum plate is widely used in many fields due to its excellent performance, including :

  • Shipbuilding : The high strength, corrosion resistance and weldability of 5083 aluminum plate make it an ideal material for manufacturing ships, such as high-speed boats, fishing boats, speedboats, ocean-going ships, etc.
  • Aerospace : 5083 aluminum plate is also widely used in the field of aerospace, such as aircraft and rocket shells, fuel tanks and other important components.
  • Automobile manufacturing : 5083 aluminum plate can be used for body panels, frame, wheels and other structural components in automobile manufacturing, which has the advantages of reducing vehicle weight and improving vehicle fuel efficiency.
  • Machinery manufacturing : 5083 aluminum plate can also be used in molds, parts, pipes and other structural parts in machinery manufacturing.

5083 Aluminum Plate Supplier

Haomei Aluminum is a professional manufacturer engaged in the production of aluminum sheets, aluminum coils and aluminum strips. Mainly engaged in 1060 aluminum plate, 3003 aluminum plate, 5052 aluminum plate, 5083 aluminum plate, 6061 aluminum plate, patterned aluminum plate, aluminum coil, thermal insulation aluminum skin, aluminum strip, alloy aluminum plate, profiled aluminum plate, embossed aluminum coil, etc.
