5083 Aluminum Disc Circle

Stable Quality Complete Specifications , Reasonable Price

5083 Aluminum discs are versatile materials prized for their corrosion resistance, high strength, and weldability.

Table of Contents
  1. Basic Information of 5083 Aluminum Disc
  2. 5083 Aluminum Disc Specifications
  3. Mechanical Properties of 5083 Aluminum Disc
  4. Physical Properties of 5083 Aluminum Disc
  5. 5083 Aluminum Disc Commonly Used Diameters and Thicknesses
  6. Applications of 5083 Aluminum Disc
    1. Specific Life Examples of Corresponding Applications
    2. Requirements for Corresponding Applications
    3. Commonly Used Diameters and Thicknesses for Corresponding Applications
  7. 5000 Series Aluminum Discs
  8. Analysis and Comparison of Different Alloy Aluminum Discs
  9. Disadvantages of 5083 Aluminum Discs
  10. When to Choose 5083 Aluminum Disc
  11. Hot Topics about 5083 Aluminum Disc
  12. Related Searches about 5083 Aluminum Disc
  13. Conclusion

Aluminum discs are versatile materials used across various industries due to their excellent properties. One specific alloy that stands out is 5083 Aluminum, known for its exceptional performance and wide-ranging applications.

5083 aluminum discs belong to Al-Mg-Si aluminum alloy. In addition to aluminum, its main components are magnesium and silicon.

  • The magnesium content of more than 4.0% makes the 5083 aluminum round have excellent resistance to deformation and is easy to weld.
  • By adding copper, 5083 aluminum circles have an electrical conductivity of 28%.

5083 aluminum discs

Basic Information of 5083 Aluminum Disc

5083 Aluminum is a non-heat treatable alloy that belongs to the 5xxx series. It is primarily composed of aluminum (Al) and small additions of magnesium (Mg) and manganese (Mn). This alloy is known for its exceptional corrosion resistance, high strength, and excellent weldability. It is a popular choice for various applications where durability and resistance to harsh environments are essential.

5083 aluminum discs also have good hot or cold working forming properties. But hardening can only be accomplished by cold working. In addition, 5083 aluminum rounds do have good strength, but they are not heat treatable.

Alloy 5083 also maintains excellent strength after welding. It has the highest strength of the non-heat treatable alloys but is not recommended for use at temperatures above 65°C.

5083 Aluminum Disc Specifications

specifications value
Temper O, H12, H14, H16, H18, H22, H24, H26, H28, H111, H112, H114, H 116, H321
Width 100mm-2650mm
Thickness 0.5mm-120mm
Coating PVC Coated, Color Coated
Technology hot rolled ( DC ), cold rolling ( CC ), cast
Equivalent alloy name a5083, 5083a, aa5083, 5083aa, al5083, al5083a, 5083 aa, aa 5083, al5083 class
Diameter ( small ) 100mm, 160mm, 200mm, 1200mm ( large ) etc

Mechanical Properties of 5083 Aluminum Disc

5083 Aluminum discs exhibit impressive mechanical properties, making them ideal for demanding applications. Some key mechanical properties of 5083 Aluminum include:

  • Tensile Strength: With a tensile strength of approximately 275 MPa, 5083 Aluminum is considerably strong.
  • Yield Strength: It has a yield strength of around 125 MPa, which signifies its ability to withstand deformation without permanent damage.
  • Elongation: The alloy exhibits good elongation, typically around 12%, allowing for some plastic deformation without cracking.
  • Hardness: 5083 Aluminum typically has a hardness rating of 75 on the Brinell scale, reflecting its resistance to surface wear.

Physical Properties of 5083 Aluminum Disc

The physical properties of 5083 Aluminum discs are important for understanding how they perform in various environments. Some key physical properties include:

  • Density: 5083 Aluminum has a density of about 2.68 g/cm³, making it lightweight and easy to handle.
  • Melting Point: The melting point of 5083 Aluminum is around 570°C (1058°F), which is relatively low for a metal, making it suitable for casting and fabrication processes.
  • Thermal Conductivity: This alloy exhibits a high thermal conductivity of approximately 121 W/m·K, which allows for efficient heat dissipation in applications like heat exchangers.
  • Electrical Conductivity: 5083 Aluminum has good electrical conductivity, making it suitable for electrical applications.

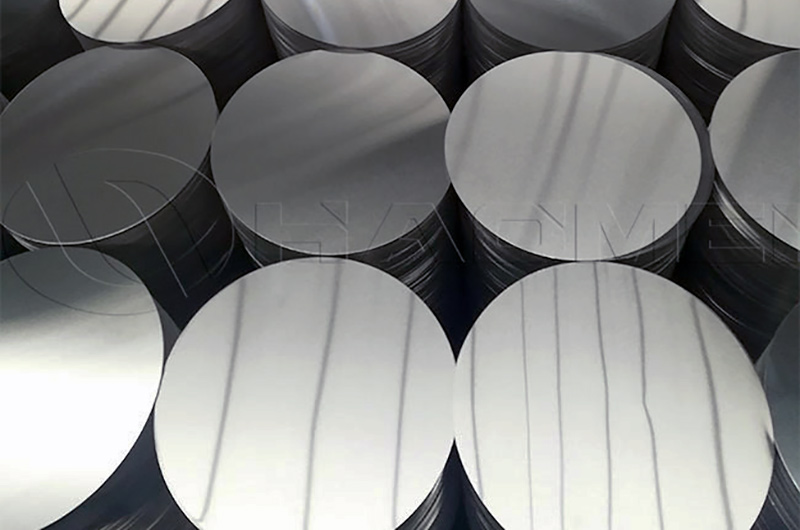

5083 Aluminum Disc Stock


5083 Aluminum Disc Commonly Used Diameters and Thicknesses

5083 Aluminum discs come in various diameters and thicknesses to meet the specific requirements of different applications. Below is a table listing some commonly used diameters and thicknesses:

Aluminum Disc Diameter (mm)
5083 Aluminum Disc Circle 100
5083 Aluminum Disc Circle 150
5083 Aluminum Disc Circle 200
5083 Aluminum Disc Circle 250
5083 Aluminum Disc Circle 300
5083 Aluminum Disc Circle 350
5083 Aluminum Disc Circle 400
Aluminum Disc Thickness (mm)
5083 Aluminum Disc Circle 1.0
5083 Aluminum Disc Circle 2.0
5083 Aluminum Disc Circle 3.0
5083 Aluminum Disc Circle 4.0
5083 Aluminum Disc Circle 5.0
5083 Aluminum Disc Circle 6.0
5083 Aluminum Disc Circle 8.0

Applications of 5083 Aluminum Disc

Excellent corrosion resistance makes 5083 aluminum alloy discs widely used in marine applications such as ships, road signs, kitchen tools, discs, and pressure vessels that require strict fire protection (such as liquid tankers, refrigerated trucks, refrigerated containers), refrigeration units, TV towers, etc. , drilling equipment, transportation equipment, missile parts, armor, gas storage tanks, oil tankers, tool boxes, etc.

Marine Industry: 5083 Aluminum is extensively used for boat hulls, shipbuilding, and other marine components due to its outstanding corrosion resistance in saltwater environments.

Aerospace: It is employed in the aerospace industry for manufacturing aircraft components, such as wing panels and fuselage sections, thanks to its lightweight yet sturdy nature.

Automotive: The automotive sector utilizes 5083 Aluminum for parts that require high strength and resistance to corrosion, such as body panels and fuel tanks.

Industrial Equipment: It is used in industrial equipment like pressure vessels, storage tanks, and heat exchangers due to its ability to withstand harsh chemical environments.

Architectural Applications: In architectural construction, 5083 Aluminum discs are employed for facades, roofing, and decorative elements due to their durability and aesthetics.

Specific Life Examples of Corresponding Applications

Marine: A fishing boat built with 5083 Aluminum hull and components can withstand the harsh conditions of saltwater for decades, demonstrating the material's exceptional longevity.

Aerospace: Aircraft wings constructed using 5083 Aluminum have consistently performed well under stress and strain, providing a long operational life.

Automotive: Aluminum fuel tanks made from 5083 Aluminum have been in service for years without corrosion, ensuring the safety and longevity of vehicles.

Industrial Equipment: Pressure vessels used in the chemical industry have relied on 5083 Aluminum for their resistance to corrosive substances, extending their operational life.

Requirements for Corresponding Applications

The requirements for specific applications using 5083 Aluminum discs vary but often include the following:

Corrosion Resistance: In marine and industrial applications, resistance to corrosion from saltwater or chemicals is critical.

High Strength: Aerospace and automotive applications demand high strength to withstand mechanical stresses.

Weldability: For components that require joining or fabrication, excellent weldability is essential.

Formability: Architectural applications may require the ability to form the material into intricate shapes for aesthetic purposes.

Lightweight: In aerospace applications, the material should be lightweight to improve fuel efficiency and reduce overall weight.

Commonly Used Diameters and Thicknesses for Corresponding Applications

The choice of diameter and thickness for corresponding applications depends on the specific requirements and design constraints of each application.

For example, marine components may require thicker and larger-diameter discs to withstand the forces of the sea.

while aerospace applications may favor thinner and smaller-diameter discs for weight savings.

5000 Series Aluminum Discs

5000 Series Aluminum Discs

5083 Aluminum belongs to the 5000 Series of aluminum alloys, which are known for their excellent corrosion resistance. Other common alloys in the 5000 Series include:

  • 5052 Aluminum Discs
  • 5754 Aluminum Discs
  • 5086 Aluminum Discs

Each alloy within the series offers slightly different characteristics, allowing for flexibility in choosing the most suitable material for a given application.

Analysis and Comparison of Different Alloy Aluminum Discs

Different alloy Aluminum discs offer various properties and advantages, making them suitable for different applications.

The 5083 Aluminum disc, with its remarkable corrosion resistance and strength, is a standout choice for marine and aerospace applications.

5052 Aluminum is known for its formability and is often used in sheet metal applications, 6061 Aluminum offers a balance of strength and formability, making it popular in structural applications.

Disadvantages of 5083 Aluminum Discs

While 5083 Aluminum discs have many advantages, they are not without their drawbacks. Some disadvantages include:

Cost: 5083 Aluminum can be more expensive compared to other aluminum alloys due to its superior corrosion resistance and strength.

Limited Formability: It may not be as easily formed or stretched as other aluminum alloys, which can restrict its use in certain applications.

When to Choose 5083 Aluminum Disc

5083 Aluminum discs should be chosen when the following characteristics are essential for an application:

Corrosion Resistance: When the component will be exposed to harsh, corrosive environments, such as marine or chemical applications.

High Strength: For applications where structural integrity and mechanical strength are paramount.

Weldability: When joining or fabrication is a necessary part of the manufacturing process.

Longevity: When the component needs to have a long operational life without succumbing to corrosion or fatigue.

Hot Topics about 5083 Aluminum Disc

The world of aluminum alloys is constantly evolving, and hot topics related to 5083 Aluminum discs may include:

Sustainable Manufacturing: Discussions about reducing the environmental impact of aluminum production and recycling.

Lightweighting: Innovations in using aluminum alloys to make vehicles and structures lighter for improved efficiency and reduced carbon footprint.

Advanced Applications: Exploration of new industries and applications where 5083 Aluminum can bring value, such as renewable energy.

Alloy Developments: Research into new alloy compositions to enhance specific properties, like corrosion resistance or strength.

  • "5083 Aluminum vs. 6061 Aluminum"
  • "5083 Aluminum properties"
  • "5083 Aluminum applications"
  • "5083 Aluminum welding techniques"
  • "Corrosion resistance in marine materials"
  • "Aerospace aluminum alloys"
  • "Sustainable aluminum production"
  • "Aluminum recycling methods"

Conclusion

5083 Aluminum discs are versatile materials prized for their corrosion resistance, high strength, and weldability.

They find applications in industries ranging from marine to aerospace, automotive, and more. Understanding their mechanical and physical properties, as well as the specific requirements of corresponding applications, is crucial for selecting the right alloy for your project.

As aluminum technology continues to advance, it's essential to stay updated on the latest developments and hot topics in the field. Whether you're building a boat, constructing an aircraft, or designing architectural elements, 5083 Aluminum discs can play a pivotal role in ensuring longevity, durability, and performance.
