Marine aluminum welding wire

Updated : Feb. 01, 2024
Table of Contents
  1. What is marine aluminum welding wire
  2. Marine aluminum welding wire types
  3. Marine aluminum welding wire Chemical Composition
  4. Marine aluminum welding wire Physical Properties
  5. How to choose marine aluminum welding wire

Welding aluminum requires special considerations and techniques, requiring selection of the appropriate filler material, i.e. marine aluminum welding. Marine aluminum plate welding often uses 5183 and 5356 aluminum wires with high magnesium content, which have excellent corrosion resistance and thermal crack resistance.

Welding marine-grade aluminum is a specialized process due to the unique properties of the aluminum alloys commonly used to build marine structures, boats and components.

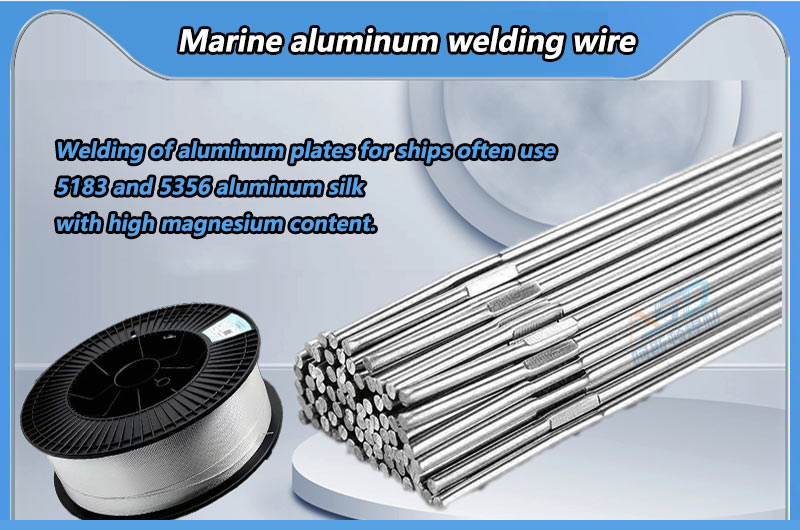

Marine aluminum welding wire

What is marine aluminum welding wire

Welding wire is a material that acts as a filler metal or also conducts electricity. Aluminum welding wire refers to a welding wire made of aluminum alloy and has good alloy properties. 5183 and 5356 aluminum wires are commonly used for welding marine aluminum plates.

Marine aluminum welding wire is an aluminum welding material specially designed for use in ship construction and maintenance. Marine aluminum welding wire requires specific properties and characteristics to meet the special requirements of the marine environment.

  • 1. Corrosion resistance: Marine aluminum welding wire needs to have excellent corrosion resistance because ships are exposed to salt water and humid conditions in the marine environment and are susceptible to corrosion.
  • 2. Strength and toughness: Marine welding usually requires that the welded joints have sufficient strength and toughness to withstand the stress of the ship in waves and severe weather.
  • 3. Welding performance: Marine aluminum welding wire needs to provide good welding performance to ensure stability and welding quality during the welding process.
  • 4. Alloy composition: The alloy composition of marine aluminum welding wire may vary depending on the type of aluminum alloy used in the hull. Typically, aluminum alloys used in ship structures may include the 5XXX series (such as 5052, 5083, 5456).
  • 5. Crack resistance: Marine aluminum welding wire usually needs to have good crack resistance to adapt to the deformation and stress that may occur in the hull during use.

Marine aluminum welding wire types

  • 5356 marine aluminum welding wire: This is the most commonly used wire for welding marine grade aluminum. It is a high-quality welding wire for welding 5XXX series alloys such as 5052, 5083, 5456, etc.
  • 5183 marine aluminum welding wire: This welding wire is used for welding 5086, 5083 and other 5XXX series alloys. It contains higher manganese content, which increases the strength and ductility of welds.
  • 5554 marine aluminum welding wire: This wire is designed for welding 5454 marine grade aluminum alloy. High magnesium content improves weld strength and corrosion resistance.
  • 4043 marine aluminum welding wire: This welding wire is used for welding 6XXX series alloys, such as 6061 and 6063. It is commonly used in the construction of ship structures and is known for its high resistance to cracking.

Selecting the appropriate welding wire for a specific alloy and following the recommended welding parameters are important to ensure reliable welding joints.

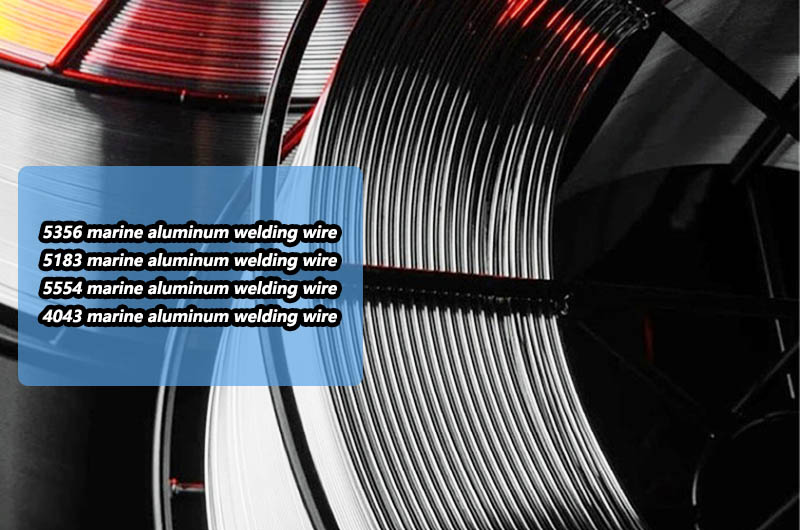

Marine aluminum welding wire types

Marine aluminum welding wire Chemical Composition

Alloy 5183 5356
Si ≤0.4 ≤0.25
Fe ≤0.4 ≤0.4
Cu ≤0.10 ≤0.1
Mn 0.5-1.0 0.05-0.2
Mg 4.3-5.2 4.5-5.5
Cr ≤0.25 0.05-0.2
Zn ≤0.25 ≤0.1
Ti ≤0.15 0.06-0.2
Al Remainder Remainder

Marine aluminum welding wire Physical Properties

Alloy 5183 5356
Melting range 1075-1180°F 1060-1175°F
Conductivity 16-19Ω·m/mm2 29%lACS(O)
27%lACS(H18)
Density 2.66g/mm2 2.66g/mm2
Corrosion resistance A(Gen)A(SCC) A(Gen)A(SCC)
Thermal expansion coefficient (20℃~300℃) 23.7×10¯⁶/K 23.7×10¯⁶/K
Thermal conductivity (20℃) 110-120W/m.k 110-150W/m.k

How to choose marine aluminum welding wire

Selecting the appropriate aluminum welding wire typically involves considering several factors, including the type of aluminum alloy to be welded, the required welding performance, and the specific environment of the application.

1. Welding performance requirements

If greater strength and ductility are required, choose a welding wire with a high manganese or magnesium content.

For applications requiring better crack resistance, consider using 4043 welding wire.

If you work in a marine environment and you need to consider the corrosion resistance after welding, you can choose 5554 welding wire containing high magnesium content.

2. Application environment

In a marine environment, considering the corrosive nature of salt water, it may be more important to select a welding wire with good corrosion resistance.

If the welded structure needs to withstand large forces and stresses, choosing a welding wire of appropriate strength is key.
