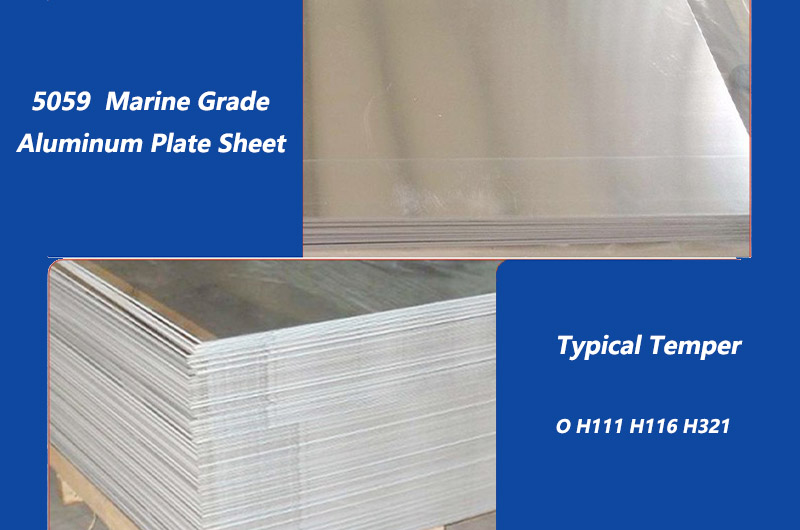

5059 O H111 H116 H321 Marine Aluminum Plate Sheet

Updated : Jan. 17, 2024
Table of Contents
  1. Chemical composition of 5059 Marine aluminum alloy
  2. Performance characteristics of 5059 Marine Grade Aluminum Plate in different states
    1. 5059 O Marine Grade Aluminum Plate
    2. 5059 H111 Marine Grade Aluminum Plate
    3. 5059 H116 Marine Grade Aluminum Plate
    4. 5059 H321 Marine Grade Aluminum Plate
  3. Mechanical properties of 5059 O H111 H116 H321 Marine Grade Aluminum Plate Sheet
  4. 5059 Marine Grade Aluminum Plate Advantages
  5. 5059 Marine Grade Aluminum Plate application fields
  6. 5059 Marine Grade Aluminum Plate processing technology
  7. Conclusion

5059 O H111 H116 H321 Aluminum alloy plate is a high-quality marine-grade aluminum alloy material with excellent corrosion resistance and high strength. It is widely used in shipbuilding and marine engineering and other fields.

5059 Marine aluminum

Chemical composition of 5059 Marine aluminum alloy

5059 aluminum alloy is mainly composed of aluminum (Al) and a series of alloying elements, the main alloying elements of which include magnesium (Mg) and manganese (Mn). This special alloy formula gives 5059 aluminum alloy excellent corrosion resistance and mechanical properties.

Performance characteristics of 5059 Marine Grade Aluminum Plate in different states

5059 O Marine Grade Aluminum Plate

Performance characteristics

  • High plasticity: 5059 O-temper aluminum alloy has excellent plasticity and is suitable for applications requiring bending and forming.
  • Good processability: Due to its lower hardness, it is easy to process various shapes.

usual format

  • Thickness range: 0.5mm - 6mm
  • Width range: 1000mm - 2500mm
  • Length range: 1000mm - 6000mm

5059 H111 Marine Grade Aluminum Plate

Performance characteristics

Excellent corrosion resistance: 5059 H111 aluminum alloy exhibits excellent corrosion resistance in marine environments.

High mechanical strength: suitable for marine projects with high requirements on structural reliability.

usual format

  • Thickness range: 6mm - 50mm
  • Width range: 1000mm - 3000mm
  • Length range: 2000mm - 8000mm

5059 H116 Marine Grade Aluminum Plate

Performance characteristics

  • Improved Strength and Hardness: With proper heat treatment, 5059 H116 temper aluminum alloy exhibits improved mechanical properties.
  • Suitable for applications with high strength requirements: often used in structures that need to bear larger loads.

usual format

  • Thickness range: 8mm - 80mm
  • Width range: 1000mm - 3500mm
  • Length range: 3000mm - 10000mm

5059 H321 Marine Grade Aluminum Plate

Performance characteristics

  • Highest strength and hardness: 5059 H321 temper aluminum alloy has the highest mechanical properties in the fully aged state.
  • Suitable for extreme environments: often used in marine engineering projects that require extremely high material performance.

usual format

  • Thickness range: 10mm - 100mm
  • Width range: 1000mm - 4000mm
  • Length range: 4000mm - 12000mm

The above specifications are for reference only and should be adjusted according to specific project requirements and manufacturing processes during actual use.

5059 H321 Marine Grade Aluminum Plate

Mechanical properties of 5059 O H111 H116 H321 Marine Grade Aluminum Plate Sheet

Temper Thickness mm Tensile Strength RmMPa Specified non-proportional tensile strength Rp0.2 Mpa
5059 O 3.00-50.00 330-380 ≥160
5059 H111 3.00-50.00 330-380 ≥160
5059 H116 3.00-20.00 ≥370 ≥270
>20.00-50.00 ≥360 ≥260
5059 H321 3.00-20.00 ≥370 ≥270
20.00-50.00 ≥360 ≥260

5059 Marine Grade Aluminum Plate Advantages

  • Seawater corrosion resistance: 5059 aluminum alloy has excellent seawater corrosion resistance and can maintain stable performance in harsh marine environments.
  • Lightweight and high strength: Compared with some traditional ship structural materials, 5059 aluminum alloy has lighter weight and higher strength, which helps improve ship performance.

5059 Marine Grade Aluminum Plate application fields

5059 O H111 H116 H321 Aluminum alloy plates are widely used in shipbuilding, marine engineering, oil field platforms, marine pipelines and other fields. Its excellent corrosion resistance and high strength make it an ideal structural material in marine environments.

5059 Marine Grade Aluminum Plate processing technology

5059 aluminum alloy plates can be processed through common aluminum alloy processing techniques, including cutting, punching, bending, welding, etc. It is necessary to pay attention to temperature control during processing to ensure that the performance of 5059 aluminum alloy is not affected.

Conclusion

5059 O H111 H116 H321 Marine grade aluminum alloy plates have been widely used in the field of marine engineering due to their excellent performance. Its corrosion resistance, high strength and availability in multiple states make 5059 aluminum alloy an ideal choice for manufacturing durable, lightweight marine structures.
