1070 aluminum plate for busbar raw material

Updated : Jan. 15, 2024
Table of Contents
  1. Aluminum busbar raw material parameter information
  2. 1070 aluminum busbar features
  3. Why is 1070 aluminum plate used as raw material for busbar?
  4. Performance advantages of busbar 1070 aluminum plate
  5. Application cases of 1070 aluminum plate for busbar
  6. What is the price of raw materials for 1060/1070 aluminum busbars?

1070 aluminum busbar is an aluminum alloy product, usually referred to as 1070 aluminum plate or 1070 aluminum strip, used to manufacture conductive and flow-guiding parts in power equipment, such as power transformers, generators, motors, etc.

1070 aluminum busbar is mainly made of 1070 aluminum alloy with a purity of up to 99.7%, which has good electrical and thermal conductivity.

Aluminum busbars can also be called aluminum busbars for graphite negative conductivity. They are mostly used to connect voltage distribution devices at all levels in substations, as well as to connect electrical equipment such as transformers and corresponding power distribution devices.

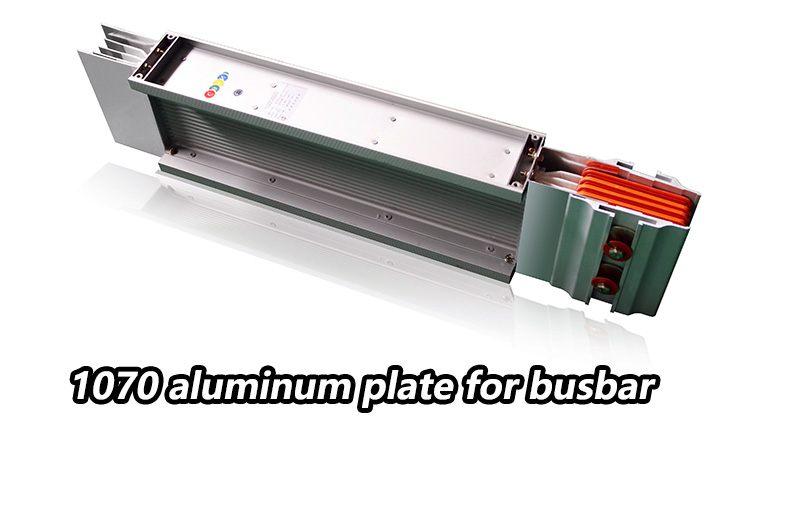

1070 aluminum busbar

Aluminum busbar raw material parameter information

  • Usage: aluminum busbar
  • Alloy: 1050/1060/1070
  • Status: H112
  • Thickness (mm): 3-400
  • Width (mm): 150-2500
  • Length (mm): 400-15000

1070 aluminum busbar features

  • High Purity: The purity of 1070 aluminum alloy is higher, which helps to improve electrical conductivity.
  • Good electrical conductivity: Due to the high purity of 1070 aluminum, it has good electrical conductivity and is suitable for the conductive requirements of power equipment.
  • Good thermal conductivity: Aluminum has good thermal conductivity, which helps dissipate heat and prevent the device from overheating.

This kind of aluminum busbar is widely used in the power industry because aluminum busbar is lighter and less expensive than copper busbar, and it also has good conductive properties. In some light power equipment, 1070 aluminum busbar is a common choice.

Why is 1070 aluminum plate used as raw material for busbar?

High purity: The purity of 1070 aluminum alloy is very high, usually reaching more than 99.7%. This high-purity aluminum has good electrical conductivity properties, helping to ensure efficient transmission of electrical current. In power equipment, electrical conductivity is crucial, so choosing high-purity 1070 aluminum will help improve the overall performance of the system.

  • Lightweight: Aluminum is lighter than copper. In some situations where lightweight equipment is required, choosing aluminum busbars can reduce the weight of the entire equipment and improve the convenience of transportation and installation. This is especially important for some mobile devices or scenarios that require lightweight design.
  • Cost-effectiveness: The production cost of aluminum is relatively low, so choosing 1070 aluminum plate as the busbar raw material can reduce manufacturing costs to a certain extent. This makes aluminum an attractive choice in projects where economic considerations are important.
  • Thermal conductivity: Aluminum has good thermal conductivity and helps dissipate heat. In some power equipment that needs to consider the heat dissipation effect, choosing 1070 aluminum busbar can help maintain the stability of the system.

Using 1070 aluminum plate as the busbar raw material is a balanced choice after comprehensively considering factors such as conductive performance, lightweight, cost and heat dissipation.

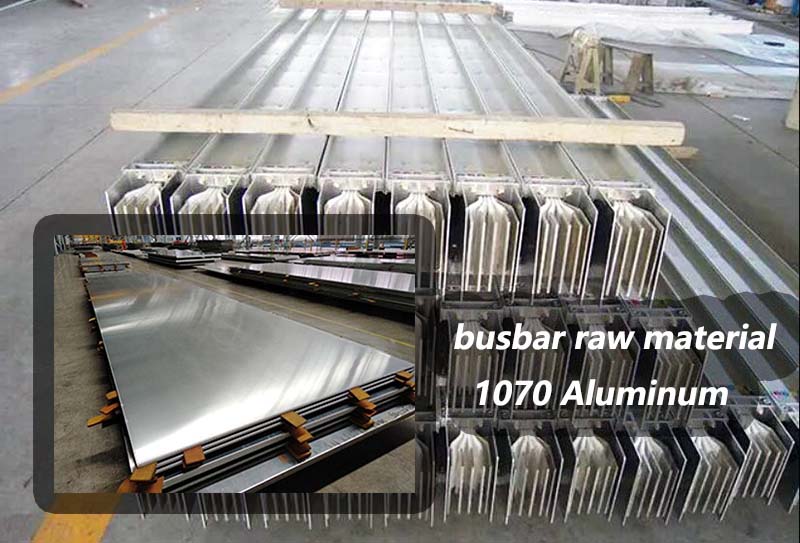

1070 aluminum plate for busbar raw material

Performance advantages of busbar 1070 aluminum plate

It has good corrosion resistance, excellent weldability and processing and formability, and has good thermal and electrical conductivity, and large current capacity.

It has good mechanical properties, good elongation, excellent tensile strength, high plate surface flatness, good plate shape, and strong corrosion resistance.

It has excellent oxidation resistance, durability, high safety and reliability, and can be used for drawing and stamping in conventional production.

Application cases of 1070 aluminum plate for busbar

1070 aluminum plate is widely used as a busbar raw material in the power field. The following are some busbar application cases using 1070 aluminum plate:

1070 aluminum busbar for power transformer: 1070 aluminum plate is often used in the conductive parts of power transformers, such as main bars. High-purity 1070 aluminum helps improve electrical conductivity, while the relatively lightweight aluminum material reduces the weight of the entire transformer.

1070 aluminum busbar for generator: In generators, 1070 aluminum busbar is usually used in conductive rings to ensure efficient transmission of current. This is critical to maintaining efficient operation of the generator.

1070 aluminum busbar for electric motors: Electric motors are common equipment in many industrial applications. 1070 aluminum busbar can be used for components such as conductive rings, stators and sub-busbars of electric motors. Aluminum's conductive properties and lightweight properties make it an option in electric motor manufacturing.

1070 aluminum busbar for power switch cabinet: 1070 aluminum plate is used in the conductive busbar system of power switch cabinet to ensure smooth current transmission between power equipment and improve the overall efficiency of the system.

1070 aluminum busbar for power distribution system: In power distribution system, 1070 aluminum busbar can be used for various conductive connections, such as bus duct, bus bridge, etc., to provide a good channel for power transmission.

1070 aluminum busbar for new energy equipment: In some new energy equipment, such as wind turbines, solar power generation equipment, etc., 1070 aluminum busbar is often used in the current conductor part to meet the requirements of efficient transmission.

These cases show that 1070 aluminum plate is widely used as a busbar raw material in the power field. Its superior conductive properties and lightweight characteristics make it an ideal choice for the manufacturing of many power equipment.

What is the price of raw materials for 1060/1070 aluminum busbars?

The price of busbar 1070 aluminum plate is affected by many factors, such as the selected manufacturer, the specifications and thickness of the selected product, etc. The price varies depending on the demand. It is recommended to choose a large direct-selling aluminum plate manufacturer. The product quality is guaranteed. The price is also relatively more favorable.

Haomei Aluminum is a large busbar 1070 aluminum plate raw material manufacturer with strict material selection, skilled craftsmanship, advanced equipment, and complete product specifications. It can be customized and produced on demand, with timely production scheduling and fast delivery. It is a direct-selling manufacturer with more favorable prices. You can visit the factory. Samples can be sent for free. If you need to know more product-related information and product processing fees, please feel free to consult Email: info@alu-sheet-coil.com!
