1070 Aluminum Plate Sheet

Conductivity : 62% IACS High Surface Flatness and Good Shape

The 1070 aluminum panels are manufactured to the highest quality standards, ensuring consistency and reliability with each product.

Table of Contents
  1. What are the Properties of 1070 Aluminum Plate?
  2. 1070 Aluminum Plate Specifications
    1. Specifications
    2. Standard Specifications
    3. Equivalent 1070
  3. 1070 Aluminum Data Sheet
    1. 1070 Aluminum Plate Typical Mechanical Properties
    2. 1070 Aluminum Plate Physical Properties
    3. 1070 Aluminum Plate Composition
  4. Typical 1070 Aluminum Plate
    1. 1070 O Aluminum Plate
    2. 1070 H12 Aluminum Plate
    3. 1070 H14 Aluminum Plate
  5. 1070 Aluminum Plate Applications
    1. 1070 Aluminum Plate PS/CTP Plate Base
    2. 1070 Aluminum for Lighting
    3. 1070 Aluminum Plate for Aluminum Busbar Substrate

1070 aluminum plate is an aluminum alloy with aluminum as the main component, with a purity of 99.7%. It is a soft, malleable and machinable metal that can be easily formed, stamped or spun, making it ideal for a variety of applications.

1070 aluminum plate

1070 aluminum casting and hot rolling can be produced

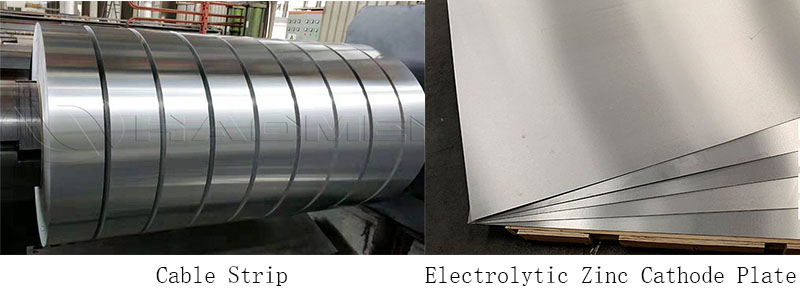

  • 1070 aluminum casting and rolling process is mainly used for cable belt and electrolytic zinc

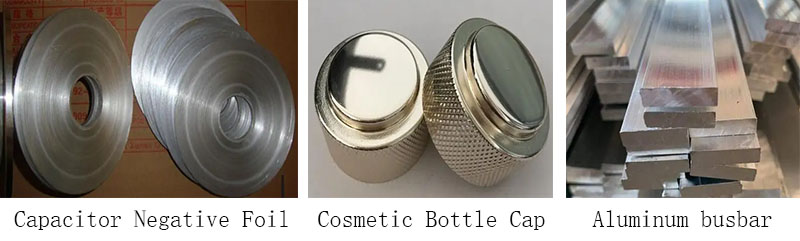

  • The 1070 aluminum hot rolling process is mainly used in some conductive industries such as electronic foil, cosmetics, bottle caps, and aluminum bus bars.

Hot rolled 1070 aluminum

Hot rolled 1070 aluminum

Cast and rolled 1070 aluminum

Cast and rolled 1070 aluminum

What are the Properties of 1070 Aluminum Plate?

1070 aluminum plate is also non-magnetic and non-toxic, and is suitable for the manufacture of some structural parts with specific properties.

  • Good Thermal and Electrical Conductivity
  • High Plasticity
  • Good Elongation
  • Good Corrosion Resistance
  • Low Density

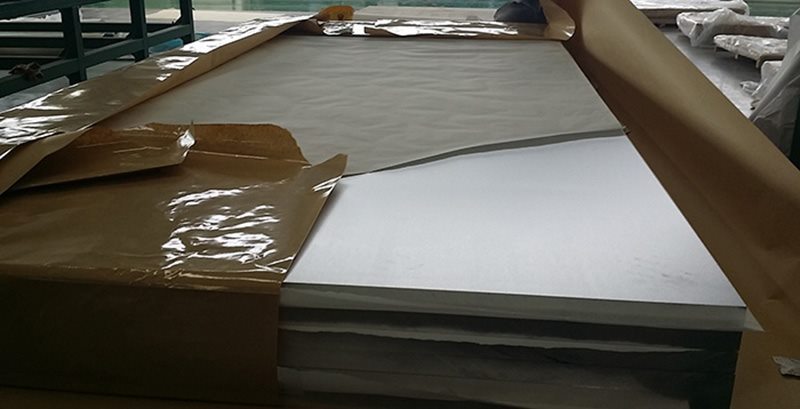

1070 Aluminum Plate Stock

1070 Aluminum Plate Specifications

Specifications

  • Thickness : 0.2mm - 6mm (standard) Up to 150mm (available upon request)
  • Width : 800mm - 1600mm (standard) Custom sizes available upon request
  • Length : 1000mm - 6000mm (standard) Custom lengths available upon request
  • Temper : O, H12, H14, H16, H18
  • Surface Finish : Mill finish, Bright finish, Brushed finish, Anodized finish (available upon request)
1070 Aluminum Plate Typical Thickness
Alloy Plate Thickness
1070 Aluminum Plate 0.2mm
1070 Aluminum Plate 0.3mm
1070 Aluminum Plate 0.4mm
1070 Aluminum Plate 0.5mm
1070 Aluminum Plate 0.6mm
1070 Aluminum Plate 0.7mm
1070 Aluminum Plate 0.8mm
1070 Aluminum Plate 1.0mm
1070 Aluminum Plate 1.2mm
1070 Aluminum Plate 1.5mm
1070 Aluminum Plate 2.0mm
1070 Aluminum Plate 3.0mm
1070 Aluminum Plate 4.0mm
1070 Aluminum Plate 5.0mm
1070 Aluminum Plate 6.0mm

Standard Specifications

  • ASTM B209
  • EN 485

Equivalent 1070

  • ISO Al99.7
  • UNS A91070
  • AA1070

https://www.youtube.com/watch?v=cbDnenqUdyc

1070 Aluminum Data Sheet

1070 Aluminum Plate Typical Mechanical Properties

Property Value
Tensile Strength (UTS) 55-75 MPa
Yield Strength 20-30 MPa
Elongation 25-35%
Hardness (Brinell) 19-23 HB

1070 Aluminum Plate Physical Properties

Property Value
Density 2.70 g/cm³
Melting Point 643°C (1190°F)
Thermal Conductivity 231 W/m·K
Electrical Conductivity 62.5% IACS
Coefficient of Thermal Expansion 23.1 μm/m-K (20-100°C)
Young's Modulus 68.9 GPa
Poisson's Ratio 0.33

1070 Aluminum Plate Composition

Element Percentage
Aluminum (Al) 99.7%
Iron (Fe) 0.25%
Silicon (Si) 0.20%
Copper (Cu) 0.04%
Zinc (Zn) 0.04%
Magnesium (Mg) 0.03%
Manganese (Mn) 0.03%
Titanium (Ti) 0.03%
Chromium (Cr) 0.03%
Vanadium (V) 0.05%
Other Elements 0.03%

Typical 1070 Aluminum Plate

1070 O Aluminum Plate

  • Advantages : good processability, high ductility and elongation, good electrical conductivity
  • Differences compared to other tempers : Lower strength and hardness than H12 and H14 tempered conditions
  • Examples : Capacitor housings, transformer windings, heat sinks, chemical storage tanks and trim
Properties Value
Temper O
Tensile Strength (MPa) 55-75
Yield Strength (MPa) 20-30
Elongation (%) 25-35

1070 O Aluminum

1070 H12 Aluminum Plate

  • Advantages : good formability, moderate strength and hardness, good corrosion resistance
  • Differences compared to other tempers : higher strength and hardness than O temper, lower elongation and ductility than O and H14 tempers
  • Applications : cookware, chemical and food processing equipment, and electrical components
Properties Value
Temper H12
Tensile Strength (MPa) 75-95
Yield Strength (MPa) 50-70
Elongation (%) 10-20

1070 H14 Aluminum Plate

  • Advantages : good formability, high strength and hardness, good corrosion resistance
  • Differences compared to other tempers : higher strength and hardness than O and H12 tempers, lower elongation and ductility than O tempers
  • Examples : cooking pots and pans, chemical storage tanks and electrical busbars
Properties Value
Temper H14
Tensile Strength (MPa) 85-105
Yield Strength (MPa) 55-75
Elongation (%) 6-12

1070 Aluminum Plate Applications

Some common uses for 1070 aluminum sheet include electrical components such as capacitor housings, transformer windings, and heat sinks. It is also used in the production of cookware, reflectors and decorative parts, as well as in the manufacture of chemical and pharmaceutical equipment.

1070 aluminum sheet is suitable for the manufacture of some structural parts with specific properties, such as 1070 aluminum foil made of gaskets and capacitors, electronic tubes, isolation nets, and aircraft ventilation system parts and decorative parts.

1070 Aluminum Plate PS/CTP Plate Base

1070 aluminum substrate, aluminum content ≥ 99.70%, the main specifications are (0.14-0.38) * (400-1500) mm, 1070 can improve the efficiency and quality of plate-making and printing production.

1070 aluminum has become an indisputable high-quality PS/CTP plate substrate due to many Advantages :

  • Low density
  • High strength
  • Moderate abrasion resistance
  • Well formed
  • Good hydrophilicity
  • High stability
  • Good surface treatment

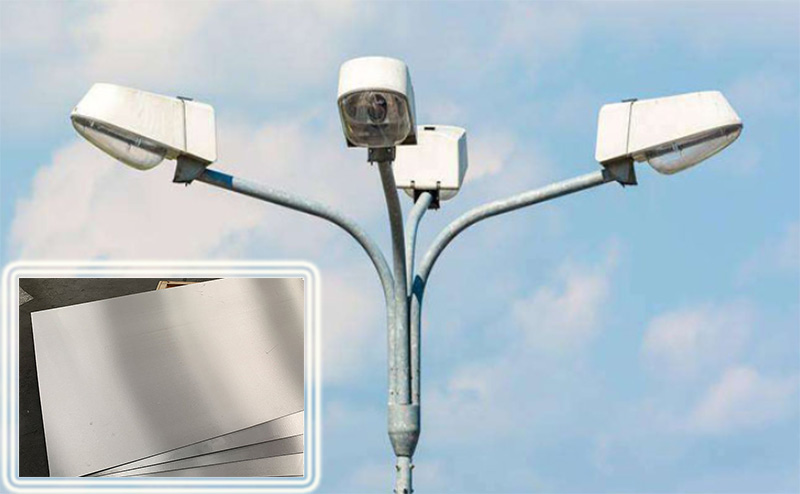

1070 Aluminum for Lighting

1070 aluminum has a low melting point, and pure aluminum is easy to oxidize, but the aluminum oxide produced has a very tight structure and stable chemical properties, which can prevent the continuous oxidation of aluminum, so the lamp body of the landscape lamp is mostly cast aluminum.

The processing technology of 1070 aluminum plate is mature, and the price has a huge advantage compared with other high-grade alloy aluminum plates.

  • Advantages : good processing and forming, high corrosion resistance, good electrical and thermal conductivity, long service life, low cost, and high recycling value.
  • Application : communities, parks, squares, blocks, villas, campuses and other places.

Click to learn more aboutLighting Aluminum

1070 Aluminum for Lighting

1070 Aluminum Plate for Aluminum Busbar Substrate

Aluminum bus bars can also be called aluminum bars for graphite negative electrodes. They are mostly used in the connection of voltage distribution devices at all levels in substations, and mainly play the role of collecting, distributing and transmitting electric energy.

Advantage :

  • It has good thermal conductivity and electrical conductivity, and large current capacity.
  • Durable, safe and reliable.
  • Stretching and stamping can be satisfied in conventional production.
  • It has good corrosion resistance and weldability.
  • Excellent processing and forming performance.
  • Good mechanical properties, good elongation, excellent tensile strength.
