Aluminum Trailer Roof Coils : The Choice of 90% Trailer Owners

Updated : Jun. 02, 2023
Table of Contents
  1. 3003 H14 H16 Aluminum Coil for Trailer Roof
  2. Aluminum Coil for Trailer Roof Advantage
  3. Typical Aluminum Alloy for Trailer Roof
    1. 5052 Aluminum Coil for Trailer Roof
    2. 6061 Aluminum Alloy for Trailer Roof
    3. 5083 Aluminum Coil for Trailer Roof
    4. 3105 Aluminum Alloy for Trailer Roof
  4. Aluminum for Trailers

Aluminum Trailer Roof Coil refers to a large roll of aluminum sheet or coil specially designed for use as trailer roof material. Aluminum is a popular choice for trailer roofs because of its light weight, durability and corrosion resistance. The roll form facilitates transportation and installation, as the trailer roof material can be unrolled and cut to length on site.

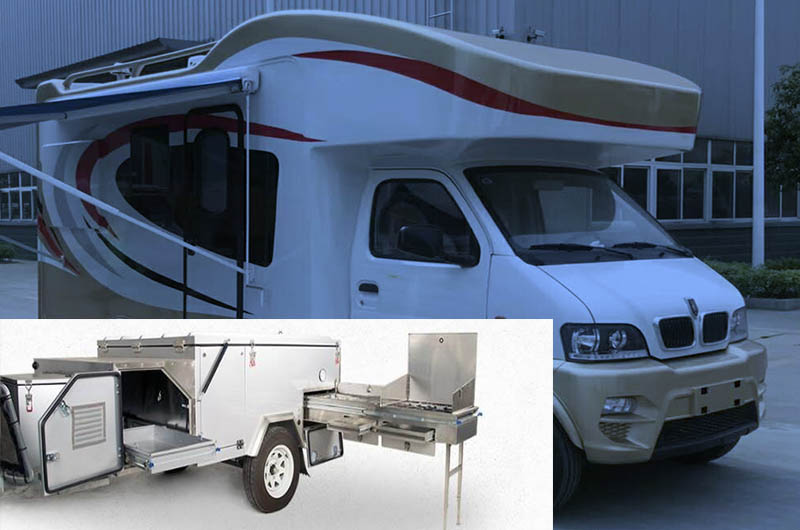

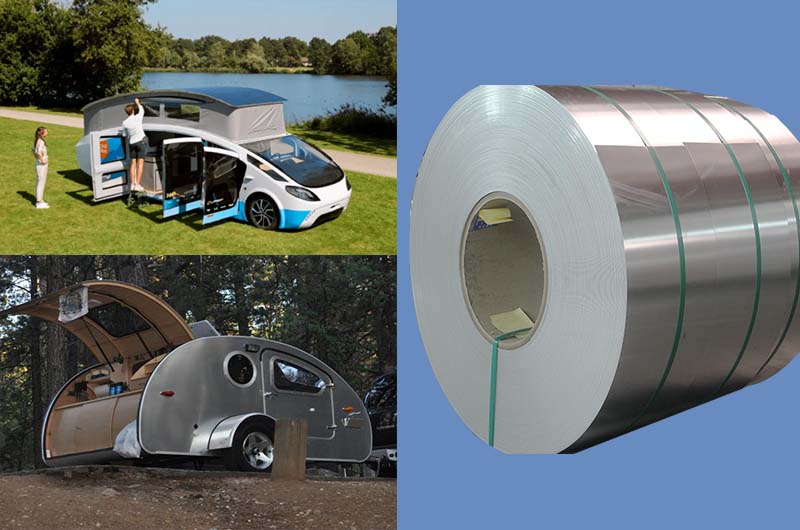

Aluminum Trailer Roof Coil

While there is no comprehensive data, it is common to find that a significant portion of trailer roofs are made of aluminum. Steel is also used in some cases, especially heavy trailers or applications that require extra strength. Fiberglass, on the other hand, is relatively uncommon for trailer roofs, but can be used in some specialty trailers, such as recreational vehicle (RV) or horse trailers.

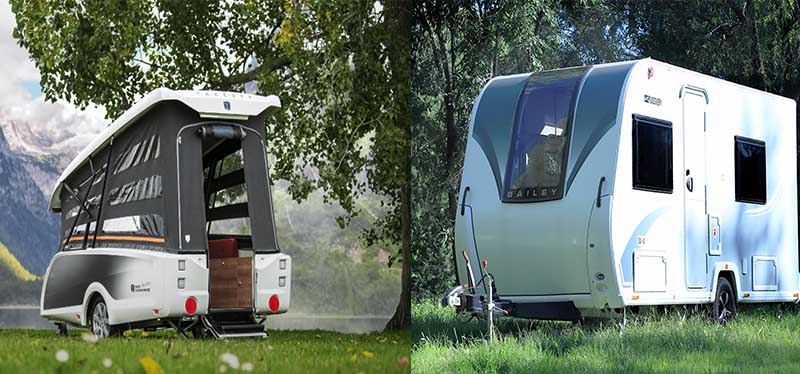

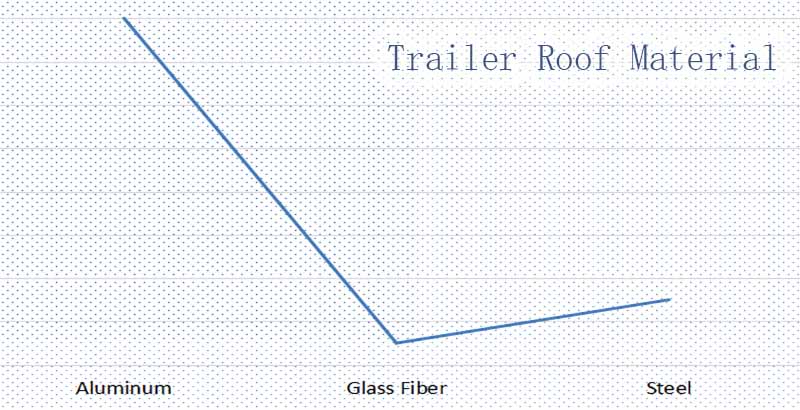

Trailer Roof Material

3003 H14 H16 Aluminum Coil for Trailer Roof

Aluminum trailer roof rolls are usually made from high-quality aluminum alloy sheets that have been specially treated to enhance their strength and weather resistance. Coils are available in various thicknesses and widths, allowing trailer manufacturers to select the size that best suits their particular application.

The specific alloy number and temper of the aluminum alloys used for aluminum trailer roof coils may vary by manufacturer and their specific requirements. However, one common alloy used for such applications is 3003 aluminum alloy in the H14 or H16 temper.

Alloy 3003 is a non-heat treatable alloy with excellent corrosion resistance. Commonly used in a variety of applications requiring moderate strength and good formability. Adding manganese to the alloy increases its strength and makes it easy to work into different shapes.

  • H14 represents the strain hardening state, which means that the aluminum alloy has undergone a cold working process to increase its strength.
  • The H16 temper also represents the strain hardening state, but is slightly stronger than H14.

3003 H16 Aluminum coil for trailer roof condition offers good strength and stability which is ideal for roofing applications where the material needs to withstand a wide range of weather conditions.

3003 Aluminum Tensile Strength (MPa) Yield Strength (MPa)
3003 H14 Aluminum 130-180 85-145
3003 H16 Aluminum 160-200 140-180
3003 Aluminum Elongation (%) Hardness (Brinell)
3003 H14 Aluminum 10-14 40
3003 H16 Aluminum 5-10 50

3003 H14 H16 Aluminum Coil for Trailer Roof

The specific alloy and temper used for Aluminum Trailer Roof Coil may vary depending on the manufacturer's specifications and intended application. It is always advisable to consult the manufacturer or supplier for accurate information on the alloys and tempers used in their products.

Aluminum Coil for Trailer Roof Advantage

  • Lightweight : Aluminum is much lighter than many other roofing materials such as steel. This lightweight feature of aluminum reduces the overall weight of the trailer, which improves fuel efficiency and increases payload capacity.
  • Corrosion Resistance : Aluminum has excellent corrosion resistance, especially when compared to materials such as iron or steel. It is highly rust-resistant and can withstand moisture, UV rays and harsh weather conditions, making it suitable for outdoor applications such as trailer roofs.
  • Durability : Aluminum is a durable material that can withstand impacts and harsh environments. It is less likely to crack, warp or become brittle, ensuring the longevity and structural integrity of your trailer roof.
  • Formability : Aluminum can be easily formed and molded into various configurations, allowing for custom designs and easy installation on trailer roofs. It molds to fit the contours of the trailer, creating a seamless and visually appealing look.
  • Thermal reflectivity : Aluminum has a high thermal reflectivity, which means it reflects a large portion of solar radiation. This reflective property helps reduce heat gain, keeping the trailer interior cool and improving energy efficiency.
  • Recyclability : Aluminum is highly recyclable, making it an environmentally friendly choice. It can be recycled repeatedly without losing its properties, reducing waste and promoting sustainability.
  • Aesthetic Appeal : The aluminum coil used for the roof of the trailer has a simple and modern appearance. It can be finished with different coatings and finishes to enhance its visual appeal, giving the trailer a stylish and attractive look.
  • Low Maintenance : Aluminum requires minimal maintenance compared to other roofing materials. It does not require regular painting or sealing, and is resistant to staining and discoloration, reducing the need for frequent cleaning or repairs.
  • Wide availability : Aluminum coils for trailer roofs are available in a variety of sizes and thicknesses, making them easily available to manufacturers and builders.
  • Cost Effective : While aluminum may have a higher upfront cost compared to some materials, its long-term benefits such as durability, low maintenance, and recyclability make it a cost-effective choice for the life of the trailer.

Typical Aluminum Alloy for Trailer Roof

In addition to the aforementioned 3003 aluminum alloy, there are other aluminum alloys that can be used for trailer roof membranes, depending on specific requirements and preferences. Here are some examples :

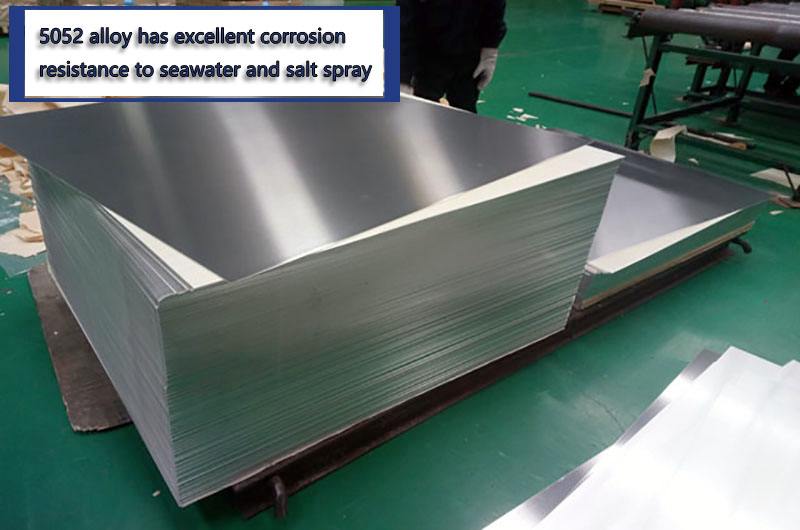

5052 Aluminum Coil for Trailer Roof

5052 aluminum alloy has good corrosion resistance, high fatigue strength and excellent weldability. 5052 Aluminum Coil is typically used in applications requiring high strength and salt water corrosion resistance.

5052 Aluminum Coil for Trailer Roof

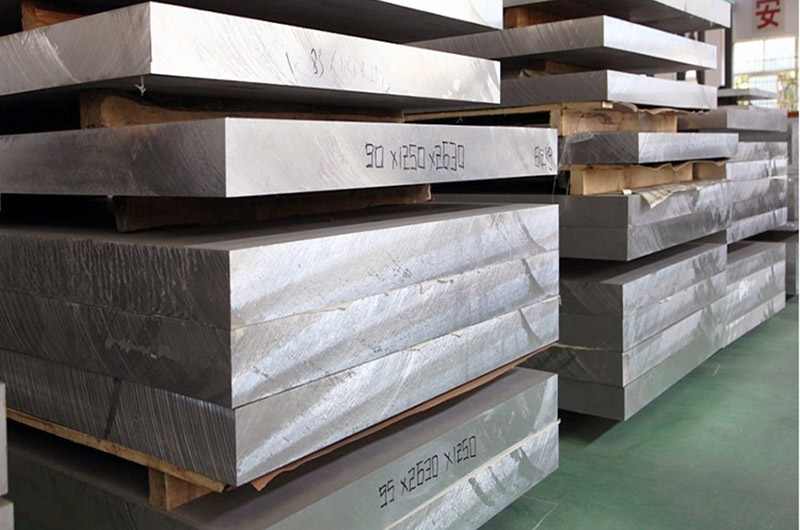

6061 Aluminum Alloy for Trailer Roof

6061 aluminum alloy is known for its excellent strength to weight ratio and good corrosion resistance. 6061 Aluminum Coil is typically used in structural applications where high strength and durability are valued.

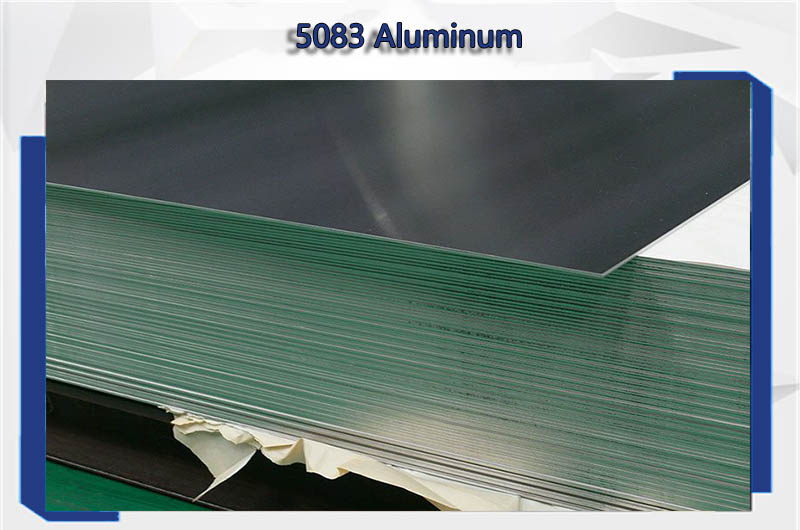

5083 Aluminum Coil for Trailer Roof

5083 Aluminum Coil is mainly used in marine applications due to its excellent corrosion resistance in harsh environments. 5083 Aluminum Coil is high strength and is commonly used on trailer roofs in marine or coastal areas.

5083 Aluminum Coil for Trailer Roof

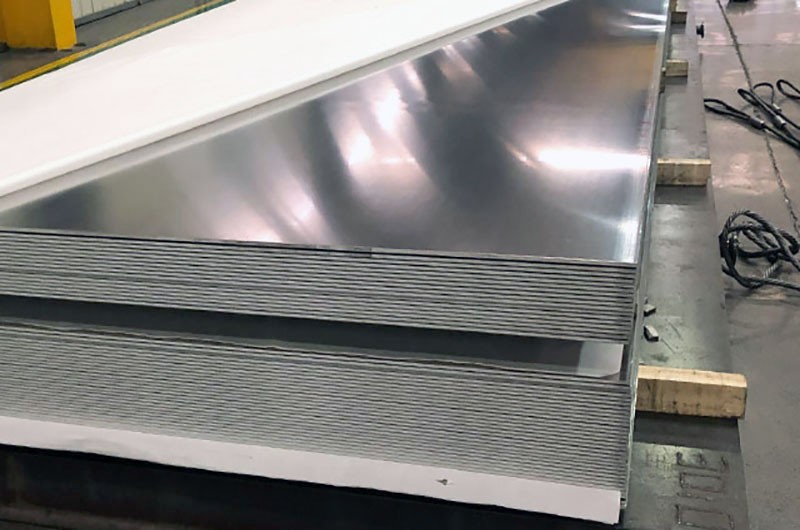

3105 Aluminum Alloy for Trailer Roof

3105 Aluminum Alloy is typically used in general purpose applications requiring moderate strength and good corrosion resistance. 3105 Aluminum has good formability and weldability.

Apart from this, there are many other aluminum alloys available that can be used for trailer roof coils. Alloy selection will depend on factors such as trailer specific requirements, environmental conditions, budgetary considerations, and manufacturer or end user preference. It is always advisable to consult the manufacturer or supplier to determine the most suitable alloy for a particular trailer roof application.

Aluminum for Trailers

In addition to trailer roofs, aluminum coils are used in various other parts of trailers. Some common applications for aluminum coils on trailers include :

  • Trailer Siding and Exterior Panels
    • Siding and Exterior Panels : Aluminum coils are commonly used to manufacture trailer exterior siding and panels. Aluminum's lightweight properties and its resistance to corrosion make it a popular choice for these applications.
    • Alloys : Aluminum alloys such as 3004 or 3105 are commonly used for trailer siding and outer panels. These alloys have good formability and corrosion resistance

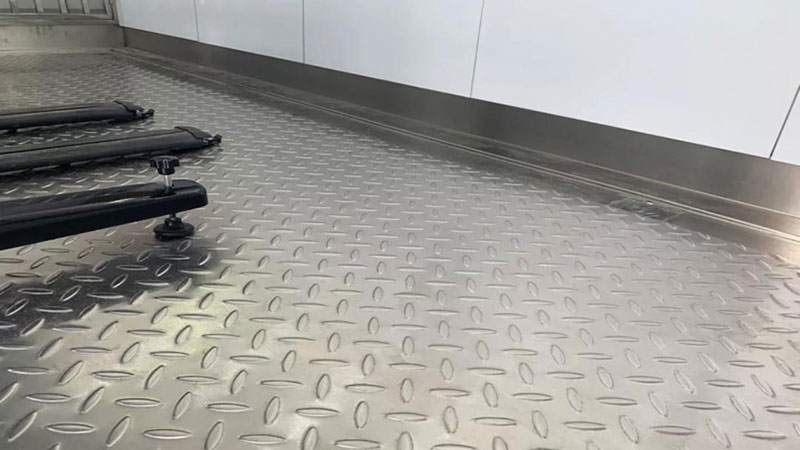

    Trailer Flooring and Decking

  • Trailer Flooring and Decking
    • Floor and trim panels : Aluminum coils can be used for trailer floors and trim panels. The durable and non-slip properties of aluminum make it suitable for strong and reliable trailer floors.
    • Alloys : Typically alloys such as 5052 or 6061 are used, which offer good strength and durability.
  • Trailer Trim and Molding
    • Trim and Forming : Aluminum coils are used to make trim and moldings for trailers. These components provide a finishing touch and help protect the edges and corners of the trailer.
    • Alloys : Alloys such as 6063 or 6061 are commonly used for trimming and forming of trailers, these alloys have good formability and can be heat treated to obtain the required strength and shape.

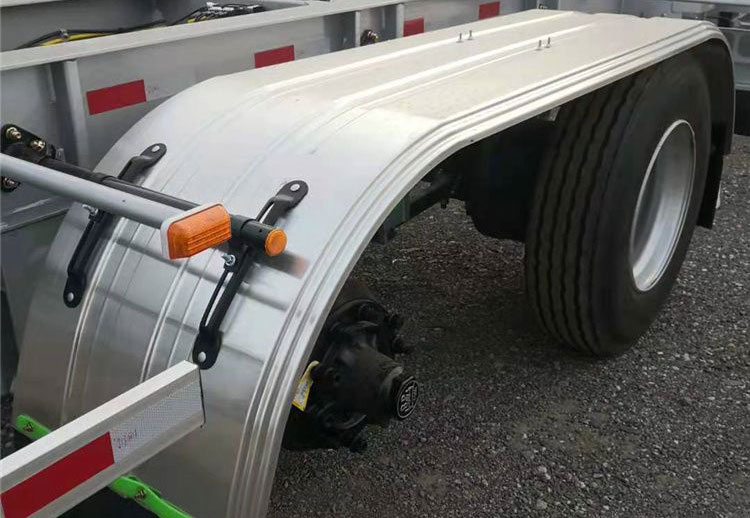

  • Trailer Fenders
    • Fenders : Aluminum coils can be used to make trailer fenders. Fenders help protect trailer wheels and tires from debris and provide a streamlined look.
    • Alloys : Aluminum alloys such as 5052 or 6061 are commonly used in trailer fenders, these alloys have good strength and corrosion resistance.

    Trailer Fenders

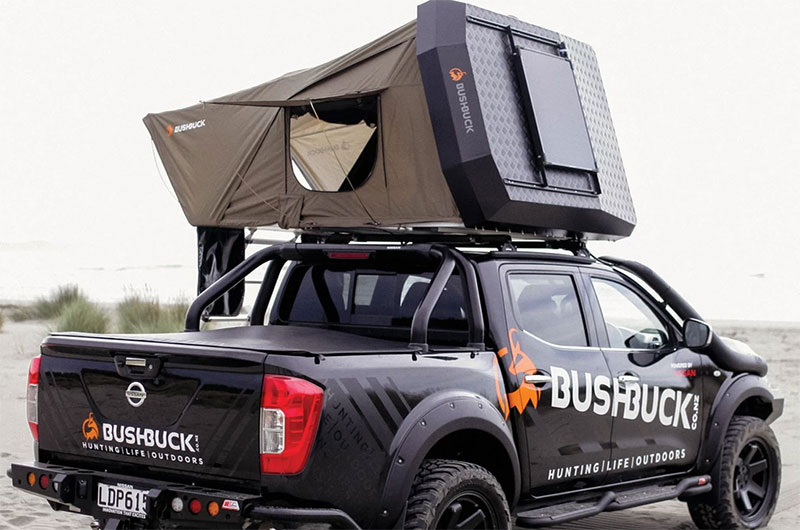

  • Trailer Storage Compartments
    • Storage boxes : Aluminum rolls can be made into panels for storage boxes on trailers. These compartments provide secure storage for various equipment and items while in transit.
    • Alloys : Alloys such as 5052 or 3003 can be used for storage compartment panels, these alloys have good formability and corrosion resistance.

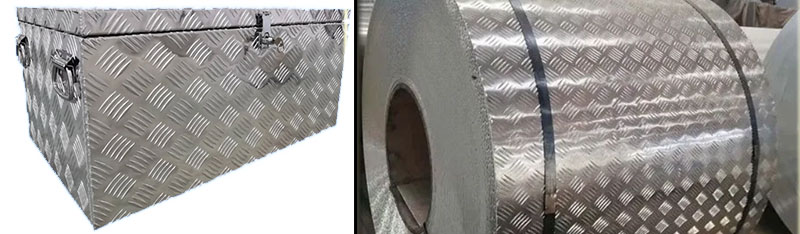

    Trailer Storage Compartments

  • Frame and Structural Components
    • Frame and Structural Components : In some cases, aluminum coils are used in the construction of trailer frames and structural components. Aluminum's high strength-to-weight ratio makes it an attractive option for reducing overall trailer weight while maintaining structural integrity.
    • Alloys : Alloys such as 5052 or 3003 can be used for storage compartment panels, these alloys have good formability and corrosion resistance.

When installing an aluminum trailer roof, unwind the coil and secure it to the trailer structure using screws, rivets, or adhesive. Proper installation techniques are critical to ensuring a waterproof and safe roof.

It's worth noting that while aluminum is a common material for trailer roofs, there are other options such as steel or fiberglass. The choice of material depends on factors such as budget, intended use, and personal preference.
