5182 Aluminum Plate Sheet

Status : H19/H32/H111/H116 Rich Production Experience

A trusted supplier of 5182 aluminum sheet, providing customers with quality products, reliable service, and timely delivery.

Table of Contents
  1. What is Aluminum Grade 5182?
  2. 5182 Aluminum Plate Specifications
  3. 5182 Aluminum Plate Typical Mechanical Properties
  4. Typical 5182 Aluminum Plate
    1. 5182 O Aluminum Plate Sheet
    2. 5182 H111 Aluminum Plate Sheet
    3. 5182 H112 Aluminum Plate Sheet
    4. 5182 H116 Aluminum Plate Sheet
    5. 5182 H321 Aluminum Plate Sheet
  5. 5182 Aluminum Plate Chemical Composition Limits
  6. 5182 Aluminum Plate Physical Properties
  7. Applications of Aluminum Plate 5182
    1. 5182 Aluminum for Automotive Industry
    2. 5182 Aluminum for Can Manufacturing
    3. 5182 Aluminum for Marine Industry
    4. 5182 Aluminum for Construction Industry
  8. What is the Difference between 5182 and 5052?
    1. Chemical Composition
    2. Applications
    3. Mechanical Behavior

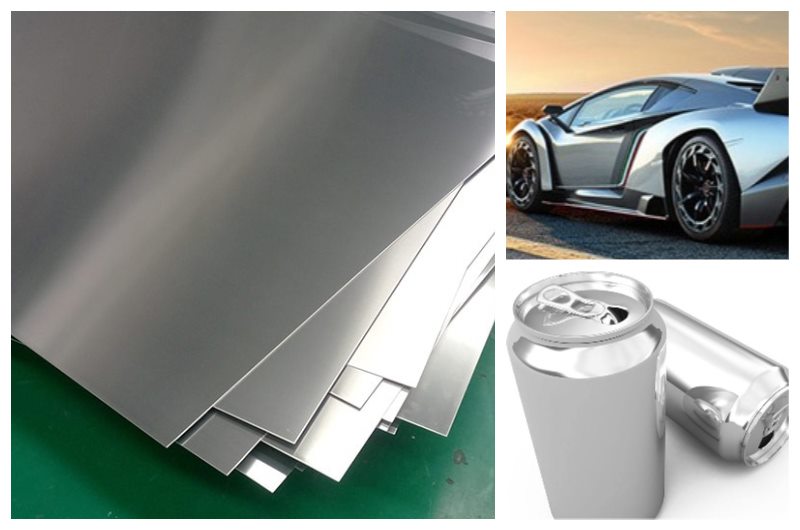

What is Aluminum Grade 5182?

5182 aluminum is a non-heat treatable alloy known for its excellent corrosion resistance, weldability and formability. This makes it a popular choice for applications requiring high strength and lightweight material,

Aluminum grade 5182 is an aluminum alloy primarily used in the manufacture of beverage cans and automotive body panels :

  • Primarily used in the construction of automotive body panels, fuel tanks and structural components.
  • 5182 aluminum alloy is commonly used for can ends, labels and rings because of its ability to withstand the stress and pressure of the canning process.

Aluminum Grade 5182

5182 Aluminum Plate Specifications

Property Value
Thickness 0.15mm-600mm
Width 20mm-2650mm
Length as required
Temper O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114, H116, H321
Surface treatment mill finish, polished, anodized, brushed, sandblasted, embossed, etc.
Certification ISO 9001, SGS, BV, CE, etc.
EQ 5182 UNS A95182, ISO AlMg4.5Mn0.7, AA 5182EN , AW-5182

5182 Aluminum Plate Typical Mechanical Properties

The mechanical properties of 5182 aluminum alloy sheet will vary depending on the tempering or heat treatment employed.

Property Value
Tensile strength 260 - 305 MPa (38, 000 - 44, 000 psi)
Yield strength 125 - 215 MPa (18, 000 - 31, 000 psi)
Elongation 10 - 20%
Hardness 75 - 95 Brinell (HB)

Typical 5182 Aluminum Plate

Temper Tensile Strength (MPa)
5182 O Aluminum Plate 290-305
5182 H111 Aluminum Plate 305-345
5182 H112 Aluminum Plate 315-345
5182 H116 Aluminum Plate 315-355
5182 H321 Aluminum Plate 355-400
Temper Yield Strength (MPa)
5182 O Aluminum Plate 115-120
5182 H111 Aluminum Plate 175-185
5182 H112 Aluminum Plate 245-265
5182 H116 Aluminum Plate 240-255
5182 H321 Aluminum Plate 320-345
Temper Elongation (%)
5182 O Aluminum Plate 25-28
5182 H111 Aluminum Plate 12-14
5182 H112 Aluminum Plate 10-12
5182 H116 Aluminum Plate 10-12
5182 H321 Aluminum Plate 8-10

5182 O Aluminum Plate Sheet

The O temper is the lowest strength and highest formability in the annealed state, and the specification usually used for this temper is ASTM B209.

  • Advantages : Its excellent formability and processability.
  • Application : It is often used to make complex parts such as hardware, trim and trim

5182 H111 Aluminum Plate Sheet

H111 : This is the softest temper in the alloy, also called strain-free annealing. This state is slightly more intense than the O state.

  • Advantages : Its excellent formability, processability and corrosion resistance.
  • Application : It is often used to make parts that require good formability, such as cans, bottle caps and lids.

5182 H111 Aluminum Plate Sheet

5182 H112 Aluminum Plate Sheet

H112 : This temper is suitable for applications requiring good formability and moderate strength, with some strain hardening.

  • Advantages : Its excellent formability, processability and corrosion resistance.
  • Application : Most common tempering for automotive body panels.

5182 H112 Aluminum Plate Sheet

5182 H116 Aluminum Plate Sheet

H116 : This is a high strength temper and the specification usually used for this temper is ASTM B928.

  • Advantages : Excellent strength, corrosion resistance and formability.
  • Application : Suitable for structural components in marine applications.

5182 H321 Aluminum Plate Sheet

H321 : This is a strain hardened and steady state, the specification usually used for this temper is ASTM B209.

  • Advantages : It has excellent strength, stress corrosion resistance and weldability, which can provide higher strength and higher stress corrosion resistance.
  • Application : This temper is often used in the construction of fuel tanks.

5182 Aluminum Plate Chemical Composition Limits

Property Value
Aluminum (Al) 95.8% - 97.2%
Magnesium (Mg) 4.0% - 5.0%
Manganese (Mn) 0.2% - 0.8%
Chromium (Cr) 0.15% - 0.35%
Iron (Fe) 0.35% (max)
Silicon (Si) 0.20% (max)
Copper (Cu) 0.15% (max)
Zinc (Zn) 0.25% (max)
Titanium (Ti) 0.15% (max)
Other elements 0.05% (max)

5182 Aluminum Plate Physical Properties

Property Value
Density 2.68 g/cm³ (0.097 lb/in3)
Melting point 580°C (1076°F)
Thermal conductivity 138 W/m-K (80 Btu/(hr-ft-°F))
Electrical conductivity 35-40% IACS (International Annealed Copper Standard)
Coefficient of thermal expansion 23.1 x 10^-6 K^-1 (12.8 x 10^-6 in/in-°F)

These physical properties make 5182 aluminum alloy a relatively lightweight thermally conductive material with good electrical conductivity. Its low coefficient of thermal expansion makes it suitable for applications where dimensional stability is important, and its moderate melting point allows easy processing using conventional manufacturing methods.

Applications of Aluminum Plate 5182

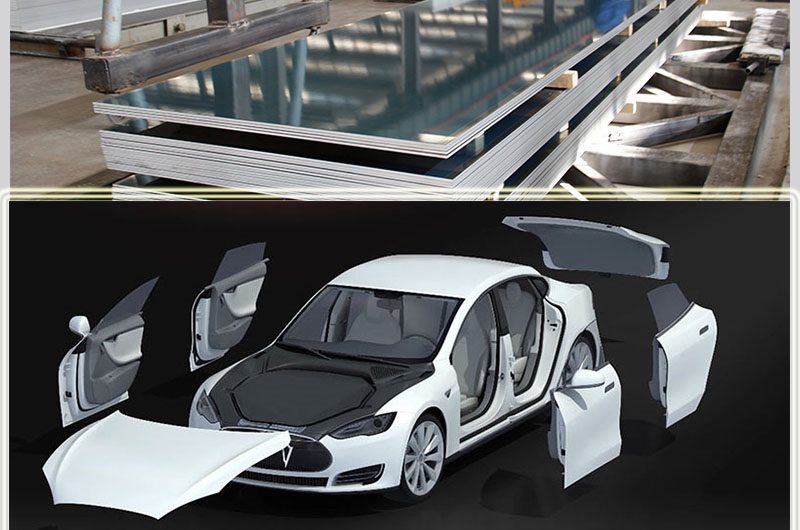

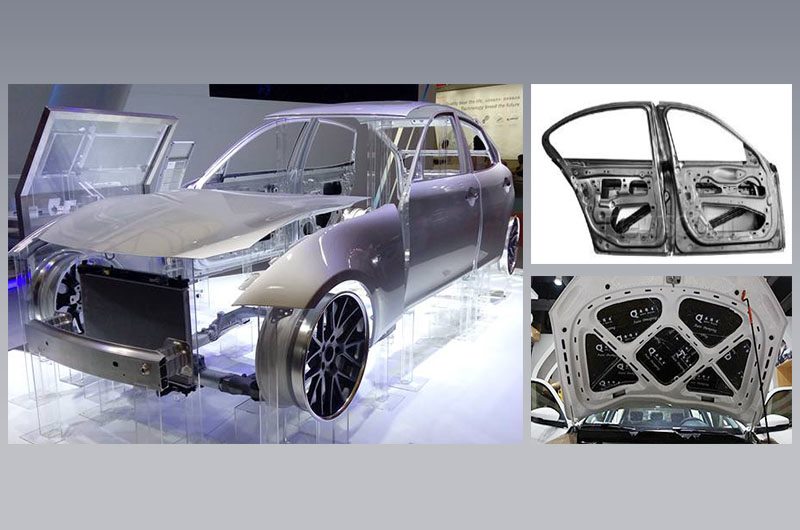

5182 Aluminum for Automotive Industry

  • Status : H111
  • Advantages : It can reduce the weight of the whole vehicle, improve fuel economy and safety performance.
  • Application : 5182 aluminum plate is widely used in automobile body, door, roof, compartment and other parts.

Click to learn more aboutAutomotive Aluminum Plate

5182 Aluminum for Automotive Industry

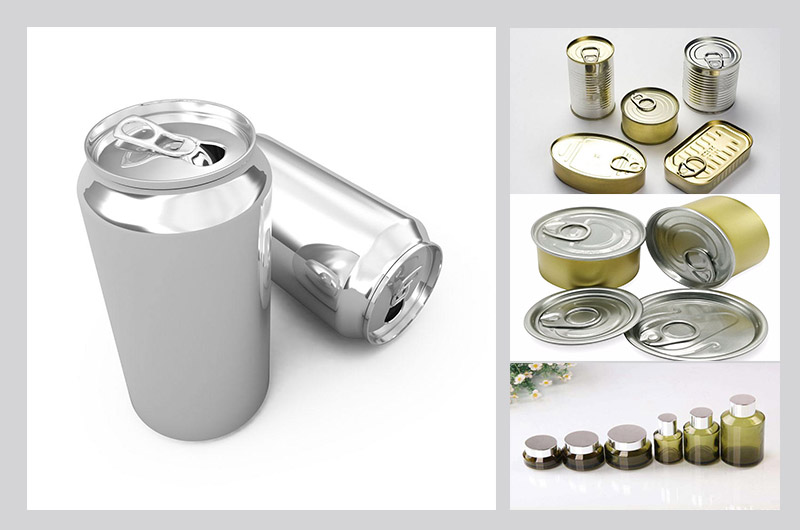

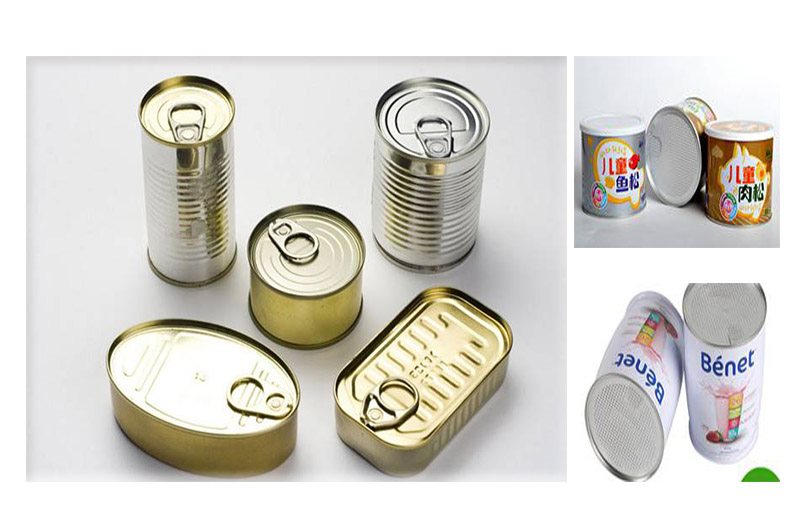

5182 Aluminum for Can Manufacturing

  • Status : H19
  • Advantages : It has high sealing and decorative performance.
  • Application : It can be used to make various canning containers such as beverage cans, food cans, and cosmetic cans.

5182 Aluminum for Can Manufacturing

5182 Aluminum for Marine Industry

  • Status : H116
  • Advantages : Due to its good corrosion resistance, it is especially suitable for marine environments.
  • Application : It can be used to make ship decks, hulls, fuel tanks, bulkheads and other components.

Click to learn more aboutMarine Grage Aluminum Plate

5182 Aluminum for Construction Industry

  • Status : H32
  • Advantages : It has excellent fire prevention, sound insulation, heat preservation and other properties.
  • Application : It can be used to make architectural decoration materials such as curtain wall panels, roof panels, and partition panels.

可能你想看

What is the Difference between 5182 and 5052?

Both 5182 and 5052 are aluminum alloys, the choice between 5182 and 5052 will depend on the specific application and the desired properties of the material.

Chemical Composition

  • 5182 is an alloy containing magnesium, aluminum and a small amount of manganese.
  • 5052 is an alloy containing magnesium and aluminum.

Applications

  • 5182 is commonly used in the manufacture of automotive components such as body panels and chassis components, as well as in the production of cans and containers for the food and beverage industry.
  • 5052 is typically used in applications requiring greater strength and durability, such as the construction of aircraft and boats.

Mechanical Behavior

5052 has a higher tensile and yield strength than 5182. Additionally, 5052 has higher fatigue strength and is more resistant to fatigue cracking than 5182.
