- Features of mirror aluminum coils
- Mirror Aluminum Sheet Coil Dimensions
- Mirror Aluminum Sheet Coil Applications
- Mirror Aluminum Sheet Coil Surface Treatment
- Mirror aluminum coil related informations

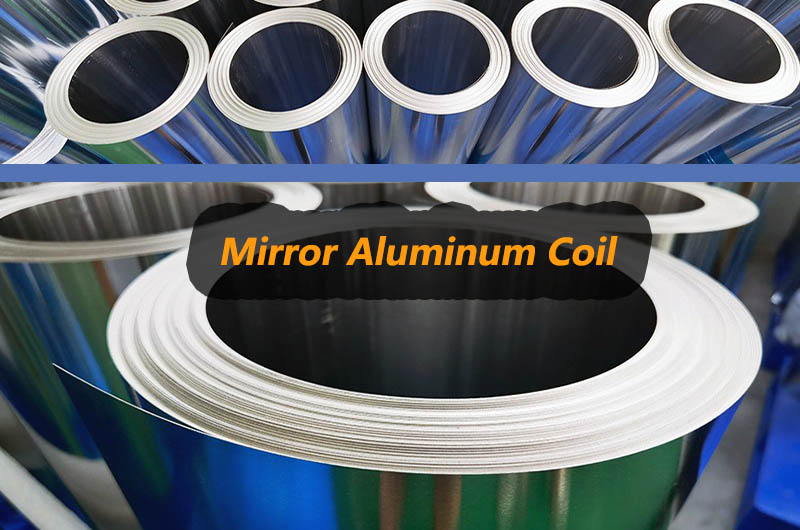

Polished mirror aluminum coil refers to the aluminum coil that has been processed to have a mirror-like reflective surface. They are usually made of aluminum alloys with high reflectivity, the most commonly used alloy being 1060.
The reflective properties of mirror-coated aluminum coils are achieved through a mirror-anodized aluminum substrate that is perfectly coated and sealed. Scratch-resistant clear coat protects surfaces and provides excellent exterior durability.
The reflectivity of mirror aluminum coils can reach more than 86%, and the reflectivity of high-reflection mirror aluminum coils can reach more than 95%. The surface is scratch-free, easy to clean, and the edges are burr-free. Can be coated on one or both sides according to customer requirements.
1060 aluminum coil is highly reflective and easy to process, making it suitable for a variety of applications. However, other alloys such as 1050 and 1100 can also be used depending on specific application requirements.
Polished Mirror Aluminum Sheet/coil can be used as a reflective material according to the lighting function, which can increase the light efficiency by more than 60% and save energy. Use various methods to polish the aluminum coil, including mechanical polishing, chemical polishing or electrolytic polishing, to obtain smooth and Reflective surface. Then, apply a protective film to prevent damage during shipping and handling.

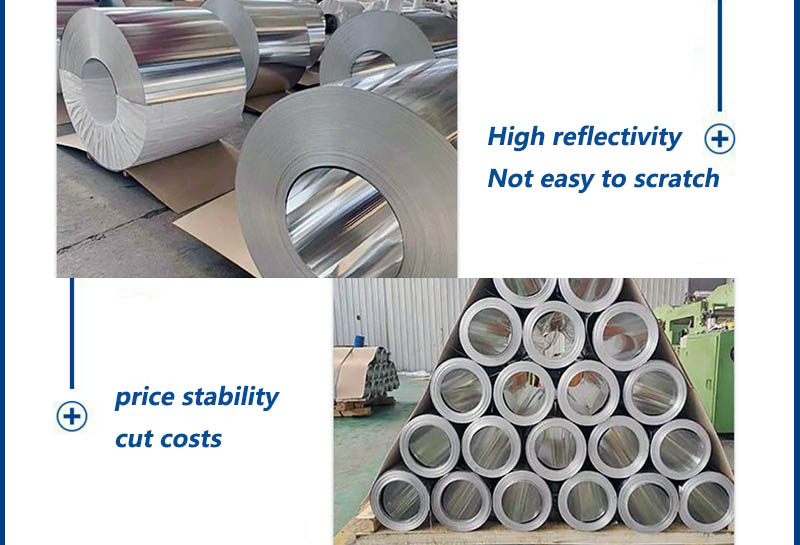

Features of mirror aluminum coils
- a. High reflectivity
- b. Smooth surface, easy to clean, not easy to scratch
- c. Price stability and cost saving
- d. Direct processing without pretreatment
- e. Flammable, fireproof, waterproof, moisture-proof, sound and heat insulation, corrosion-resistant, easy to maintain
- f. Durable and washable
- g. Light weight and excellent decorative performance
- h. The color of the surface used indoors can be stable for 10 years.
Mirror Aluminum Sheet Coil Dimensions
Polished Mirror Aluminum Coils are available in a variety of sizes and thicknesses to suit different application requirements.
- Alloy : Typically 1050, 1060, 1100, 3003, 3105
- Thickness : 0.15mm - 3.0mm
- Width : 20mm - 1300mm
- Length : can be customized
- Reflective Rate: 86%-95%
General specifications of mirror aluminum coils: 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm and 1mm thick mirror aluminum coils are generally commonly used specifications, with a width of 1m or 1.25m
| Alloy | Tensile Strength (MPa) |
|---|---|
| 1050 Mirror Aluminum Coil | 95-130 |
| 1060 Mirror Aluminum Coil | 100-140 |
| 1100 Mirror Aluminum Coil | 95-135 |
| Alloy | Yield Strength (MPa) |
|---|---|
| 1050 Mirror Aluminum Coil | 35-75 |
| 1060 Mirror Aluminum Coil | 40-80 |
| 1100 Mirror Aluminum Coil | 35-75 |
| Alloy | Elongation (%) |
|---|---|
| 1050 Mirror Aluminum Coil | 25-35 |
| 1060 Mirror Aluminum Coil | 25-35 |
| 1100 Mirror Aluminum Coil | 25-35 |
| Alloy | Minimum Total Reflectivity |
|---|---|
| 1050 Mirror Aluminum Coil | 86% |
| 1060 Mirror Aluminum Coil | 86% |
| 1100 Mirror Aluminum Coil | 85% |
| Alloy | Diffuse Reflectivity |
|---|---|
| 1050 Mirror Aluminum Coil | 7% |
| 1060 Mirror Aluminum Coil | 7% |
| 1100 Mirror Aluminum Coil | 8% |

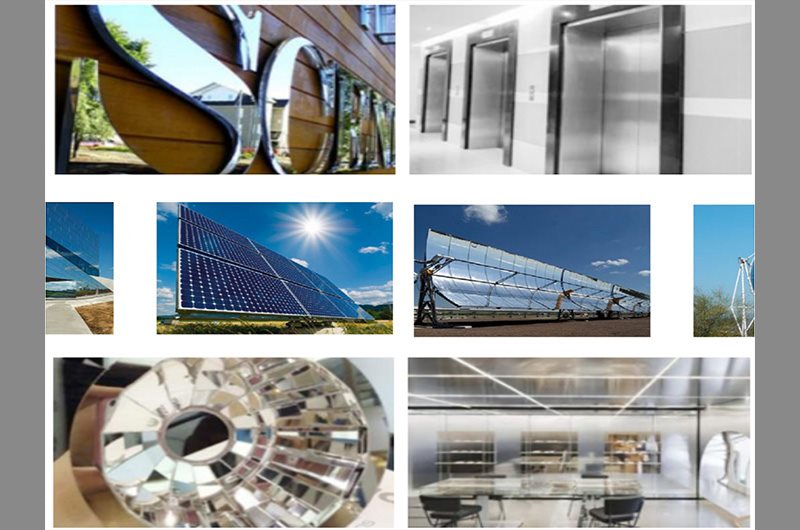

Mirror Aluminum Sheet Coil Applications
| Applications | Description | Examples |
|---|---|---|
| Interior décor | Wall cladding, ceiling, furniture, and cabinets | Wall panels, ceiling tiles, cabinets, furniture |
| Lighting | Reflective lampshades and fixtures | Lampshades, lighting fixtures |
| Reflective signs | Advertising and traffic signs | Billboards, traffic signs, reflective road markings |
| Solar reflectors | Energy-saving building materials | Solar reflector panels, roof insulation |
When the mirror aluminum plate is used as interior decoration, the mirror reflection effect can expand the space and present an illusory effect.
Polished mirror-finish aluminum coils are used to produce solar reflectors that contribute to building energy efficiency.
Aluminum mirrors can also be used in building curtain walls, household appliances, electronic product casings, panel furniture kitchens, interior and exterior decoration of automobiles, signs, hang tags, luggage, jewelry boxes and other fields.
Mirror Aluminum Sheet Coil Surface Treatment

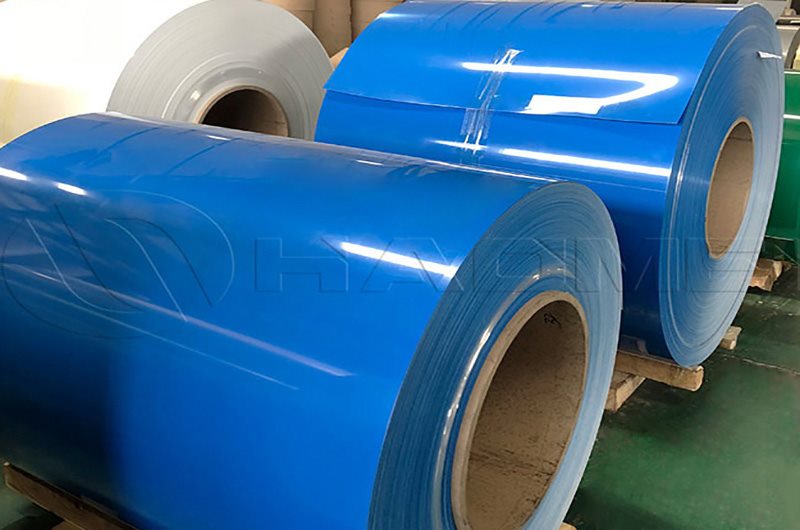

Color Coated Mirror Aluminum Coil Sheet
A layer of color coating is added to the surface of the aluminum coil by spraying, which can not only play a beautiful role, but also can be waterproof, fireproof and heat insulating.
- The commonly used thickness : 0.2-3.0mm
- Reflectivity : generally about 80%
- Color : the specific color and effect can be customized according to different needs.
- Alloy : 1100, 3003, 3004, 3105, 5005, 5052, etc.
- State : H24, H26, H28, etc.
Color Coated Mirror Aluminum Coil Sheet is often used in interior decoration or lighting manufacturing, home appliances, furniture and other fields, such as exterior wall decorative panels, refrigerator shells, furniture finishes, showcases, etc. In the field of home appliances, color-coated aluminum coils are widely used to make casings and panels of home appliances such as refrigerators and air conditioners.
Embossed aluminum mirror sheet/coil
Embossed aluminum mirror sheet/coil usually refers to an aluminum sheet or coil that has been embossed to form a pattern or texture on the surface.
- orange peel embossed aluminum mirror coil
- bean embossed aluminum mirror coil
- 5 bar embossed aluminum mirror coil
- pebble embossed aluminum mirror coil
- spherical pattern embossed aluminum mirror coil
- diamond pattern embossed aluminum mirror coil
Embossed aluminum mirror sheet/coil can be used in a variety of applications including interior decoration, signage, automotive parts and more. The embossed pattern adds to the aesthetic, while the reflective surface creates a sleek, modern look.
Anodized aluminum mirror sheet coil
Anodized aluminum mirror sheet or coil refers to aluminum sheets or coils that have undergone the anodization process and have a mirrored or polished finish.
Common alloy 1085, thickness 0.2-1.0mm, reflectivity greater than 86%, is mostly used in exterior wall projects, etc., and has good weather resistance. Generally more expensive than polished mirror aluminum coils.
Applications: Anodized aluminum mirror sheets or coils are commonly used in architectural, interior design, and decorative applications. They are utilized for wall cladding, ceiling panels, signage, and other surfaces where a reflective and aesthetically pleasing finish is desired.

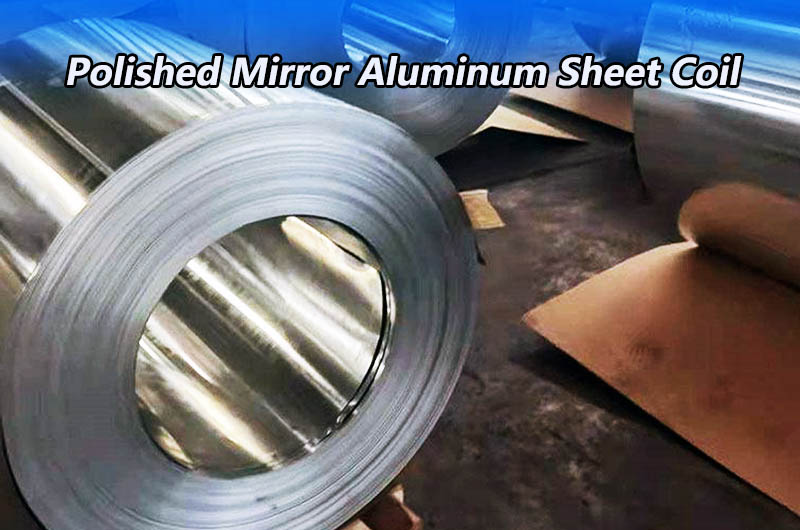

Polished Mirror Aluminum Sheet Coil
Polished Mirror Aluminum Sheet coil makes the surface of the aluminum coil smooth and smooth by mechanical polishing, which has a good decorative effect.
Ordinary alloy 1050/1060, thickness 0.3-0.6mm, reflectivity 75%-80%, mostly used for interior decoration or lighting manufacturing.
- The commonly used thickness : 0.2-3.0mm
- Reflectivity : generally above 80%
- Alloy : 1050, 1070, 3003, 5052, etc.
- State : O, H14, H16, etc.
This processing method is often used in high-end decoration, furniture, electronic products and other fields, such as TV frames, electrical shells, furniture products, etc.
Sandblasting Mirror Aluminum Sheet Coil
The surface of the aluminum coil is roughened by high-pressure sandblasting, which can enhance the wear resistance and adhesion of the aluminum coil.
- The commonly used thickness : 0.2-2.0mm
- Reflectivity : generally about 80%
- Alloy : 1060, 3003, 5052, 6061, etc.
- Status : O, H14, H16, H18, etc.
This treatment method is often used in interior decoration, electronic products, automotive parts and other fields, such as computer cases, body moldings, air conditioning vents, etc.
Spraying Treatment Mirror Aluminum Sheet Coil
Add a layer of anti-corrosion and decorative coating on the surface of the aluminum coil by spraying.
- The commonly used thickness : 0.2-3.0mm
- Reflectivity : generally about 80%
- Alloy : 3003, 3004, 3105, 5005, 5052, etc.
- State : H24, H26, H28, etc.
This treatment method is often used in the fields of outdoor building curtain walls, home appliances, and automobile casings, such as aluminum-plastic panels, air-conditioning external units, and automobile casings.
Mirror Aluminum Coil for anti-fingerprint treatment
Adding a special coating on the surface of the aluminum coil can effectively prevent the effects of stains such as fingerprints.
- The commonly used thickness : 0.2-2.0mm
- Reflectivity : generally about 80%
- Alloy : 3003, 3105, 5005, 5052, etc.
- State : H24, H26, H28, etc.
This processing method is often used in home appliances, handheld devices, doors and windows, such as TV backplanes, smartphone casings, door and window frames, etc.
Thermal Transfer Processing Mirror Aluminum Coil
The pattern, pattern, etc. are transferred to the surface of the aluminum coil by thermal transfer technology, which has a good decorative effect.
- The commonly used thickness : 0.2-3.0mm
- Reflectivity : generally about 80%
- Alloy : 3003, 3004, 3105, 5005, 5052, etc.
- State : O, H14, H16, etc.
This treatment method is often used in advertising signs, decorative panels, furniture and other fields, such as billboards, restaurant decorative panels, furniture finishes, etc.
Electrochemical Polishing Aluminum Coil
The oxide layer on the surface of the aluminum coil is dissolved by an electrochemical reaction to make the surface smooth and bright, which can increase its reflectivity.
- Alloy : 1050, 1070, 3003, 5052, etc.
- State : O, H14, H16, etc.
This treatment is commonly used in mirrors, solar reflectors, LED lights, etc.
