1060 Aluminum Coil

Smooth Surface Reasonable Price

Haomei Aluminum 1060 aluminum coil has a smooth surface and high cleanliness, which is suitable for polymer welding, and the product has good elongation and tensile strength, which can fully meet the conventional processing requirements (stamping, stretching) and high formability.

Table of Contents
  1. 1060 Aluminum Coil Surface Treatment Process
    1. 1060 Anodized Aluminum Coil
    2. 1060 Mirror Aluminum Coil
    3. 1060 Coated Aluminum Coil
  2. Commonly used 1060 Aluminum Coil
    1. 1060 H14/H16/H18 Aluminum Coil
    2. 1060 H24/H26/H28 Aluminum Coil
  3. 1060 Aluminum Coil Application
  4. Chemical Composition of 1060 Aluminum Coil
  5. Mechanical Properties of 1060 Aluminum Coil

1060 aluminum coil has excellent mechanical properties and processing properties. It is easy to carry out deep drawing and forming. The surface of the processed product is smooth and smooth. It can be used for various decorations and surface treatments, such as spraying, oxidation and other treatments. In addition, 1060 aluminum coil also has good electrical and thermal conductivity, and is widely used in the manufacture of electronic components and radiators.

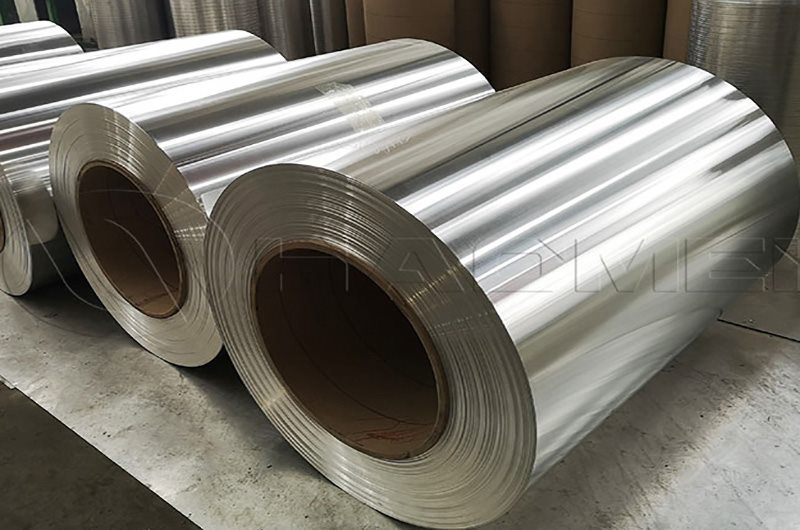

1060 aluminum coil

1060 aluminum coil is an aluminum alloy coil product made of aluminum with a purity of more than 99.6%. It has good machinability, formability and corrosion resistance, and is widely used in electronics, chemical industry, construction and other fields. Common specifications have a thickness between 0.1mm and 3.0mm, and a width between 100mm and 1600mm.

1060 Aluminum Coil Surface Treatment Process

  • Anodized treatment : After the surface of 1060 aluminum coil is Anodized, a layer of oxide film can be formed, which can improve the surface hardness and corrosion resistance of the aluminum coil, and at the same time increase the aesthetics of the surface. Anodized treatment is mainly divided into two methods : sulfuric acid Anodized and sulfuric acid chromic acid Anodized. (Anodized treatment, Anodized)
  • Electrophoretic coated (Electrophoretic coated) After the surface of the 1060 aluminum coil is treated by electrophoretic coated, a uniform coated can be formed on the surface, which can improve the corrosion resistance, wear resistance and aesthetics of the aluminum coil. Electrophoretic coated is an efficient surface treatment method, suitable for the production of various coatings, such as polyester, polyamide, epoxy resin and other coatings. (Electrophoretic painted/coated)
  • Spraying : After the surface of 060 aluminum coil is sprayed, a uniform coating can be formed, which can improve the aesthetics and corrosion resistance of the aluminum coil. Spraying methods include different spraying methods such as paint spraying and powder spraying, which can be selected according to different needs. (Spray painting/coating)

Coated (Coated) After the surface of 1060 aluminum coil is coated, a layer of metal film or organic film can be formed, which can improve the corrosion resistance and anti-oxidation performance of the aluminum coil, and can also increase the hardness and aesthetics of the surface. Common coating methods include electroplating, spraying, etc. (Coated/plated)

1060 Anodized Aluminum Coil

1060 Anodized aluminum is corrosion-resistant and has an attractive appearance, with various color options available. It is often used in architectural and decorative applications, such as building facades, signage, and interior design elements.

1060 Mirror Aluminum Coil

1060 mirror aluminum coils are polished to a high degree of reflectivity, creating a mirror-like surface finish.

1060 mirror aluminum coils find application in various industries, including lighting fixtures, solar reflectors, decorative items, and automotive components where a reflective and aesthetically pleasing surface is desired.

1060 Mirror Aluminum Coil

1060 Coated Aluminum Coil

1060 coated aluminum coils are treated with various coatings or paints to enhance their performance and appearance.

Common coatings include polyester, epoxy, and PVDF (polyvinylidene fluoride). These coatings can provide improved durability, UV resistance, and color options.

Coated 1060 aluminum coils are used in a wide range of applications, such as roofing, cladding, curtain walls, and interior decoration, where protection, aesthetics, and weather resistance are essential.

In summary, 1060 aluminum coils can undergo different treatments to meet specific requirements in various industries. Anodizing improves corrosion resistance and appearance, mirror polishing creates reflective surfaces, and coatings enhance durability and aesthetics. The choice of treatment depends on the intended use and the desired properties of the aluminum coil.

Commonly used 1060 Aluminum Coil

Status Features
1060 H14 Aluminum Coil Good corrosion resistance, good formability
1060 H16 Aluminum Coil Good corrosion resistance, good formability, high strength
1060 H18 Aluminum Coil Goodcorrosion resistance, good formability and higher strength
1060 H24 Aluminum Coil Good corrosion resistance, deep drawing, good bending performance
1060 H26 Aluminum Coil Good corrosion resistance, good formability, high strength
1060 H28 Aluminum Coil Good corrosion resistance, good formability and higher strength

1060 H14/H16/H18 Aluminum Coil

1060 H14/H16/H18 Aluminum Coil is commonly used in food packaging, kitchen utensils, construction and decoration materials and other fields.

Common specifications :

  • The thickness : 0.2 - 4.5mm
  • The width : 1000 - 2650mm
  • Length : according to customer customization

1060 H14/H16/H18 Aluminum Coil

1060 H24/H26/H28 Aluminum Coil

1060 H24/H26/H28 Aluminum Coil has good corrosion resistance, deep drawability and bending performance. Commonly used in electronic parts, auto parts, aluminum containers, kitchen utensils and other fields.

Common specifications :

  • Thickness : 2 - 4.5mm
  • Width : 100 - 2650mm
  • Length : Customized

1060 Aluminum Coil Application

Application Status Example
Roofing and Ceiling 1060 O Aluminum Coil Residential and commercial roofing and ceiling panels
Insulation Material 1060 O Aluminum Coil HVAC and construction insulation
Heat Sink Material 1060 O Aluminum Coil LED and electronic device cooling
Packaging Material 1060 O Aluminum Coil Food and beverage packaging
Transportation 1060 H12/H14/H16/H18 Aluminum Coil Automotive and aerospace parts
Marine Applications 1060 H14/H16 Aluminum Coil Boat hulls and superstructures
Chemical Equipment 1060 H14/H16 Aluminum Coil Chemical storage tanks and piping
Pressure Vessels 1060 H14/H16 Aluminum Coil Gas cylinders and compressed air tanks
Power Generation 1060 H14/H16 Aluminum Coil Power transmission and distribution equipment

Haomei Aluminum 1060 aluminum coil

  • Roofs and Ceilings : 1060 aluminum coils are widely used in roofs and ceilings, mainly due to their good plasticity and corrosion resistance. 1060 aluminum coils are commonly used in building materials such as aluminum roofing sheets and aluminum ceiling sheets.
  • Insulating Material : The plasticity and conductivity of 1060 aluminum coil make it an ideal insulating material, usually used in cable protective layer, power equipment insulation, etc.
  • Heat Sink Material : 1060 aluminum coil is a high-quality heat sink material, which has good thermal conductivity and electrical conductivity. 1060 aluminum coil is usually used for heat dissipation of electronic devices such as LED lamps, computers and mobile phones.
  • Packaging Material : 1060 aluminum coil can be used in various food and beverage packaging, such as cans, beverage bottle caps, etc. 1060 aluminum coil not only has good corrosion resistance and antibacterial properties, but also has good plasticity, which is easy to process into various shapes and sizes.
  • Transportation : The light weight and plasticity of 1060 aluminum coil make it an ideal transportation material, which can be used to manufacture parts of transportation vehicles such as automobiles, trains and airplanes, such as body panels, doors, portholes, etc.
  • Marine Applications : 1060 aluminum coils are widely used in marine applications, it can be made into various hull structures and superstructure materials, such as hulls, hatch covers, ceilings and floors, etc. In these applications, 1060 aluminum coils often need to be hardened to improve their strength and corrosion resistance.
  • Chemical Equipment : 1060 aluminum coil can be made into chemical storage tanks, pipes and other equipment because of its good corrosion resistance and plasticity. In these applications, it is often desirable to use 1060 aluminum coils in the hardened state.
  • Pressure Vessels : 1060 aluminum coils can be used to manufacture various pressure vessels, such as gas cylinders and compressed air tanks. In these applications, it is often desirable to use 1060 aluminum coils in the hardened state.
  • Power Generation : 1060 aluminum coils can be used to manufacture power transmission and distribution equipment, such as transmission lines, transformers.

1060 aluminum coil is a common aluminum alloy product, usually used to make packaging materials. It has excellent corrosion resistance, good formability and processability, so it is widely used in the packaging industry.

Chemical Composition of 1060 Aluminum Coil

Element Composition (%)
Aluminum (Al) 99.60
Silicon (Si) 0.25
Iron (Fe) 0.35
Copper (Cu) 0.05
Magnesium (Mg) 0.03
Zinc (Zn) 0.05
Manganese (Mn) 0.03
Titanium (Ti) 0.03
Others (total) 0.03

Mechanical Properties of 1060 Aluminum Coil

Property Value
Tensile Strength 55, 000 psi
Yield Strength 21, 000 psi
Elongation 12%
Modulus of Elasticity 10, 000 ksi
Shear Strength 34, 000 psi
Poisson's Ratio 0.33
Density 2.71 g/cm³
Melting Point 643°C (1190°F)
