3104 Aluminum Coil

Exact Tolerance Rich Production Experience

Haomei Aluminum has many years of rich production experience to ensure the accuracy and stability of the thickness, width and surface quality of 3104 aluminum coils, and to respond and solve customer problems in a timely manner.

Table of Contents
  1. 3104 Aluminum Coil Main Features
  2. Mechanical Properties of 3104 Aluminum Coil (in H19 temper)
  3. 3104 Aluminum Coil Specifications
  4. 3104 Aluminum Coil Applications
  5. 3104 Aluminum Coil Key Application Introduction
    1. 3104 Aluminum Coil Canned Food Packaging
    2. Cans Body Aluminum Coil 3104
    3. 3104 Aluminum Coil For Kitchenware
    4. 3104 Aluminum Coil Building Decoration
    5. 3104 Aluminum Coil Packaging Materials
  6. Chemical Composition of 3104 Aluminum

As a deformed alloy, 3104 alloy has good forming ability, strong corrosion resistance and excellent welding ability. In addition, the excellent tensile strength and elongation properties give 3104 aluminum coils good deep drawing properties.

3104 aluminum coil has good deep drawing performance, drawing characteristics, corrosion resistance and processability as well as moderate ductility. It is suitable for thinning of stretched lightweight materials to reduce the amount of material used.

3104 Aluminum Coil

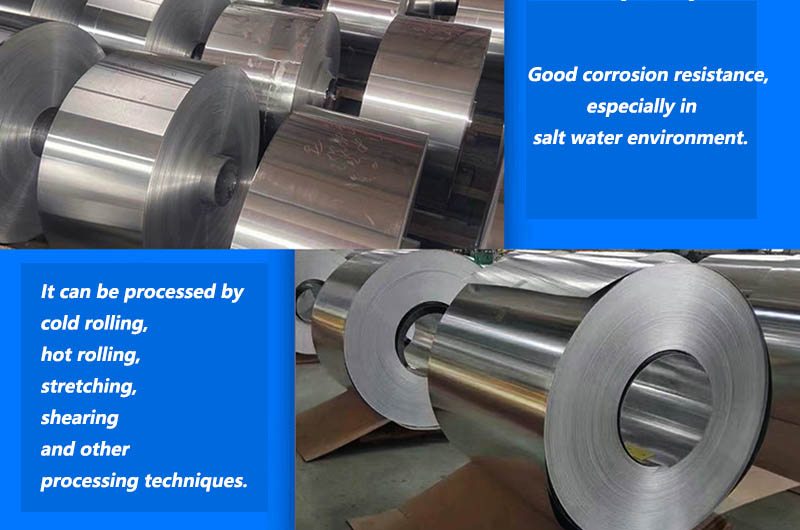

3104 Aluminum Coil Main Features

  • Good corrosion resistance, especially in salt water environment.
  • Excellent processing performance, can be processed by cold rolling, hot rolling, stretching, shearing and other processing techniques.
  • Excellent welding performance, can be welded by conventional argon arc welding, arc welding, laser welding and other methods.
  • Moderate strength and plasticity can meet the requirements of various applications.

Mechanical Properties of 3104 Aluminum Coil (in H19 temper)

Property Value
Tensile strength (MPa) 290 - 330
Yield strength (MPa) 220 - 270
Elongation at break (%) 4 - 6
Modulus of elasticity (GPa) 70 - 80
Hardness (HB) 85 - 105

3104 aluminum coil is an aluminum-manganese alloy. This product has good deep drawing performance, appropriate elongation, good corrosion resistance and processing performance. It can be smelted and processed into alloy states of different hardness according to different application requirements.

Temper Tensile Strength (Rm / MPa) Elongation (%)
3104 O 155-200 60
3104 H14
3104 H24
220-260 180
3104 H16
3104 H26
240-285 200
3104 H18 200 230

3104 Aluminum Coil Specifications

The specifications of 3104 aluminum coils can be customized according to customer requirements. The common specifications are as follows :

Alloy 3104 aluminum coil
Temper O, H12, H14, H16, H18, H19
Width 100-1600mm
Length According to customization
Thickness 0.2-6m
Surface color, anodized, pvc coated
Color Red, white, black, blue, green etc
Equivalent name a3104, 3104a, al3104, aa3104, 3104 aa, aa 3104 grade etc
Surface Treatment Mill finish, polished, anodized, color coated, embossed
Standard production ASTM-B-209M, BS EN 485-2, BS EN 573-3, GB/T3880-2008

It should be noted that the performance and application range of 3104 aluminum coils are also affected by factors such as surface treatment, state, and processing technology. Which specification and state of 3104 aluminum coil to choose should be selected according to actual use requirements and process requirements.

3104 aluminum coil Specifications

3104 Aluminum Coil Applications

3104 aluminum coils are used for can lid materials: 3104 aluminum coils have the characteristics of good metallurgical quality, high dimensional accuracy, small thickness fluctuations, good stamping performance, excellent surface quality and mechanical properties, and are made of 3104h19 aluminum plates The can lid material is suitable for all cans except sparkling beverages, such as pet food, canned beef, rice pudding, etc.

3104 aluminum coil is used for color-coated aluminum coil: The base material of color-coated aluminum coil is 3104 aluminum coil, which has the characteristics of good coloring effect and strong adhesion. It is widely used in the construction industry, interior decoration, electronic product casings, road signs and other fields.

3104 aluminum coils are mainly used for processing pressure vessels, pipes, appliances, heat sinks, radiators, makeup boards, copier rollers, ship materials, aluminum holes, aluminum cans, and bulb covers.

  • Manufacture of automotive components such as car bodies, fuel tanks, tanks, water tanks, etc.
  • Manufacture building shells, roofs, siding, and more.
  • Manufacture of decorative materials, electrical casings, etc.

3104 Aluminum Coil Key Application Introduction

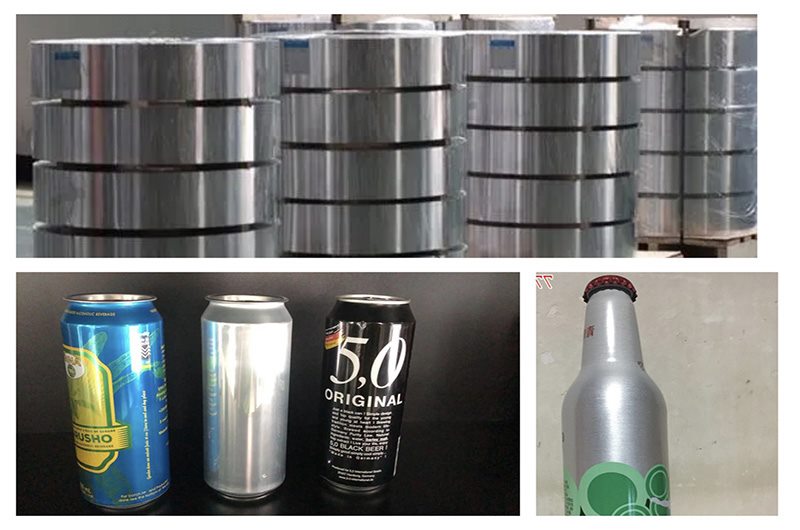

3104 Aluminum Coil Canned Food Packaging

3104 aluminum coils can be used to produce various canned foods, such as cola, beer, juice, beverages, etc. Since the 3104 aluminum coil has good corrosion resistance, it can effectively protect the food from the external environment, and at the same time maintain the freshness and taste of the food.

Canned food : 3104 aluminum coils are usually used to produce shells of canned foods such as beverages, beer, juices, etc., as well as accessories such as can lids and pull rings. The components of these canned foods require strength, corrosion resistance and airtightness. In general, the specifications of 3104 aluminum coils are between 0.2mm-0.5mm in thickness and over 800mm in width.

Cans Body Aluminum Coil 3104

3104 aluminum coils can also be used to produce various beverage cans, such as Coca-Cola, Pepsi, Sprite, etc. Beverage cans need to be strong and airtight while maintaining the freshness and taste of the food. 3104 aluminum coil can meet these requirements through processing technology.

Beverage cans : 3104 aluminum coils are used to produce various beverage cans, such as Coca-Cola, Pepsi, Sprite, etc. Beverage cans need to be strong and airtight while maintaining the freshness and taste of the food. In general, the specifications of 3104 aluminum coils are between 0.2mm-0.5mm in thickness and over 800mm in width.

Cans Body Aluminum Coil 3104

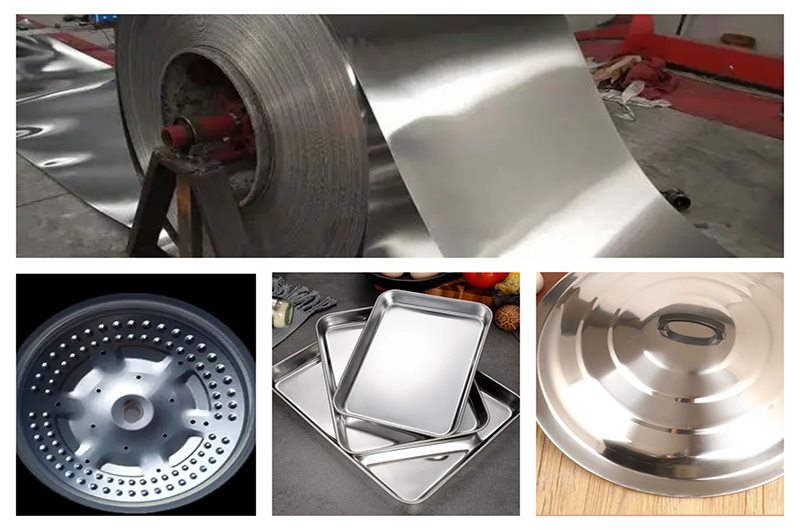

3104 Aluminum Coil For Kitchenware

Kitchen utensils : 3104 aluminum coils are used to manufacture various kitchen utensils, such as pots, pot covers, baking pans, etc. Because 3104 aluminum coil has excellent processing performance and good thermal conductivity, it can make kitchen utensils have a better use experience. In general, the specifications of 3104 aluminum coils are between 0.2mm-2.0mm in thickness and over 800mm in width.

3104 aluminum coils can be used to make various kitchen utensils, such as pots, pot covers, baking pans, etc. Because 3104 aluminum coil has excellent processing performance and good thermal conductivity, it can make kitchen utensils have a better use experience.

3104 Aluminum Coil For Kitchenware

3104 Aluminum Coil Building Decoration

3104 aluminum coils can be used to produce various architectural appearance materials, such as wall panels, roofs, door and window frames, etc. Due to the excellent corrosion resistance and surface treatment performance of 3104 aluminum coil, it can maintain the beauty and durability of the material for a long time in the outdoor environment.

Building appearance materials : 3104 aluminum coils are used to produce various building appearance materials, such as wall panels, roofs, door and window frames, etc. Due to the excellent corrosion resistance and surface treatment performance of 3104 aluminum coil, it can maintain the beauty and durability of the material for a long time in the outdoor environment. In general, the specifications of 3104 aluminum coils are between 0.2mm-2.0mm in thickness and over 800mm in width.

3104 Aluminum Coil Packaging Materials

3104 aluminum coils can be used to produce various packaging materials, such as tobacco packaging, pharmaceutical packaging, cosmetic packaging, etc. Since the 3104 aluminum coil can be surface treated and coated, it can meet the various requirements of different industries for packaging materials.

Packaging materials : 3104 aluminum coils are used to produce various packaging materials, such as tobacco packaging, pharmaceutical packaging, cosmetic packaging, etc. Since the 3104 aluminum coil can be surface treated and coated, it can meet the various requirements of different industries for packaging materials. In general, the specifications of 3104 aluminum coils are between 0.2mm - 2.0mm in thickness and over 800mm in width.

other applications

  • 3104 H48 aluminum coil for beverage can end
  • 3104 alloy aluminum coils for Cooking Utensils
  • 3104 h19 aluminum coils for blinds
  • Aluminum coil 3104 H19 for the lid (bottom) of cans
  • a3104-h19 aluminum alloy coils
  • aluminium 3104 sheet roll for Oxidizing Materials
  • aluminium coil roll 3104 for Lamp Cap
  • aluminium coils 3104 for Car Fuel Tank
  • aluminium grade 3104- h19 sheet roll
  • aluminium roll 3104 for containers
  • aluminum coil 3104 alloy for construction materials
  • aluminum coil 3104 for Metal Sheet Pressure Vessels
  • aluminum coil 3104 for packaging
  • aluminum coil 3104 h19 for can body
  • 3104 aluminum coils Color Coated Aluminum Substrate
  • aluminum sheet 3104 coil for mobile phone battery shell
  • coil aluminum 3104 for Lightweight Automobile Pipes
  • coil aluminium alloy aa3104 for electronic parts

Chemical Composition of 3104 Aluminum

Element Content (% by weight)
Si 0.50 - 0.80
Fe 0.8 max
Cu 0.20 max
Mn 0.8 - 1.3
Mg 0.8 - 1.3
Cr 0.05 - 0.25
Zn 0.25 max
Ti 0.10 max
Al Remainder
