3004 aluminum coil is a common aluminum alloy coil, mainly composed of aluminum, magnesium and a small amount of other alloying elements. It has excellent corrosion resistance, processability and welding performance, and is often used in the manufacture of industrial parts such as automobile bodies, fuel tanks, tanks, and building shells.

  • Processing: As an aluminum alloy, 3004 aluminum coil has excellent processability.
  • Heat treatment: Like 3003, 3004 aluminum coil cannot be heat treated.
  • Welding: This alloy has good weldability.

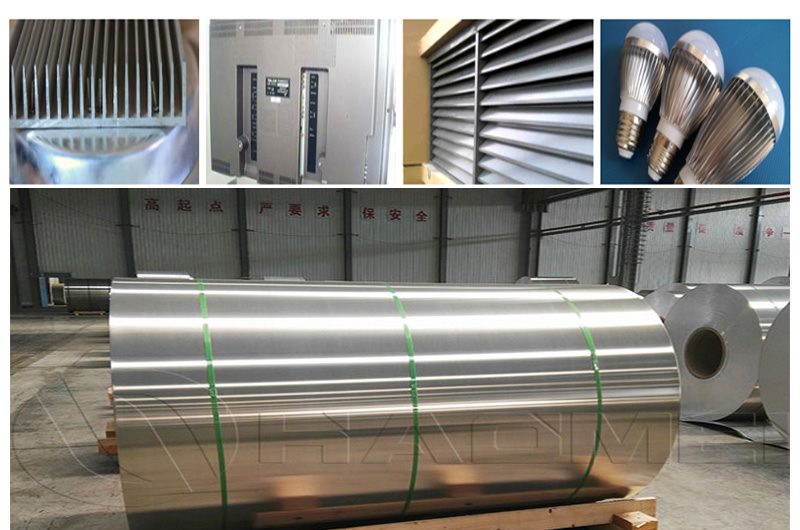

3004 aluminum coil

The performance and application range of 3004 aluminum coils are also affected by factors such as specifications, conditions, and surface treatments. Which specification and state of 3004 aluminum coil to choose should be selected according to actual use requirements and process requirements.

3004 Aluminum Coil Specifications

  • Thickness : 0.2mm - 6.0mm
  • Width : 100mm - 2600mm
  • Length : can be customized according to customer needs
  • Status : H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38

It should be noted that the specifications of 3004 aluminum coils produced by different manufacturers may be different, and the specific specifications need to be confirmed with the manufacturer.

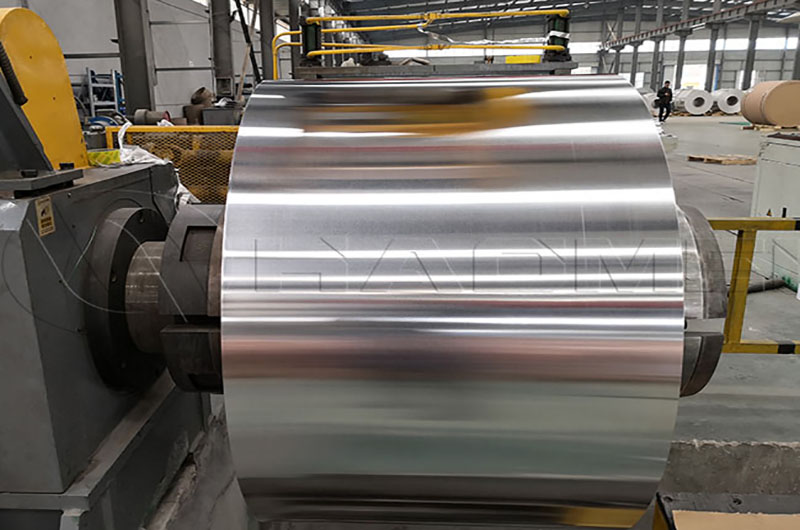

3004 Aluminum Coil Specifications

3004 Aluminum Coil Advantages

  • Good weldability
  • High corrosion resistance
  • Good plasticity
  • Formability and solubility are also quite good
  • Medium strength

The main disadvantage of 3004 aluminum coil is that it is not heat treatable.

Features of 3004 Aluminum Coil

  • 1.3004 aluminum alloy can be cold worked (but not heat treated like other types of aluminum alloys) to produce a tempered state with higher strength but lower ductility.
  • 2.3004 aluminum is usually rolled and extruded (for making beverage cans), but is not usually forged. As a forging alloy, it is not used for casting.
  • 3.3004 aluminum coil has higher plasticity in the annealed state, better plasticity in the semi-cold hardened state, and lower plasticity in the cold hardened state. The anodized 3004 aluminum plate surface has enhanced corrosion resistance and can present a rich and colorful color.

Equivalents of AA 3004

UNS A93004, ISO AlMn1Mg1, Aluminium 3004, AA3004, Al3004

3004 Aluminum Coil Manufacturer Product Quality

  • Advanced production technology and equipment : Adopt advanced production technology and equipment to produce high-quality 3004 aluminum coils to ensure the accuracy and stability of the thickness, width and surface quality of aluminum coils.
  • High-quality Raw Materials : Use high-purity, low-impurity aluminum as raw materials to ensure the physical properties and corrosion resistance of aluminum coils.
  • Strict Quality Control : Strictly control every link in the whole production process, including material procurement, production process, quality inspection and other aspects.
  • Perfect after-sales Service : provide perfect after-sales service, including responding to and solving customer problems in a timely manner.

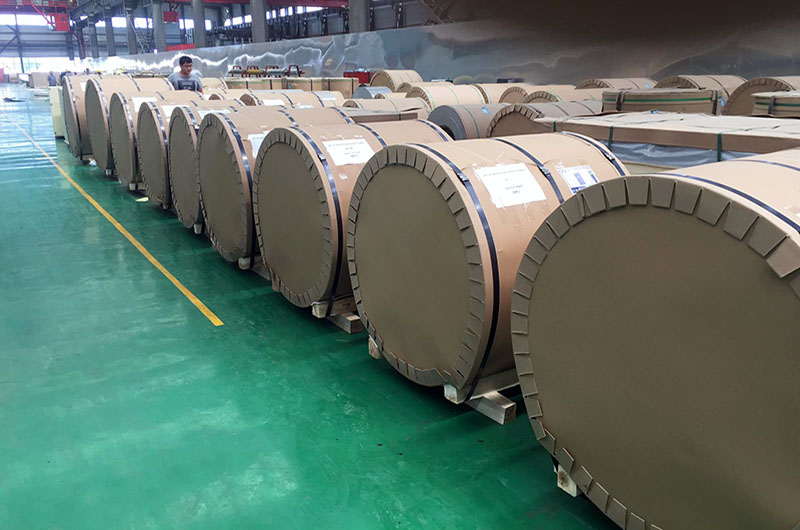

3004 Aluminum Coil Packing

Typical Mechanical Properties Data of Aluminum 3004

Alloy-Temper Tensile Strength
(ksi) 		Yield Strength
(ksi) 		Elongation
(%)
3004-O 26 10 19
3004-H34 39 29 5
3004-H38 41 36 4

Aluminum Coil 3004 Mechanical Properties

Temper Specified Thickness(in) Tensile Strength - KSI Elongationin 2 inches %
Ultimate Yield
Min Max Min Max
H22/32 0.017 - 0.019 28 35 21 - 1
H22/32 0.020 - 0.031 28 35 21 - 3
H22/32 0.032 - 0.050 28 35 21 - 4
H22/32 0.051 - 0.113 28 35 21 - 5
H22/32 0.114 - 2.000 28 35 21 - 6
H24/34 0.009 - 0.019 32 38 25 - 1
H24/34 0.020 - 0.050 32 38 25 - 3
H24/34 0.051 - 0.113 32 38 25 - 4
H24/34 0.114 - 1.000 32 38 25 - 5
H26/36 0.006 - 0.007 35 41 28 - -
H26/36 0.008 - 0.019 35 41 28 - 1
H26/36 0.020 - 0.031 35 41 28 - 2
H26/36 0.032 - 0.050 35 41 28 - 3
H26/36 0.051-0.162 35 41 28 - 4
H28/38 0.006 - 0.007 38 - 31 - -
H28/38 0.008 - 0.019 38 - 31 - 1
H28/38 0.020 - 0.031 38 - 31 - 2
H28/38 0.032 - 0.050 38 - 31 - 3
H28/38 0.051 - 0.128 38 - 31 - 4
O 0.006 - 0.007 22 29 8.5 - -
O 0.008 - 0.019 22 29 8.5 - 10
O 0.020 - 0.031 22 29 8.5 - 14
O 0.032 - 0.050 22 29 8.5 - 16
O 0.051 - 0.249 22 29 8.5 - 18
O 0.250 - 3.000 22 29 8.5 - 16

3004 Aluminum Coil More Informations

Property Description
Principal Design Features This is an alloy of aluminum with magnesium and manganese. It is strengthened (hardened) by cold work only as it does not respond to heat treatment, other than annealing.
Machinability The machinability of this alloy is considered to be excellent, especially in the hard temper. As is typical of the aluminum alloys an oil lubricant should be used for machining, although light cuts may be done dry.
Forming AL 3004 is easily formed by either cold or hot working with conventional tooling.
Welding The alloy is weldable by the standard methods. Best results are obtained by use of TIG or MIG welding with the same alloy as filler rod.
Heat Treatment Heat treatment has no effect upon this alloy. It may be annealed after cold working however.
Hot Working The hot working range (as for forging) is 260°C to 483°C. In that range the alloy is easily hot worked.
Cold Working Cold working capability of this alloy is good: it can readily be cold worked up to a 75% reduction of area by conventional methods. Working beyond the 75% reduction requires an intermediate anneal.
Annealing Annealing, during or following cold working, is done at 344°C, allowing adequate time for thorough heating, followed by air cooling.
Aging Not applicable to this alloy.
Hardening Cold working is the only means of producing the harder (H) tempers of this alloy.

3004 Aluminum Coil Physical Data

Property Value
Density (20°C) 2, 720 kg/m³
Melting Point 629°C
Thermal Expansion (20°C ~ 100°C) 23.2 x 10⁻⁶ /K
Modulus of Elasticity 70 GPa
Thermal Conductivity (Temper O) 162 W·m⁻¹·K⁻¹
Electrical Resistivity (Temper O) 0.041 x 10⁻⁶ Ω·m
Conductivity (Temper O) 42 %IACS
Magnetic Performance No
Color Silver
Odour No

3004 Aluminum Coil Tolerance on Forms and Dimensions

3004 Aluminum Coil Thickness Tolerance

Thickness Width ≤1000mm Width >1000-1250mm Width >1250-1600mm Width >1600-2000mm
≥ 0.2-0.4mm ± 0.02mm ± 0.04mm ± 0.05mm ± 0.05mm
> 0.4-0.5mm ± 0.03mm ± 0.04mm ± 0.05mm ± 0.06mm
> 0.5-0.6mm ± 0.03mm ± 0.05mm ± 0.06mm ± 0.07mm
> 0.6-0.8mm ± 0.03mm ± 0.06mm ± 0.07mm ± 0.08mm
> 0.8-1.0mm ± 0.04mm ± 0.06mm ± 0.08mm ± 0.09mm
> 1.0-1.2mm ± 0.04mm ± 0.07mm ± 0.09mm ± 0.10mm
> 1.2-1.5mm ± 0.05mm ± 0.08mm ± 0.10mm ± 0.11mm
> 1.5-1.8mm ± 0.06mm ± 0.09mm ± 0.11mm ± 0.12mm
> 1.8-2.0mm ± 0.08mm ± 0.10mm ± 0.12mm ± 0.13mm
> 2.0-2.5mm ± 0.10mm ± 0.12mm ± 0.15mm ± 0.16mm
> 2.5-3.0mm ± 0.12mm ± 0.15mm ± 0.17mm ± 0.18mm
> 3.0-4.0mm ± 0.14mm ± 0.18mm ± 0.20mm ± 0.22mm
> 4.0-6.0mm ± 0.18mm ± 0.22mm ± 0.24mm ± 0.25mm

3004 Aluminum Coil Width Tolerance

Thickness Width ≤300mm Width >300-500mm Width >500-1250mm Width >1250-1650mm Width >1650mm
≥ 0.2-0.6mm ± 0.4mm ± 0.6mm ± 1.5mm ± 2.5mm ± 3.0mm
> 0.6-1.0mm ± 0.5mm ± 0.8mm ± 1.8mm ± 2.8mm ± 3.3mm
> 1.0-2.0mm ± 0.7mm ± 1.0mm ± 2.0mm ± 3.0mm ± 3.5mm
> 2.0-3.0mm ± 1.0mm ± 1.5mm ± 2.5mm ± 3.5mm ± 4.0mm
> 3.0-6.0mm ± 1.5mm ± 2.0mm ± 3.0mm ± 4.0mm ± 5.0mm

3004 Aluminum Coil Length Tolerance

Thickness Length ≤1000mm Length >1000-2000mm Length >2000-3000mm Length >3000mm
≥ 0.2-3.0mm ± 3mm ± 4mm ± 6mm ± 8mm
> 3.0-6.0mm ± 4mm ± 6mm ± 8mm ± 10mm

3004 Aluminum Coil Flatness Tolerance

Thickness Total Deviation On Length On Width Partial Deviation
≥ 0.2-0.5mm By agreement By agreement By agreement By agreement
> 0.5-3.0mm ≤ 0.4% ≤ 0.5% ≤ 0.5% ≤ 0.5%
> 3.0-6.0mm ≤ 0.3% ≤ 0.4% ≤ 0.4% ≤ 0.4%

3004 Aluminum Coil Lateral Curvature Tolerance

Width ≤1000mm >1000-2000mm >2000-3500mm >3500mm
≤300mm ≤ 2.0mm ≤ 4.0mm ≤ 8.0mm -
>300-600mm ≤ 1.5mm ≤ 3.0mm ≤ 5.0mm -
>600-1000mm ≤ 1.0mm ≤ 2.0mm ≤ 4.0mm ≤ 5.0mm
>1000-2000mm - ≤ 2.0mm ≤ 4.0mm ≤ 5.0mm
>2000mm - - ≤ 4.0mm ≤ 5.0mm

3004 Aluminum Coil Squareness Tolerance

Length ≤1000mm >1000-1500mm >1500-2000mm >2000mm
≤1000mm ≤ 4.0mm - - -
>1000-2000mm ≤ 4.0mm ≤ 5.0mm - -
>2000-3000mm ≤ 5.0mm ≤ 5.8mm ≤ 7.0mm -
>3000-5000mm ≤ 6.0mm ≤ 7.0mm ≤ 8.0mm ≤ 10.0mm

3004 Aluminum Coil Applications

Lamp material, louver material, heat sink, liquid crystal back panel material, bottle cap material, aluminum base material for color coating, etc.

  • Building and construction : 3004 aluminum coils are used for building exterior wall panels, roof panels, ceilings, wall panels and skylights, etc.
  • Electronics : 3004 aluminum coils are used to manufacture electronic product casings, heat spreaders and heat sinks, etc.
  • Packaging : 3004 aluminum coils are used to manufacture various packaging, such as beverage cans, food cans and pharmaceutical cans.
  • Automotive and transportation : 3004 aluminum coils are used in the manufacture of automotive parts such as doors, roofs and hoods.
  • Furniture and home decoration : 3004 aluminum coils are used in the manufacture of various furniture and home decoration products such as tables, chairs, lamps and decorative panels, etc.
  • Other applications : 3004 aluminum coils are also used in shipbuilding, chemical equipment, household appliances, mechanical equipment and manufacturing handicrafts and other fields.

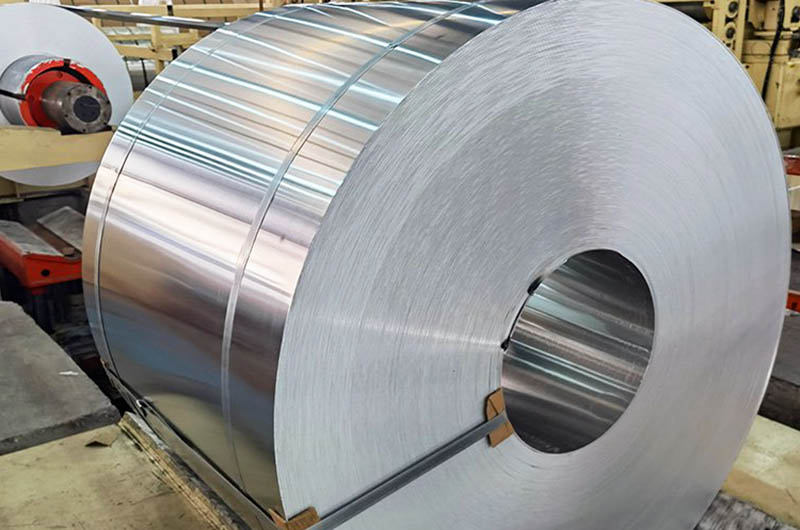

3004 Aluminum Coil Application

3004 Aluminum Chemical Composition

element Si Fe Cu Mn Mg Cr Zn Ti Others-Each Others Total Al Min
3004 0.30 0.7 0.25 1.0-1.5 0.8-1.3 – 0.25 0.25 0.05 0.15 Remainder

3004 Aluminum Coil VS 3003 Aluminum Coil

Both 3004 aluminum coil and 3003 aluminum coil are aluminum alloy coils, which are often used in the manufacture of industrial components such as vehicle bodies, tanks, building shells, and fuel tanks.

Chemical Composition

3004 aluminum coils contain 1% magnesium, while 3003 aluminum coils do not contain magnesium. Therefore, 3004 aluminum coil has better corrosion resistance, weldability and processing performance than 3003 aluminum coil.

Strength

The strength of 3004 aluminum coil is slightly higher than that of 3003 aluminum coil, but its plasticity is slightly lower. Therefore, 3004 aluminum coils can be selected for occasions that require high strength but less plasticity; and 3003 aluminum coils can be selected for occasions that require high plasticity but less strength.

Question Answer
What is the difference between 3003 and 3004 aluminum? The main difference is in alloy composition; 3004 has higher manganese content for improved strength and corrosion resistance compared to 3003.
What is aluminum alloy Al 3004? Aluminum alloy 3004 is used in beverage cans and containers due to its strength, formability, and corrosion resistance.
Is 3004 aluminum weldable? Yes, 3004 aluminum is weldable using conventional methods such as MIG and TIG welding.
Is 3003 aluminum heat treatable? No, 3003 aluminum is not heat treatable; its properties are set during casting and cannot be changed by heat treatment.
Can 3004 Aluminum Coil Be Anodized? Certain types of aluminum alloy react better to anodization than others. Aluminum coil 3004 contains manganese, so it can be anodized. However, the manganese typically causes discoloration during the anodization process.

3004 Aluminum Coil Packaging Handling Storage

Category Description
Package Packed in waterproof Kraft, fastened by steel straps on wood pallets, suitable for handling, loading and unloading from the trunks or containers, suitable for export ocean forwarding.
Handling Prevent the goods hurting the people who are moving, loading, unloading, especially pay attention to the rolling and dropping for the coils.
Storage Stored in indoor area on plain floor, free away from moisture, water, snow, animal oils and dye wastes, avoid storing with acid or basic chemical goods.
