2014 Aluminum Plate Sheet

Temper : T6 T651 T4 Complete specifications and reasonable price

We conduct rigorous testing on each 2014 aluminum panel to ensure it is up to standard.

Table of Contents
  1. 2014 Aluminum Plate Specifications
  2. 2014 Aluminum Plate Mechanical Properties
  3. Typical 2014 Aluminum Plate
    1. 2014 T4 Aluminum Plate
    2. 2014 T6 Aluminum Plate
    3. 2014 T651 Aluminum Plate
    4. 2014 T6511 Aluminum Plate
  4. 2014 Aluminum Applications
    1. Aerospace Grade 2014 Aluminum Plate
    2. 2014 Aluminum for Transportation Industry
    3. 2014 Marine Aluminum Plate
    4. Industrial Application
    5. 2014 Aluminum for Sports Equipment
  5. 2014 Aluminum Plate Chemical Composition

2014 aluminum is a high-performance metal capable of withstanding harsh environments. 2014 Aluminum Sheet is an excellent choice for applications requiring high strength, toughness and durability due to its outstanding properties and wide range of applications.

2014 Aluminum Sheet Plate

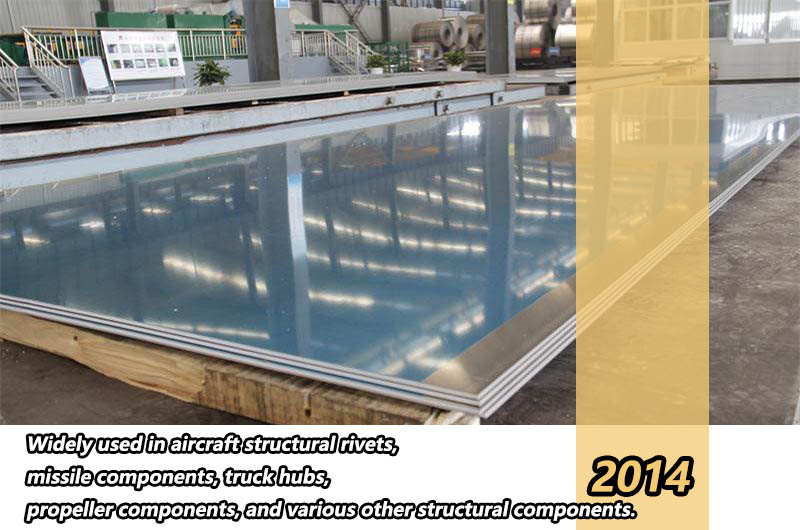

The alloy element of 2014 is copper, known as hard molybdenum, which has high strength and good cutting performance, but poor corrosion resistance. It is widely used in aircraft structures (skin, frame, rib beam, partition frame, etc.) rivets, missile components, truck wheels, propeller components, and various other structural components.

  • The high strength-to-weight ratio makes it ideal for the aerospace and transportation industries.
  • Machinability and corrosion resistance make it a popular choice for sports equipment and mechanical components.

2014 Aluminum Plate Specifications

  • Thickness : 0.2mm-6mm
  • Width : 600mm- 2000mm
  • Length : 2000mm- 6000mm
  • Status : T3, T6 and T651
  • Surface : Mill finish, Bright finish, paper interleaved, one side film, both sides film.
  • Eq 2014 : UNS A92014, ISO AlCu4SiMg, Aluminum 2014, AA2014, Al2014
  • Standard : ASTM B209, EN573, EN485

2014 Aluminum Plate Mechanical Properties

Property Value
Tensile Strength 380-450 MPa (55-65 ksi)
Yield Strength 240-310 MPa (35-45 ksi)
Elongation 12-16%
Brinell Hardness 95-145 HB
Shear Strength 310 MPa (45 ksi)
Fatigue Strength 150 MPa (22 ksi) (at 500 million cycles)
Modulus of Elasticity 73.1 GPa (10.6 Msi)
Material Temper Thickness (mm) Tensile Strength min (N/mm²) Yield Strength min (N/mm²)
Alloy 2014 Sheet T4 Bare 0.2-6.0 400 225
Alloy 2014 Sheet T6 Bare 0.2-6.0 440 380
Alloy 2014 Sheet T4 Clad 0.2-1.6 385 240
Alloy 2014 Sheet T4 Clad 1.6-6.0 395 245
Alloy 2014 Sheet T6 Clad 0.2-1.6 420 345
Alloy 2014 Sheet T6 Clad 1.6-6.0 420 355

Typical 2014 Aluminum Plate

2014 T4 Aluminum Plate

2014 T4 Temper with lower strength and higher ductility and toughness than T6 temper, suitable for applications requiring good formability and lower strength.

Property Value
Ultimate Tensile Strength (UTS) 325 MPa (47 ksi)
Yield Strength 170 MPa (25 ksi)
Elongation 12%
Modulus of Elasticity 73.1 GPa (10, 600 ksi)
  • Features : Good formability, high toughness, lower strength compared to other tempers.
  • Ideal for : Automotive, heavy machinery, construction and other applications where formability and toughness are important
  • Specific Applications : Auto and truck frames, hydraulic cylinders, structural components, and other applications requiring good formability and toughness

2014 T4 Aluminum Plate

2014 T6 Aluminum Plate

2014 T6 has the highest strength and hardness of all tempers, lower ductility and toughness, and is suitable for applications requiring high strength and hardness.

Property Value
Ultimate Tensile Strength (UTS) 470 MPa (68 ksi)
Yield Strength 415 MPa (60 ksi)
Elongation 10%
Modulus of Elasticity 73.1 GPa (10, 600 ksi)
  • Ideal for : Aerospace, marine, heavy machinery and other applications where high strength and stiffness are important.
  • Specific Applications : Aerospace structures, highly stressed mechanical parts, marine applications, and other applications requiring high strength and stiffness

2014 T651 Aluminum Plate

2014 T651 Slightly lower toughness compared to T6 temper, improved machinability compared to T6 temper, suitable for applications requiring high strength and good machinability

Property Value
Ultimate Tensile Strength (UTS) 455 MPa (66 ksi)
Yield Strength 360 MPa (52 ksi)
Elongation 10%
Modulus of Elasticity 73.1 GPa (10, 600 ksi)
  • Features : high strength, good machinability
  • Fields of application : ships, heavy machinery.
  • Specific applications : marine applications, structural parts and other applications requiring high strength and good machinability

2014 T651 Aluminum Plate

2014 T6511 Aluminum Plate

2014 T6511 has increased strength and machinability compared to T651 temper and is suitable for applications requiring increased strength and machinability

Property Value
Ultimate Tensile Strength (UTS) 480 MPa (70 ksi)
Yield Strength 430 MPa (62 ksi)
Elongation 10%
Modulus of Elasticity 73.1 GPa (10, 600 ksi)

Specific application examples : Ship structures, structural components and other applications requiring increased strength and machinability.

可能你想看

2014 Aluminum Applications

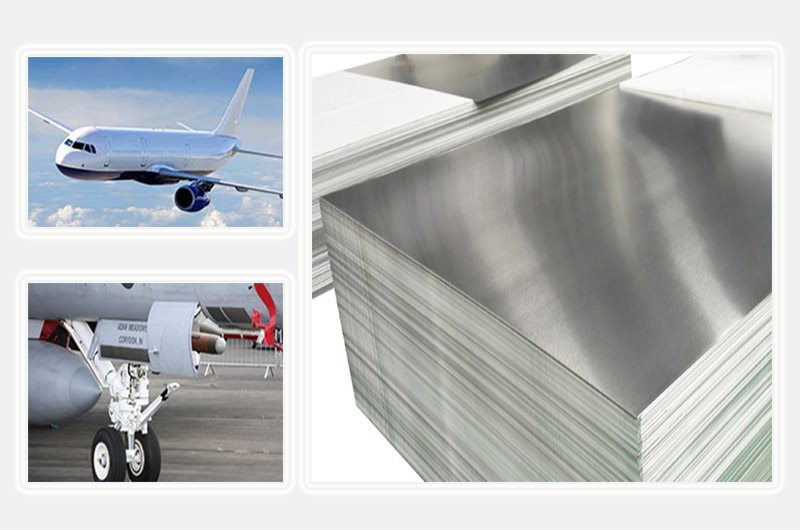

Aerospace Grade 2014 Aluminum Plate

In the aerospace industry, 2014 aluminum sheet offers the highest strength and stiffness.

  • Status : T6
  • Advantages : high strength to weight ratio, good fatigue resistance and excellent corrosion resistance, very suitable for the construction of aircraft structural parts.
  • Applications : Used in the manufacture of a variety of aircraft structural components, including wing and fuselage skins, wing ribs and landing gear components.

Click to learn more aboutAerospace Aluminum Plate

Aerospace Grade 2014 Aluminum Plate

2014 Aluminum for Transportation Industry

In the transportation industry, 2014 aluminum plate provides good strength and toughness.

  • Status : T4 or T6
  • Advantages : High strength-to-weight ratio, which helps reduce fuel consumption and improve overall vehicle performance, as well as good corrosion resistance and durability.
  • Applications : Used in the construction of a variety of transportation vehicles including truck and trailer frames, bus bodies and railroad cars.

2014 Marine Aluminum Plate

In the marine industry, 2014 aluminum plate offers the highest strength and stiffness.

  • Status : T6
  • Advantages : Excellent corrosion resistance in seawater, helping to reduce maintenance costs and extend the life of marine vessels.
  • Application : Used in the construction of various marine vessels, including offshore structures such as boats, ships and oil drilling platforms.

Click to learn more aboutMarine Grage Aluminum Plate

Industrial Application

In industrial applications, 2014 aluminum sheet is usually in the T6 temper, which provides the highest strength and hardness.

  • Status : T6
  • Advantages : High strength and toughness, which makes it ideal for heavy-duty applications requiring resistance to wear, corrosion and fatigue.
  • Application : Ideal for heavy industrial applications such as pressure vessels, hydraulic systems and machine parts.

2014 Aluminum for Sports Equipment

In the sports equipment industry, 2014 aluminum sheet is used to produce a variety of sports equipment, including bicycle frames, baseball bats, and hockey sticks.

  • Status : T6
  • Benefits : Its lightweight and high-strength properties contribute to overall athletic performance and durability.

2014 Aluminum Plate Chemical Composition

Element Composition Range (wt. %)
Aluminum (Al) 90.7%
Copper (Cu) 4.5-5.6%
Silicon (Si) 0.50-0.90%
Iron (Fe) 0.50% max
Manganese (Mn) 0.40-1.2%
Magnesium (Mg) 0.20-0.8%
Chromium (Cr) 0.10% max
Zinc (Zn) 0.25% max
Titanium (Ti) 0.15% max
Other elements 0.15% max (each), 0.05% max (total)
