1060 Aluminum Strip is a versatile material with a wide variety of applications. Its excellent formability, high electrical and thermal conductivity, good corrosion resistance and lightweight properties make it a popular choice for many industries, including electrical, electronics, transportation and construction.
1060 Aluminum Strip is a commercially pure aluminum alloy containing 99.6% aluminum. It is one of the most commonly used aluminum alloys due to its excellent formability, high electrical and thermal conductivity, and good corrosion resistance.
With years of production experience, Haomei Aluminum specializes in producing a variety of high-quality aluminum strips, among which the hot-selling aluminum strips include:
- 1050 Aluminum Strip
- 1060 Aluminum Strip
- 1070 Aluminum Strip
- 1100 Aluminum Strip
- 3003 Aluminum Strip
- 5052 Aluminum Strip
- 3004 Aluminum Strip
- 5005 Aluminum Strip
Specifications of 1060 aluminium strip coil
| Equivalent 1060 Aluminum | a1060, 1060a, aa1060, 1060aa, al1060, al1060a, a 1060, aa 1060, jis a1060p, al1060 class, aw1060, en1060 grade etc |
| Temper | Soft HO (h0), H11, H12, H14, H16, H111, H112, H114, etc |
Electrical Properties of 1060 Aluminum Strip
| Property | Value |
|---|---|
| Electrical conductivity | About 61% IACS |
| Electrical resistivity | 0.0282 ohm-meters at 20°C |
| Thermal conductivity | 227 W/(m·K) at 25°C |
| Coefficient of thermal expansion | 23.5 x 10^-6/K at 20-100°C |
1060 Aluminum Strip Characteristics
- Formability : 1060 aluminum strip has excellent formability and wide application range. It can be easily made into various shapes and sizes using various techniques such as rolling, stamping and bending.

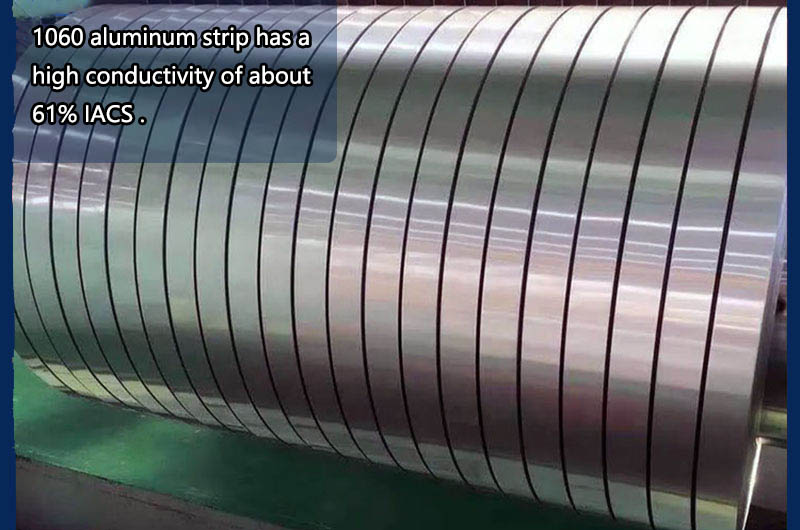

- Conductivity : 1060 aluminum strip has a high conductivity of about 61% IACS and is an excellent electrical conductor. This characteristic makes it particularly suitable for electrical and electronic applications.
- Thermal conductivity : The thermal conductivity of 1060 aluminum strip is very high, about 230 W/mK, which is higher than many other metals. This makes it an excellent thermal conductor and can be used in applications requiring efficient heat transfer.
- Corrosion resistance : 1060 aluminum strip has good corrosion resistance and is suitable for use in harsh environments. It is particularly resistant to atmospheric corrosion, which can cause other metals to degrade over time.
- Lightweight : 1060 aluminum strip is a lightweight material for applications where weight reduction is important. This property makes it particularly useful in the transportation industry, where it can be used to create light vehicles.
Typical 1060 aluminum strip sizes
- 1060 aluminium strip 3mm
- 1060 aluminium strip 1mm
- 1 inch wide aluminum strips
- 2mm 1060 aluminium strip
- 4 inch wide aluminum strips
- 3 inch wide aluminum strips
- 1 2 inch wide aluminum strips
- 2 inch wide aluminum strips
- 1 2 aluminum strip
- 1 4 aluminum strip
- 1 4 inch aluminum strips
- 1 8 aluminum strips
- 1 aluminum strip
- 1 inch aluminum strip
- 10mm 1060 aluminium strip
- 10mm wide aluminium strip
- 15mm aluminium strip
- 1mm thick aluminium strip
- 2 aluminum strip
- 2 inch aluminum strips
- 2 wide aluminum strip
- 20mm 1060 aluminium strip
- 25 x 3 aluminium strip
- 25 x 3 aluminium strip price
- 3 wide aluminum strip
- 40mm aluminium strip
- 4mm aluminium strip
- 5mm aluminium strip
- 6mm aluminium strip
- aluminium l strip
- aluminium strip 0.5 mm
- aluminium strip 15mm
- aluminium strip 1mm thick
- 1060 aluminium strip 20mm
Advantages of 1060 aluminum strip
- 1. The production process of 1060 aluminum strip is relatively simple, the technology is relatively mature, and the price has a huge advantage compared to other high-end alloy aluminum strips.
- 2. It has good elongation and tensile strength, and can fully meet conventional processing requirements (stamping, stretching) and high formability. 3. 1060 aluminum strip has high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, but its strength is low and heat treatment cannot enhance its machinability.
- 3. It can be gas welded, hydrogen atomic welded and contact welded, not easy to braze, and can easily withstand various pressure processing, stretching and bending.
The alloy composition of 1060 aluminium strip
| Alloy | 1060 |
|---|---|
| Aluminium | 99.6% min |
| Copper | 0.05% max |
| Iron | 0.35% max |
| Magnesium | 0.03% max |
| Manganese | 0.03% max |
| Silicon | 0.25% max |
| Titanium | 0.03% max |
| Vanadium | 0.05% max |
| Zinc | 0.05% max |
1060 aluminum strip applications
-
1060 Aluminum Strip for Transformer Winding
1060 aluminum strip has good electrical and thermal conductivity and can be used to make transformer winding materials. Its excellent performance can effectively improve the efficiency and stability of the transformer. At the same time, 1060 aluminum strip can also be used to make the casing of the transformer.
-

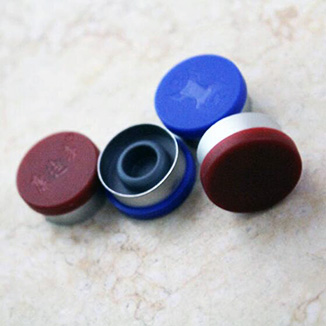

1060 aluminum strip for injection bottle sealing
1060 aluminum strips are easy to manufacture and cheap, so 1060 rubber strips for injection bottles are still common in many countries. Haomei Aluminum can provide color-coated 1060 aluminum strips, with single-sided color and double-sided paint options.
-

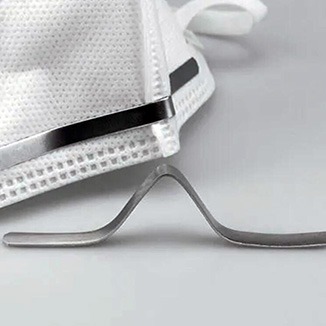

Clip nose bridge strips aluminum 1060
The mask nose bridge aluminum flat strip 1060 is produced by stamping process. It has the characteristics of smooth and clean surface and smooth corners. It does not hurt your hands, has no burrs, does not pull the mask body material, is easy to operate and can be bent into shape, and has excellent breaking force.
-

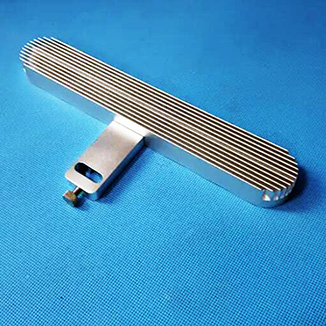

1060 Aluminum Strip for Heat Sink
1060 aluminum strip has good thermal conductivity and can be used to manufacture various radiators, such as computer radiators, LED light radiators, etc. The excellent heat dissipation performance of 1060 aluminum strip can effectively dissipate heat and ensure the normal operation and life of the equipment.
1060 Aluminum Strip vs 1050 Aluminum Strip
Both 1060 aluminum strip and 1050 aluminum strip are pure aluminum alloys with similar performance, but there are some differences :
- Chemical composition : The chemical composition of 1060 aluminum strip and 1050 aluminum strip is slightly different. The copper content in 1060 aluminum strip is higher than that in 1050 aluminum strip, which makes 1060 aluminum strip slightly harder and more durable.
- Mechanical properties : The mechanical properties of 1060 aluminum strip and 1050 aluminum strip are similar, but the tensile strength and elongation of 1060 aluminum strip are slightly higher than that of 1050 aluminum strip.
- Applications : 1050 aluminum strip is commonly used in the electrical and chemical industries, while 1060 aluminum strip is commonly used in the manufacture of automotive components such as heat exchangers and decorative components, as well as roofing and other building components in the construction industry.
- Price : The price of 1050 aluminum strip is slightly lower than that of 1060 aluminum strip, which is due to the difference in chemical composition and mechanical properties.
Both 1060 aluminum strip and 1050 aluminum strip are pure aluminum alloys with similar properties, but there are certain differences in chemical composition, mechanical properties, and application fields. The choice between the two will depend on the specific requirements of the application
